Roland VC-1-DMX Video Lighting Controller
Roland VC-1-DMX Video Lighting Converter, Real-time HDMI to DMX Converter with MIDI/XLR Input
Email me when the availability or price changes
Roland - 'VC-1-DMX Video Lighting Converter'

Dynamic Light ShowsDynamic lighting elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it’s never been easier to bring the impact of a pro light show to any event you put on.
The VC-1-DMX automatically generates control commands for your DMX lighting setup based on input from video and audio sources, eliminating the need for a dedicated lighting operator. Color and brightness change based on the current video image, and lights and mirror balls operate in sync with the music tempo. And if you want to dive deeper, the VC-1-DMX supports external MIDI operation from hardware control surfaces, electronic musical instruments, and computer-based production software.
Synchronised Lighting Made Easy

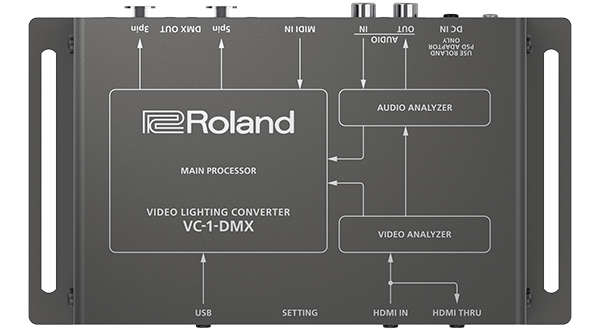

True Synchronised Lighting Made EasyThe VC-1-DMX makes it simple to synchronize video, sound, and lighting and create the unified presentations you see at big events with dedicated lighting operators. Simply connect your sources to the A/V inputs on the VC-1-DMX and let Roland’s advanced technology do all the work. Signals are analysed at lightning speed and sent to the 3-pin and 5-pin DMX outputs, ready for distribution to all your DMX gear.
HDMI and Analog Inputs

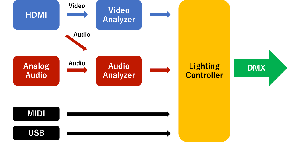

Follows Incoming signals via HDMI and Analog Audio InputsThe VC-1-DMX can receive digital video and sound via HDMI and analog sound through its stereo RCA audio inputs. The powerful processing engine analyses the content to extract colour, brightness, and other information from the video, along with the beat, tempo, volume, and more from the sound.
MIDI to DMX Conversion

Go Further with MIDI ControlIf you want extended control over your system, the VC-1-DMX has you covered with integrated MIDI-to-DMX conversion. Connect a hardware MIDI controller and use MIDI control change messages to adjust a variety DMX parameters such as global dimming, tilt, pan, and more. USB MIDI is also supported, allowing you to control your DMX setup from lighting or music production software on your computer.
512 DMX Channels

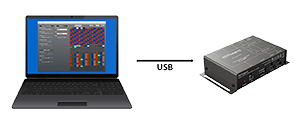

Customize Your RigUsing dedicated editor software on your Mac or Windows computer, you can quickly configure the VC-1-DMX for all your DMX lighting hardware. Freely change assignments across 512 DMX channels to match the control needs of your specific gear.

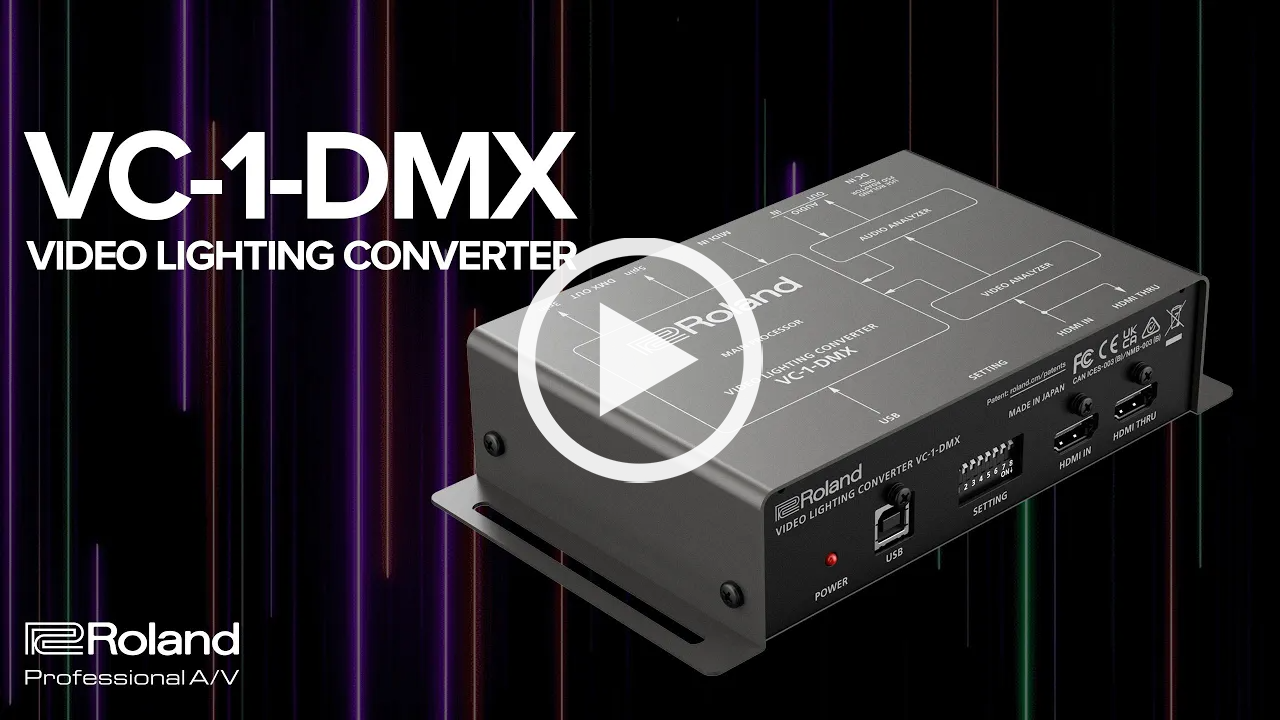

Introducing the Roland VC-1-DMX Video Lighting Converter

VC-1-DMX Specification
Features | Specification | Input Connectors | HDMI IN connector : HDMI type A * HDCP Supported * Multi-format Supported AUDIO IN jacks : RCA phono type |
---|---|
Output Connectors | HDMI THRU connector : HDMI type A AUDIO OUT jacks: RCA phono type DMX OUT 3 pin jack : XLR type (3 pins) DMX OUT 5 pin jack : XLR type (5 pins) |
Video Formats | 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,
720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz),
HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz),
FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz),
UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking |
Digital Audio Format | Linear PCM, 48 kHz, 24 bits, stereo |
Audio Processing | Sample rate : 48 kHz, 24 bits |
Nominal Input Level | AUDIO IN jacks : -10 dBu (Maximum input level : +8 dBu) |
Nominal Output Level | AUDIO OUT jacks : -10 dBu (Maximum input level : +8 dBu) |
Input Impedance | AUDIO IN jacks : 15 k ohms |
Output Impedance | AUDIO OUT jacks : 1 k ohms |
DMX Channel | 512 channels (1 universe) |
Control Terminal | MIDI IN jack USB Port |
Switches | SETTING switch: 8 terminals |
Indicator | POWER indicator |
Functions | Video Synchronized Lighting Control Audio Synchronized Lighting Control MIDI Synchronized Lighting Control Lighting Speed Control HDMI Audio De-embedder |
Power Supply | AC adapter |
Current Draw | 500mA |
Current Consumption | 2.5W |
Operation Temperature | +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit |
Dimensions | 180 (W) x 115 (D) x 41 (H) mm 7-1/8 (W) x 4-9/16 (D) x 1-5/8 (H) inches |
Weight (excluding AC adaptor) | 570 g 1 lb 5 oz |
Accessories | Leaflet "USING THE UNIT SAFELY" Owner's Manual AC Adaptor Roland Registration Card Plug Holder Rubber Feet |
