RODE - NTG5 - Location Recording Kit

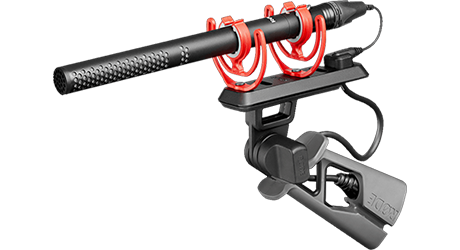

RODE - NTG5 Shotgun Microphone with WS10 Windshield, PG2-R Pistol Grip And Accessories Included
Email me when the availability or price changes
RODE - NTG5
Location Recording Kit
Revolutionary Mic'ingThe RODE NTG5 is an ultra-lightweight professional shotgun microphone, perfect when used in the most demanding recording applications. The NTG5 features a revolutionary acoustic design with a tightly controlled frequency response, smooth off-axis response, and very low self-noise (just 10dBA). This shotgun microphone sounds incredible in a wide range of applications, especially location recording and filmmaking scenarios where superlative audio is imperative.
at a glance
• Revolutionary acoustic design with unmatched acoustic transparency and a natural, uncoloured sound
• Tightly controlled frequency response and very low self-noise
• WS10 windshield, PG2-R pistol grip and accessories included
• Highly directional supercardioid polar pattern
Revolutionary Acoustic Design

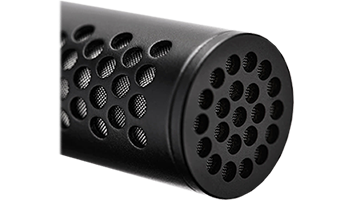

enhanced acoustic transparencyThe evolutionary acoustic design of the RODE NTG5 is different to any other shotgun microphone. Circular acoustic perforations are utilised in place of linear slots, delivering enhanced acoustic transparency and a natural, uncoloured sound for incredible performance in a wide range of recording applications.
A Boom Operator’s Dream
Compact & LightweightThe NTG5 is made of a short, super-lightweight aluminium body weighing just 76g, making it one of the most compact professional shotgun mics available, which is a dream for boom operators who find themselves on long shoots, or filmmakers and sound recordists looking for a more portable and lightweight set up that offers spectacular, broadcast-grade audio.
The Perfect Location Recording Mic
superlative audioWith a tightly controlled frequency response, low self-noise, highly directional supercardioid polar pattern, and smooth off-axis response, the NTG5 sounds incredible in a wide range of applications.
It also features RF-bias technology and conformal coating on the electronics, this protects the microphone from moisture and humidity and ensures it is incredibly reliable even in harsh environmental conditions. The NTG5 is the perfect mic for location recording and demanding filmmaking scenarios where superlative audio is imperative.

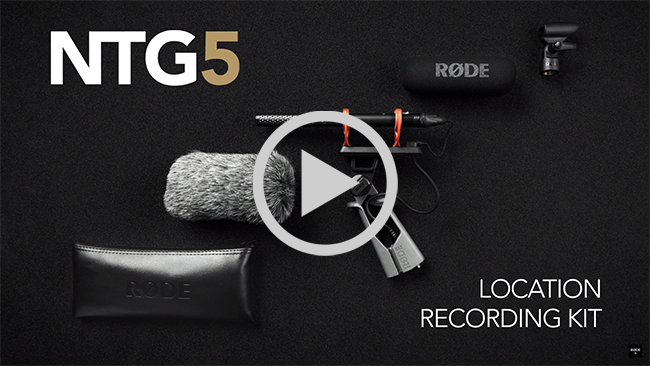

Features & Accessories | NTG5 Location Recording Kit
The Tech Spec
| Features | Specification | Acoustic Principle | RF-bias condenser |
|---|---|
| Active Electronics | RF-bias demodulation |
| Polar Pattern | Supercardioid shotgun |
| Frequency Response | 20 Hz - 20 kHz |
| Frequency Response | 80 Hz - 20 kHz ±3 dB |
| Output Impedance | 25 Ω |
| Signal-to-Noise Ratio | 84 dB |
| Equivalent Noise | 10 dB SPL (A-weighted, as per IEC651) |
| Input SPL @ 1% THD | 130 dB SPL (1kHz @ 1% THD, 600 Ω load) |
| Power Requirements | 2 mA @ 48V phantom power |
| Sensitivity | -23.5 dB re. 1 Volt/Pascal or Better (66 mV @ 94 dB SPL @ 1 kHz) |
| Weight (g) | NTG5: 76 PG2-R: 224 |
| Dimensions (mm) | NTG5: 203 (H) x 19 (W) x 19 (D) PG2-R: 240 (H) x 60 (W) x 117 (D) |
