RODE M5 Matched Pair + RM5 & WS5
Rode M5 PAIR, Condenser Microphone, Cardioid Pattern, Wired, 1x3 Pin XLR
- SCANPROTECT Protect against installation damage for 28 days. More info

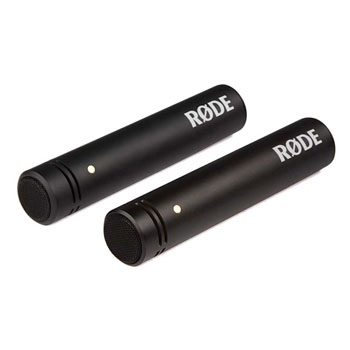

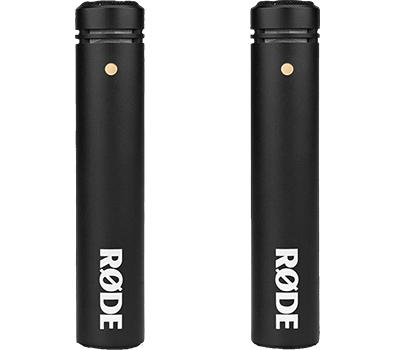

Matched Pair Small-diaphragm Condenser Microphone
RODE - M5 Matched Pair
Matched of pair small-diaphragm cardioid condenser microphonesThe RODE M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for outstanding performance in a wide variety of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere that requires a small-diaphragm ('pencil') condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.
at a glance
• Carefully selected pair with no more than 1dB sensitivity variation
• Very low noise and full frequency response
• Includes microphone clips and windshields
• 1/2-inch gold-sputtered capsules
what's included?
• Carefully selected pair with no more than 1dB sensitivity variation
• Very low noise and full frequency response
• Includes microphone clips and windshields
• 1/2-inch gold-sputtered capsules
The Tech Spec
Features | Specification | Acoustic Principle | Pressure Gradient |
---|---|
Active Electronics | JFET impedance converter with bipolar output buffer |
Polar Pattern | Cardioid |
Frequency Range | 20Hz ~ 20kHz |
Output Impedance | 200Ω |
Equivalent Noise | 19 dBA SPL (as per IEC651) |
Maximum Output Level | +13.5 dBu |
Sensitivity | -34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz |
Dynamic Range | 121 dB SPL |
Maximum SPL | 140 dB SPL |
Signal-to-noise Ratio | 75 dBA SPL (as per IEC651) |
Power Requirements | P24 and P48 |
Output Connection | XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground) |
