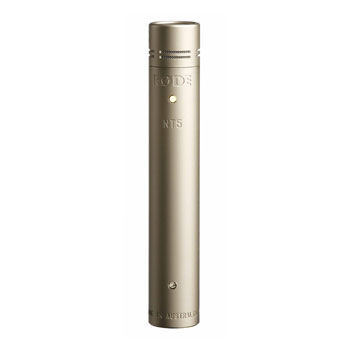

Rode NT-5 Compact Cardioid Condenser Microphone
Rode NT-5 Small Diaghragm Cardioid Condenser Mic, 1/2" Gold Sputtered Capsule, Low Noise, Dual Power Operation
- SCANPROTECT Protect against installation damage for 28 days. More info
Premium Small-diaphragm Condenser Microphone
Rode - NT-5
Accurate sound for different recording applicationsThe Rode NT5 is a premium small-diaphragm condenser microphone designed for critical recording applications. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule, this mic provides a smooth, balanced sound with very low self-noise. Its incredibly accurate cardioid polar pattern and wide frequency response make the NT5 a perfect choice for recording everything from acoustic instruments to drum overheads and cymbals to live performances and dialogue on-location.
143dBMax SPL
20Hz - 20kHzFrequency Range
100ΩImpedance
at a glance
• 1/2-inch gold-sputtered cardioid condenser capsule
• Exceptionally accurate cardioid polar pattern and wide frequency response
• Available as a certified match pair for stereo recording
• Very low self-noise
• 10-year warranty
what's included?
• 1 x NT5 Condenser Microphone
• 1 x ZP1 Zipped Pouch
• 1 x RM5 Mic Clip
• 1 x WS5 Windscreen
The Tech Spec
| Features | Specification | Active Electronics | JFET impedance converter with bipolar output buffer |
|---|---|
| Capsule | 0.50" |
| Polar Pattern | Cardioid |
| Address Type | End |
| Frequency Range | 20Hz - 20kHz |
| Output Impedance | 100Ω |
| Maximum SPL | 143dB SPL |
| Maximum Output Level | 13.9mV (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity | -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-Weighted) | 16dBA |
| Power Requirements | P24 and P48 |
| Output Connection | XLR |
| Weight (g) | 101 |
| Dimensions (mm) | 20 (H) x 118 (W) x 20 (D) |
