RME HDSPe RayDAT Audio Interface Card
RME HDSPe RayDAT Audio Interface Card
Email me when the availability or price changes
Finance this product
- From £18.28 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £13.04 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives

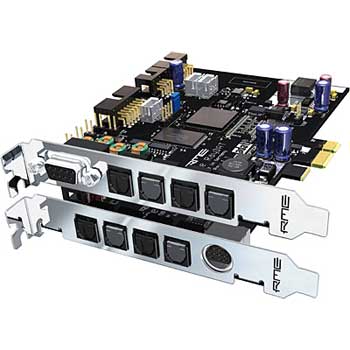

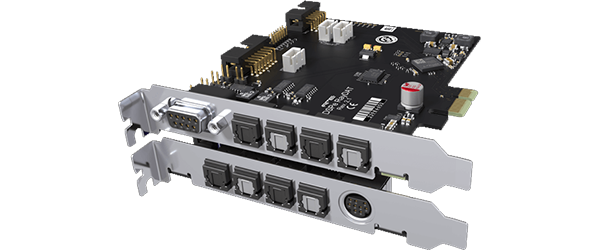

72-Channel PCI Express Card with ADAT, SPDIF and AES I/O
RME - HDSPe RayDat
Works with: HDSPe MADI FXFor the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. That's a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME's unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).
Internal ADAT inputs and outputs allow to add up to two TDIF ports directly inside the computer via RME's optional expansion boards. HDSPe RayDAT is the newly developed PCI Express version of the HDSP 9652. A genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio. Thanks to RME's secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.
Amazing Features
• 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
• 1 x SPDIF digital I/O, 192 kHz-capable
• 1 x AES/EBU digital I/O, 192 kHz-capable
• 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
• Up to 36 inputs and 36 outputs can be used simultaneously!
• DIGICheck, RME's unique metering- and analysing tool
• TotalMix: 2592 channel mixer with 42 bit internal resolution
• Native PCI Express - no PCI to PCI Express bridge used
• S/MUX poured in hardware: 16 channels 24-bit/96kHz for record and playback on ADAT optical
• HDSPe RayDAT includes SteadyClockTM, RME's own clock technology, combining professional features like maximum
• Jitter suppression at full varipitch capabilities and software controlled sample rates

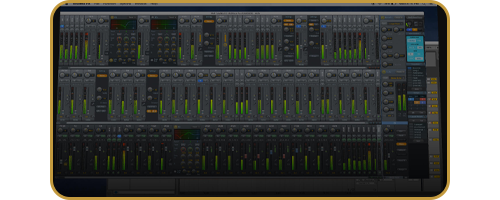

TotalMix FX
Mixing/Routing with superior features for Studio and Live WorkSince 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

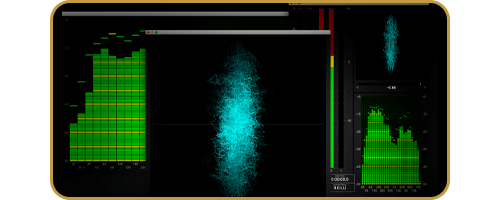

DigiCheck
The Secret Weapon of High Resolution Audio MeasurementsRME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.
The Tech Spec
| Features | Specification | Supported Sample Frequencies | Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz |
|---|---|
| 8 Buffer Sizes/Latencies Available | 0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms |
| Enhanced Mixed Mode | All inputs and outputs simultaneously operational |
| TMS (Track Marker Support) | Supports CD/DAT start-IDs and the read out of CD subcode |
| Super Low Jitter Design | < 1 ns in all clock modes |
| Features | All settings changeable in realtime Automatic and intelligent master/slave clock control Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode DIGICheck, RME's ultimate measurement, analysis and test tool Unique status windows for record and playback, showing mode and sample |
