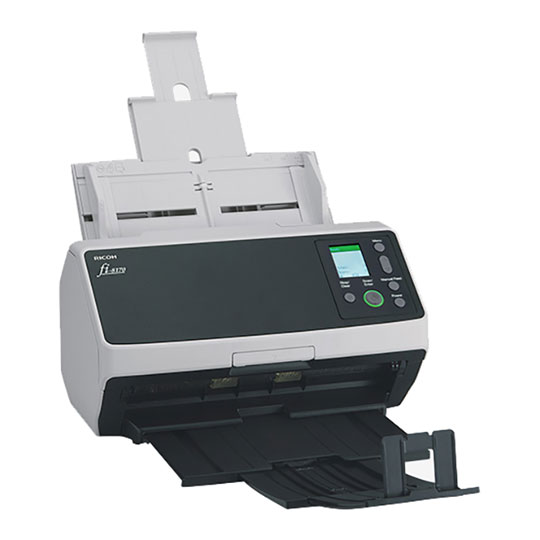

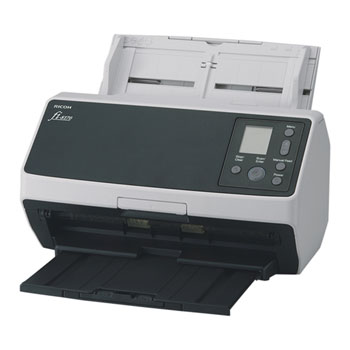

Ricoh fi-8170 Multi Feed Business Desktop Scanner

Redefining the Standard for Business Scanning

The evolution of the market's leading image scanners, the fi-8170 delivers state-of-the-art technology designed to address today's business challenges and drive sustainable value creation.

Our ground-breaking Clear Image Capture produces image quality that surpasses other available technologies, resulting in industry-leading OCR accuracy rates. PaperStream IP software optimises output files for faster, lower cost operations. Plus, the fi-8170 can easily capture the widest range of document types - from 20gsm to 465gsm, cards or booklets up to 7mm thick.

Driven by 32 new patents, the innovations we have made to the world's most trusted scanning solution deliver a product you can rely on, now and into the future. The result is reduced power consumption and state-of-the-art Automatic Separation Control that consistently delivers the perfect feed. Meanwhile, Intelligent Sonic Paper Protection (ISoP) and the world's-first Image Monitoring technology combine for the safe capture and protection of passports, booklets or mixed batches even when labels or photos are attached.

A 100 sheet ADF and 70ppm duplex scanning speed combined with many marginal process gains mean the fi-8170 delivers real-world productivity without equal. Overscan Control and enhanced multifeed detection prevent stoppages from misfeeds, jams or skews, while post-scan filing time is also reduced. And with no need to prepare different document types in separate batches, a fast start-up time and centralised remote scanner monitoring and management, users benefit from uninterrupted operation, maximum uptime and an unsurpassed user experience.

Long-term strategic advantage is also made a reality. Organisational intelligence is enhanced by the scalable, automated capture of richer, more diverse data sets, making the fi-8170 the perfect partner to support the evolution of the digital transformation journey, from the early to advanced stages.

Clear Image Capture

Clear Image Capture is a breakthrough proprietary optical technology innovation debuting in the fi-8170. True image rendering and colour shift prevention deliver industry leading OCR accuracy rates and image quality that surpasses the capabilities of standard CIS or CCD alone. And, as a more efficient optical technology, power consumption for every scan is reduced. It also enables capture of the widest range of document types from 20gsm-465gsm - including A4 envelopes, cards, passports, or booklets up to 7mm thick.

Automatic Separation Control

Our patented Automatic Separation Control delivers the perfect feed so organisations can scan larger volumes and mixed batches of documents with confidence. By sensing their weight and adapting and adjusting torque automatically, mis-feed and mid-scan interruptions are eliminated. This guarantees feed stability for different document formats and saves users from wasting time sorting different document types into individual batches. It also enables the 100 sheet ADF capacity and higher speeds for more efficient, high-throughput workgroup scanning.

Industry Leading Paper Protection

The fi-8170 protects documents from damage using innovative new technology. Image Monitoring identifies overly skewed documents in real time and halts the scanning process before they can be damaged. ISoP will do the same if it detects any abnormal feed sounds, while Lag detection ensures documents are feeding through at the expected speed.

Specialist Passport Capture Capability

The feeding mechanism ensures safe capture of passports with a carrier sheet, while MRZ recognition ensures consistently accurate capture of personal data.

Enhanced Multi-feed Detection

Unnecessary stoppages in the scanning process are eliminated by automatically recognising and ignoring cards, stickers, and small defined attachments. This patented technology is an evolution beyond standard multi-feed detection which stops when anything beyond a single sheet is identified during feed through.

High Speed, High Throughput

Fast boot time and up to 70ppm duplex mean the fi-8170 delivers a highly efficient scanning process for the ultimate in workgroup productivity. Incorporating USB 3.2 and gigabit LAN connectivity also makes rapid file transfer possible.

Overscan Control

Automatically adjust scanning area to prevent image loss on skewed documents, removing the need to ever have to rescan slightly skewed documents. Three precisely positioned sensors detect document edges and adjust the scanning area accordingly to fit the document, even if it has been inserted at a skewed angle. Users can scan safe in the knowledge that the entire document will be scanned every time and no part of the image will ever be lost.

Urethane Rollers

Urethane rollers are resistant to absorption of oil from NCR paper, unlike EPDM rollers which can swell and affect feed torque. Maintaining their integrity avoids misfeed and jams for consistent feed performance.

Stacker Support

Ergonomically designed stacker support neatly stacks scanned documents for faster, easier post-scan filing.

Flexible Connectivity Options

Choose between PaperStream IP Net for flexible, adaptable capture architectures, and PaperStream NX Manager for centralised, server-based capture.

• Scanner Type: Automatic Document Feeder (ADF) / Manual Feed, Duplex.
• Scanning Speed: Simplex: 70 ppm / Duplex: 140 ipm.
• Image Sensor Type: Contact Image Sensor (CIS) x 2 with Clear Image Capture Technology.
• Light Source: RGB LED (front x 1, back x 1).
• Optical Resolution: 600 dpi.
• Document Size: Maximum: 216 x 355.6 mm.
• Interface: USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector).
• Power Consumption: Operating Mode 28 W or less.
