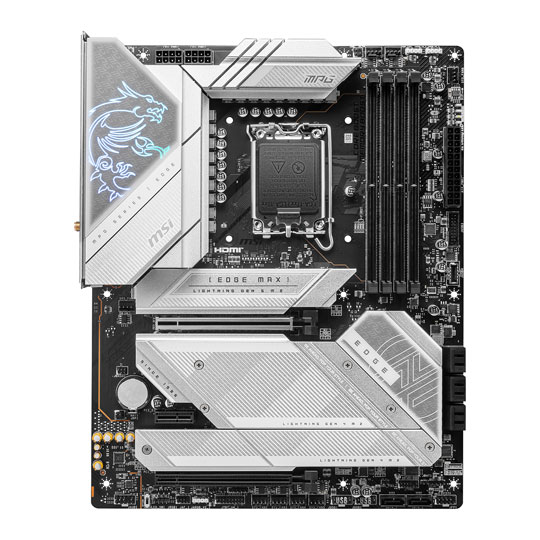

Refurbished MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard

MPG Z790 EDGE TI MAX WIFI

MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, and this is the best white Z790 ATX motherboard for Intel® 14th Gen and 13th Gen Core processors.

Be Ahead, Pop Your Style

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Tool-Free M.2 Installation

Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Direct Touch Heat-Pipe

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Enhanced M.2 Thermal

Double-sided M.2 Shield Frozr and Enlarged heatsink design keep M.2 SSDs safe while preventing throttling.

Enlarged PCH Heatsink

The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

Control in One Click

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Frozr AI Cooling

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Auto Detect your Fan

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Optimized for Water Cooling

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.

16 Phases Mirrored Power Arrangement

Unleash and sustain the maximum performance with a premium VRM design built with a total of 16 Phases Mirrored Power Arrangement with 90A SPS. Combining dual power connectors and Power Stage, MPG Z790 EDGE TI MAX WIFI is ready for the challenge of high-end processors.

Optimized PCB Solution

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

P-Core Beyond 6GHz+

To unleash the exceptional performance of Core i9-14900K processor, MSI P-Core Beyond 6GHz+ function enables effortless 1-core / 2-core Turbo Boost beyond 6GHz with a single click, delivering extreme performance effortlessly.

1-Second Overclocking!

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

Load-Line Calibration

What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

Overvoltage Protection

Prevents potential short-circuit damage to the CPU and other critical components.

Solid Pin Design

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

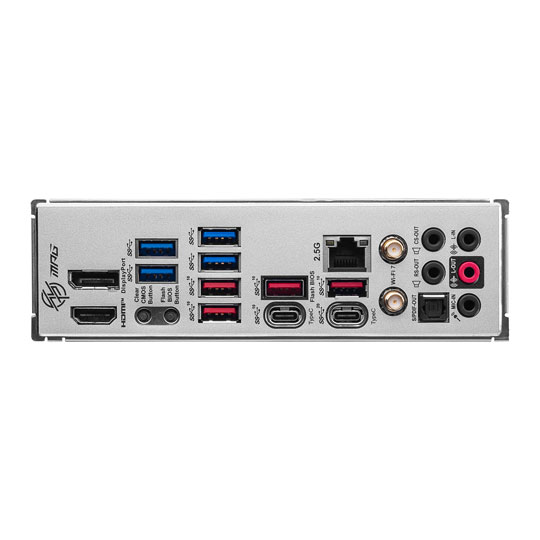

Anti-Corrosive Stainless Steel IO Shield

An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.

The Grounding Structure Of Power Phases

The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

Over Current Protection

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defence mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Lightning Gen 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 Slot

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Reinforced, Heavy Soldered Connections

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Fast and Future-Ready Storage

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Double Bandwidth with Lightning USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! MPG Z790 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB Front Type-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Latest DDR5 Memory with SMT Slot

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 CARBON WIFI is ready to deliver the world class memory performance.

Easy Overclocking With XMP Profile

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Memory Extension Mode

Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Click Bios 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

Audio Boost 5

• High performance alc4080 audio processor.
• High quality audio capacitors.
• High quality audio jacks with s/pdif.
• Dedicated headphone amplifier.
• Isolated audio signal.
• De-pop protection.

The Isolated Analogy Structure For Audio Connectors

To provide clear voice, MSI develops a unique structure - Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Glow your PC

Splash on some colour and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colours and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

Extend your RGB Experience with Ease

Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Additional Fan And ARGB Header

The MSI exclusive JAF header allows MSI's own Daisy-Chained fan to operate with a single cable. Alternatively, the JAF header can be converted into additional ARGB gen 1 and FAN headers by using a dedicated Y-cable, streamlining and optimizing the entire building process.

High-Bandwidth and Low-Latency Network

MSI's premium network solution provides incredible data transfer speed for demanding users.
• Wi-Fi 7.
• Bluetooth 5.4.
• 2.5G LAN.
• Exclusive magnetic antenna.

The Next Gen WI-FI Solution - WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket.
• Supports DDR5 Memory, up to 7800+(OC) MHz.
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2.
• Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• High Quality PCB: 6-layer PCB made by server grade level material.
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
