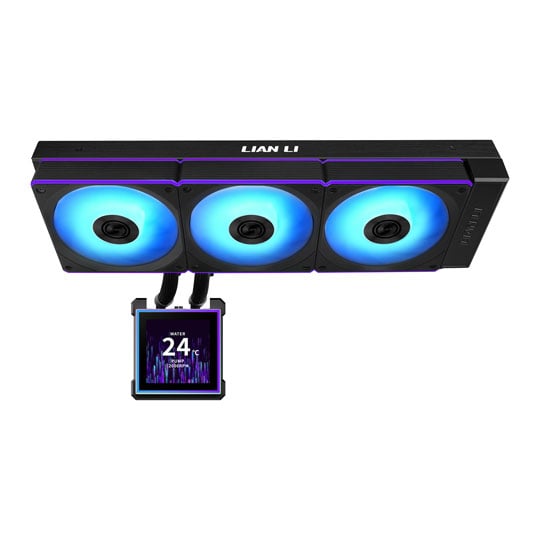

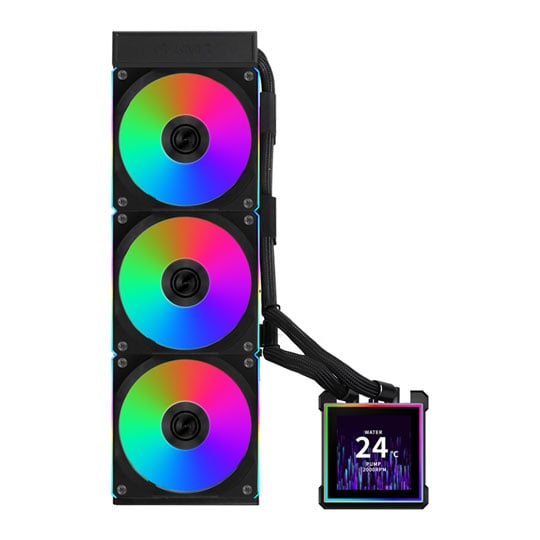

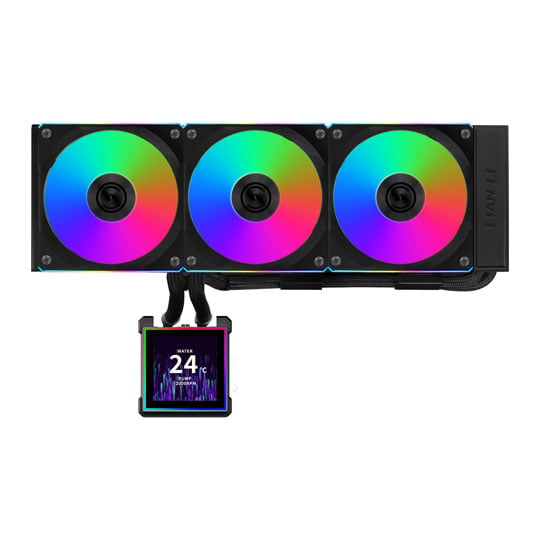

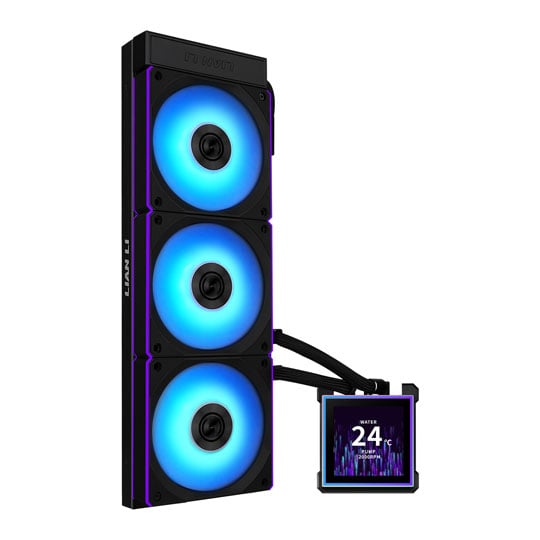

Lian Li Hydroshift II LCD-S 360CL Black All-in-One CPU Cooler with LCD and UNI FAN CL

Three Models, Two Colours

The new HydroShift II LCD-S AIO is available in three models and two colour options in black and white, allowing builders to freely customize both aesthetics and performance for an enjoyable DIY experience. This model is equipped with UNI FAN CL Wireless for high-efficiency airflow. Integrated RGB illumination shines through, and both the light strips and fan blades support independent effect control.

Dynamic Interaction, Complete Control

Enjoy a vivid, high-definition visual experience with a 480 x 480 resolution display boasting 500 nits of peak brightness. Even under bright lighting, every animation and metric remains crystal clear. The 60Hz refresh rate ensures smooth, tear-free visuals for fluid real-time monitoring experience.

Magnetic Hot-Swap Display

Featuring magnetically designed pogo-pin connectors, the screen securely snaps into place without powering down, allowing for fast installation or removal. Precise magnetic alignment ensures a safe , reliable connection, letting users conveniently attach the display after system assembly to avoid accidental damage.

Pump Performance Upgraded

Experience the next level of cooling with our enhanced pump, now reaching speeds of up to 3200 rpm, the enhanced pump delivers more power with less noise. A hidden frame and skirted cover ensure a clean, streamlined look.

Minimalistic Aesthetics, Maximum Freedom

Innovative side mounted tubing runs cleanly along the radiator edge, reducing visual clutter. Cables are discreetly integrated within the sleeved tubing, delivering a seamless cable-free look for an ultra clean, minimalist build.

Constant Innovation, Core Unchanged

The compact radiator has been refined to 400mm x 120mm 24mm, reducing thickness, length and width while maintaining 90% compatibility with mainstream cases. Its smaller footprint eases installation across various builds, delivering efficient heat dissipation in a sleek, space-saving design.

Redefined Mounting Bracket

The CPU liquid cooler features a redesigned mounting system for easier, faster and more secure installation, offering better stability and user-friendly setup.

Broad Compatibility, Seamless Support

The HydroShift II LCD-S AIO offers easy installation and broad CPU socket compatibility, featuring an upgraded AM4/AM5 bracket that ensures even pressure and improved thermal performance.

Intuitive Control, Complete Customization

The L-Connect 3 software offers fast theme switching and layout customization with integrated hardware monitoring. Easily capture screenshots or record videos using built-in editing tools, and enhance your display with 3D effects, sensor-based visuals, overlays, and watermarks. All designed for a personalized, immersive experience.

Three Modes, Multiple Experiences

1. Offline Mode (No USB Connection): Operates with preset themes to monitor coolant temperature and pump speed. No cables, no system resources required.
2. Wireless Mode (L-Wireless Controller Connection, no USB connection): Connect through the L-Wireless 2.4G Controller to customize screen themes, parameters, and lighting effects via L-Connect. Wireless Mode also allows for lighting synchronization with other wireless products, including CL Wireless and TL Wireless, while keeping your motherboard's USB ports free for other devices. Enjoy a cleaner setup with reduced cable clutter and minimal system load.
Advanced Wireless Mode: Combines Streaming and Wireless modes to deliver the best performance and flexibility. With both the L-Wireless Controller and a USB connection to the motherboard, lighting, pump, and fan controls remain wireless, while the USB link enables full LCD customization.
3. Streaming Mode (USB Connection): Connect via USB to gain full control through L-Connect 3. Easily switch screen themes, upload custom images, or design personalized layouts, turning the display into a dynamic secondary screen that enhances both functionality and visual appeal.

PWM Power Cable

If the motherboard cannot read the pump's RPM, it's recommended to connect the 4-pin PWM header to a SATA power adapter for a more stable power supply. The 2-pin connector functions independently and does not require an additional power connection.

USB 2.0 Cable

Used for Streaming Mode and Advanced Wireless Mode to transfer media files such as JPG and MP4.

Precision Fit, Effortless Installation

The removable sliding tube mount enables precise tubing alignment with 140 mm fan brackets. This optimized layout enhances cable management and thermal organization, delivering a clean, minimalist aesthetic.

Flexible Layout, Unlimited Compatibility

For hidden-tube installations, the top mounting area of the case should measure at least 280 x 400 mm. You can easily adjust or remove the tube bracket (recommended clearance > 55 mm) to fit a wide range of case configurations across different usage scenarios.

Mounting Bracket Cover

Designed to conceal the bracket and mounting screws, this cover refines the cooler's appearance-completing its clean, minimalist aesthetic.

Cable Organizer

Used to neatly align and secure extended tubing, maintaining a clean and balanced exterior appearance.

Industrial-Grade Corrugated Tubing

Designed with a unique corrugated structure, the tubing offers superior flexibility and kink resistance for hassle-free routing-even in tight layouts. Its high-tensile durability ensures long-term performance and a consistent flow rate.

6-Year Warranty

LIAN LI offers a 6-year warranty for lasting confidence and worry-free performance.

• 3.4" IPS LCD display with 480x480 resolution, 500 nits brightness, and 60Hz refresh rate.
• Two display control modes: Advanced USB-connected Mode, and Wireless Mode.
• Redesigned 400×122×24mm radiator for broader case compatibility.
• AM4/AM5 4-point mounting for balanced pressure and clean installation.
• L-Connect 3 software control with sensor-reactive visuals and screen capture tools.

Fan Model: UNI FAN CL Wireless
Speed Range: 200~2100RPM
Airflow: 72.7 CFM
Static Pressure: 3.0 mmH₂O
Noise Level: 30dB
