Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard
Refurbished
Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard
Scan code: LN165863 Manufacturer code: ROG STRIX B660-F GAMING WIFI
£269.99
Add To Basket
Get it Tomorrow, 08 JulIn stock
  • Thumbnail 1 : Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard
Refurbished

Refurbished ASUS ROG STRIX B660-F GAMING WIFI Intel B660 PCIe 5.0 ATX Motherboard

Refurbished ASUS ROG STRIX B660-F GAMING WIFI, Intel B660, S 1700, DDR5, PCIe 5.0, SATA3, 3x M.2, 2.5GbE, ax WiFi, ATX
MORE INFO
MORE INFO

Scan code: LN165863 Manufacturer code: ROG STRIX B660-F GAMING WIFI
£269.99
£5.48 Next day delivery
Order now and get it tomorrow, Wed 8th Jul
Add To Basket
Get it Tomorrow, 08 JulIn stock
Pay in 3 interest-free payments of £90.00

Email me when the availability or price changes

  • By DPD On 8th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £13.19 / month (APR 16.9%) for 24 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview

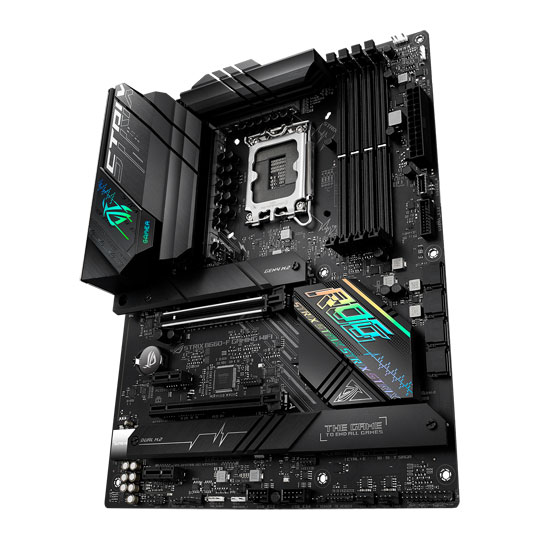

ROG Strix B660-F Gaming WiFi

ROG Strix B660-F Gaming WiFi Intel® B660 LGA 1700 ATX?motherboard features PCIe® 5.0, three M.2 slots with heatsink, M.2 backplate, DDR5 support, USB 3.2 Gen 2x2 Type-C®, WiFi 6 and Intel® 2.5 Gb Ethernet.?It also features AI Cooling and Two-Way AI Noise Cancelation. ROG Strix B660-F Gaming WiFi caters to gamers and all builders looking for well-rounded specs and a range of options for performance tuning via intuitive software and firmware.

Features


• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors.
• Optimal Power Solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors.
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates.
• High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard.
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®.
• Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance.
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Clr CMOS button.
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers.
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III.
• Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86.

Specifications
Core Specifications
Edition ROG STRIX B660-F GAMING WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Aura RGB Header
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)

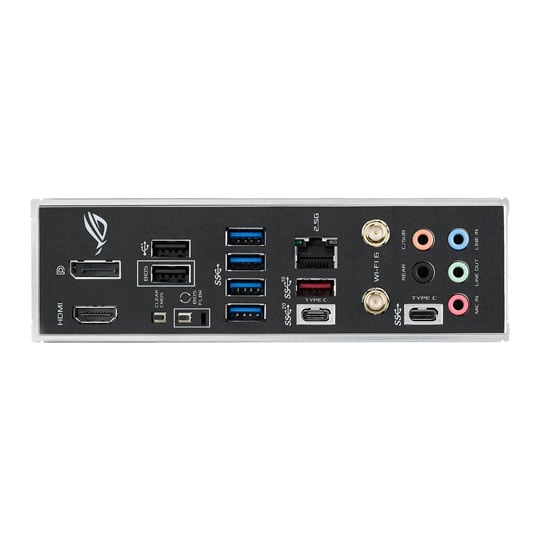

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x BIOS FLASHBACK+ Button
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN165863
Model Number ROG STRIX B660-F GAMING WIFI
GTIN 195553552189
