ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard
Refurbished
ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard
Scan code: LN140680 Manufacturer code: 90-MXBKD0-A0UAYZ
£229.99
Add To Basket
Get it Tomorrow, 05 DecIn stock
  • Thumbnail 1 : ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard
  • Thumbnail 2 : ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard
  • Thumbnail 3 : ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard
  • Thumbnail 4 : ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard
Refurbished

ASRock Intel Z790 Steel Legend WiFi PCIe 5.0 DDR5 Refurbished ATX Motherboard

Refurbished ASRock Z790 Steel Legend WiFi, Intel Z790, S 1700, DDR5, PCIe 5.0, 5x M.2, 2.5GbE, ax WiFi/BT, ATX
MORE INFO
MORE INFO

Scan code: LN140680 Manufacturer code: 90-MXBKD0-A0UAYZ
£229.99
Order now and get it tomorrow, Thu 5th Dec
Add To Basket
Get it Tomorrow, 05 DecIn stock
  • By DPD On 5th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £9.59 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £19.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £229.99
    Total inc. interest: £229.99
    Monthly Payment: £9.59
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £229.99
    Total inc. interest: £229.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Tough As Steel

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.


16+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.


6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.


DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” design concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6800MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.


DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.


PCIe 5.0 + Surface-Mount Tech

Compared to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximise stability under high speeds, a key breakthrough to fully support the lightning speeds of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable of perform up to a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.


Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.


POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.


Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Features

• Supports 13th Gen & 12th Gen Intel® Core™ Processors.
• 16+1+1 Phase Power Design, SPS for VCore+GT.
• 4 x DDR5 DIMMs, supports up to 6800+(OC).
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi.
• Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP.
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio.
• 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3.
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front).
• Realtek 2.5G LAN.
802.11ax Wi-Fi 6E + Bluetooth.

Specifications
Core Specifications
Edition Z790 Steel Legend WiFi
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 3.0 x16 (x2 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Dragon RTL8125BG (2.5GbE LAN)

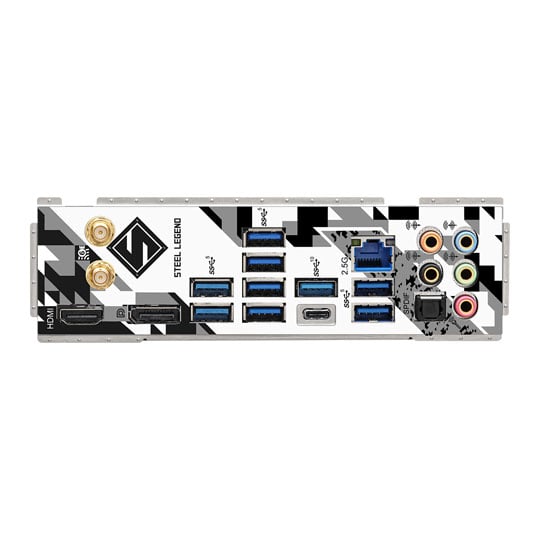

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 8 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 50 x 305 mm
Note
Additional Information
Scan Code LN140680
Model Number 90-MXBKD0-A0UAYZ
GTIN 4710483940859
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
