ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard
Refurbished
ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard
Scan code: LN126482 Manufacturer code: ROMED8-2T
  • Thumbnail 1 : ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard
  • Thumbnail 2 : ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard
  • Thumbnail 3 : ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard
  • Thumbnail 4 : ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard
Refurbished

ASRock AMD EPYC SP3 PCIe 4.0 Refurbished ATX Motherboard

Refurbished ASRock ROMED8-2T, AMD EPYC™ 7003/7002/7001, SP3 (LGA4094), DDR4 RDIMM/LRDIMM, PCIe 4.0, 2x M.2, 10GbE, ATX
MORE INFO
MORE INFO

Scan code: LN126482 Manufacturer code: ROMED8-2T

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview
ATX 12'' x 9.6''
Single Socket SP3 (LGA4094) support AMD EPYC™ 7003/7002/7001 series processor family
Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM,LRDIMM/NV DIMM 8 x DIMM slots
Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM(BOM option), and 2 x M.2
Supports 2 X 10G LAN by Intel X550 -AT2
Supports 7 PCIe 4.0x 16
Supports 2 OCulink(share with PCIE2 by Jumper)
Features
https://www.asrockrack.com/general/productdetail.asp?Model=ROMED8-2T#Specifications
Specifications
Core Specifications
Edition ROMED8-2T
Form Factor ATX
CPU Socket SP3
Chipset
RAM Memory Support
Memory Type DDR4
Memory Channel
Memory Type (ECC)
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Integrated ASPEED AST2500
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30/42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4/SATA3
  • 7 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 6-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Auxiliary Panel Header
  • 7 x Fan Header
  • 1 x Front Panel Connector
  • 1 x IPMB Connector/Header
  • 1 x NMI Button
  • 1 x PSU SMB Header
  • 1 x SATA DOM
  • 8 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x TPM Header
  • 1 x TR1
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type Wired 10G LAN
Network Chip/Modules
  • 2 x Intel® X550-AT2 (10GbE LAN)
  • 1 x Realtek RTL8211E (Management LAN)

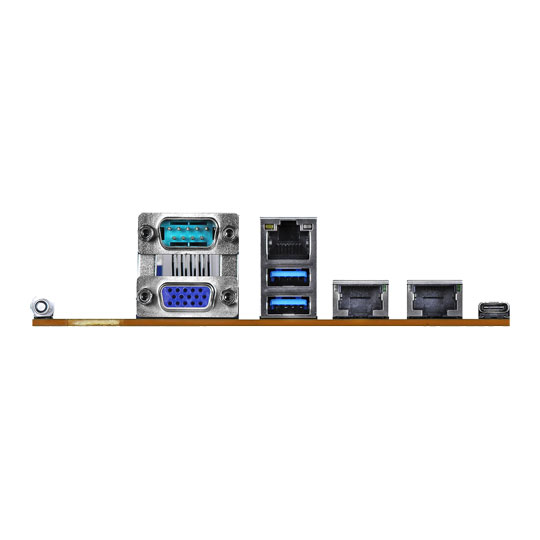

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x RJ-45 Mgmt LAN
  • 2 x RJ-45 with LED
  • 1 x Serial (COM)
  • 1 x UID Button/UID LED
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN126482
Model Number ROMED8-2T
GTIN 4710483931130
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
