Refurbished ASRock DeskMini X600 / USB4 SFF Barebones Mini PC

Refurbished ASRock DeskMini X600 Mini PC, AMD AM5 Support, Up to 96GB DDR5, 2x SATA, 2x M.2, HDMI, DP, USB4, 2.5G LAN
MORE INFO
MORE INFO

Scan code: LN169695 Manufacturer code: 90BXG5301-A10GA0W
RRP: £189.98£169.99
£5.48 Next day delivery
Order in the next 2 hrs 29 mins and get it tomorrow (upgrade to Saturday delivery at checkout)
Add To Basket
Get it Tomorrow, 06 JunIn stock
Pay in 3 interest-free payments of £56.67

Email me when the availability or price changes

  • By DPD On 8th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £15.40 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

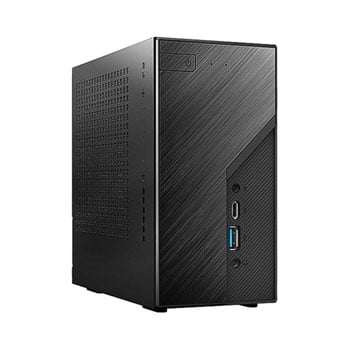

ASRock DeskMini X600 / USB4 Small Form Factor Barebones System

The ASRock DeskMini X600 / USB4 Series delivers desktop-class performance in an ultra-compact 1.92-litre barebones form factor. It supports AMD Ryzen 9000/8000/7000 Series processors on the AM5 socket with a 65W TDP, and allows coolers up to 47mm in height. Built around the AMD X600 chipset, it combines high-speed DDR5 memory, PCIe Gen5 storage, and triple display outputs including USB4, HDMI 2.1, and DisplayPort 1.4 to meet the needs of modern home, office, and creative users.


Memory, Storage & Expansion Capabilities

Dual SO-DIMM DDR5 slots support up to 96GB of memory running at 6400+ MHz (OC), enabling high responsiveness for multitasking and demanding workloads. The storage layout includes a blazing Gen5×4 M.2 socket, a Gen4×4 M.2 socket, plus two 2.5-inch SATA bays. RAID 0 and RAID 1 are supported for the NVMe M.2 drives. Wireless capability can be added via a Key-E M.2 socket (2230) for Wi-Fi/BT modules.


Display & Connectivity Options

The DeskMini X600 / USB4 provides three video outputs suitable for high-resolution work: an HDMI 2.1 port capable of 4K at 120Hz, DisplayPort 1.4 also rated for 4K at 120Hz, and a USB4-capable Type-C port. USB4 functionality depends on the processor: with Ryzen 8000G Series CPUs the USB4 port is natively supported, while with Ryzen 9000/7000 Series CPUs it operates via DisplayPort Alt Mode. The front panel features USB3.2 Gen1 Type-C, USB3.2 Gen1 Type-A, and a headphone + mic jack; the rear panel includes multiple USB ports and 2.5G Ethernet.


Power, Size & Included Accessories

Powered via a 120W / 19V external adapter, the DeskMini X600 / USB4 maintains a minimal footprint. Inside, two 4-pin fan connectors are available for CPU and system fans. The package includes the power adapter, SATA data/power cables, and a screws kit to support installation of storage, memory, and processor.

Features

• Barebones system - does notinclude CPU, Memory, Storage or OS.
• Supports AMD AM5 Ryzen 9000/8000/7000 Series CPUs up to 65W TDP.
• Dual DDR5-6400+ (OC) SO-DIMM Memory up to 96GB.
• Gen5 and Gen4 M.2 NVMe Storage.
• Two SATA drive bays.
• USB4 / Type-C, HDMI 2.1, DisplayPort 1.4 display output.
• 2.5 Gigabit LAN, optional WiFi/BT via M.2 Key-E slot.
• Compact 1.92 L chassis, 47mm cooler clearance.

Specifications
Edition ASRock Desk Mini X600
Form Factor mini PC
CPU Included No
CPU Type
CPU Model Supports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
TDP
CPU Socket N/A
Chipset AMD X600
Motherboard Form Factor Bespoke/Custom
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR2 - 1333(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 96GB (2x48GB)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip Integrated
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
SATA SATA3
HDD Storage Included No
HDD Storage Type 2x SATA HDD
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity
Optical Drive None
Drive Bays 2 x 2.5" Internal
Backplane I/O
RAID Support M.2
Internal I/O
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Connector
  • 1 x Internal speaker connector
  • 1 x USB 2.0 Header
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Mic In
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Back Panel
  • 1 x DC-In
  • 1 x RJ-45
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 4.0 Type-C
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 120 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 155 x 80 x 155 (mm WxHxD)
Weight 2.2 kg
Includes 1 x UK Power Cable
Notes
Additional Information
Scan Code LN169695
Model Number 90BXG5301-A10GA0W
GTIN 4711581491519
