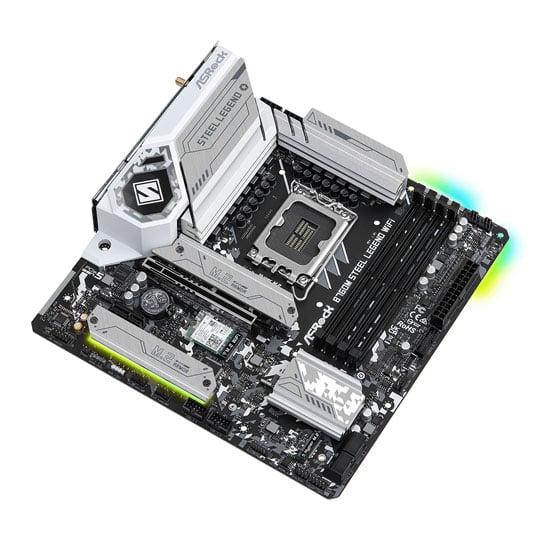

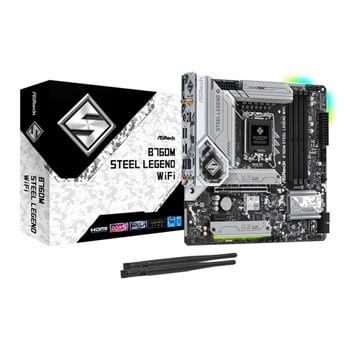

ASRock Intel B760M STEEL LEGEND WIFI Micro-ATX Refurbished Motherboard
Refurbished ASRock B760M STEEL LEGEND WIFI, Intel B760, LGA1700, DDR5, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, mATX
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
12+1+1 Power Phase Design + Dr.MOS
Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.
DDR5 Memory Technology
A trouble free protection circuit design on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe Gen5 Technology PCIe x16 Slot
Ready to unleash the full potential of future high end graphics cards.
Dragon 2.5Gbps LAN
Enjoy the faster connectivity experience for gaming, file transfers and backups.
Onboard eDP Connector
Opens up endless customization possibility with the ability of connecting a display panel via an onboard eDP connector.
WiFi 6E (802.11AX)
Better and faster internet traffic with lower latency!
• Supports 13th Gen & 12th Gen IntelR CoreTM Processors (LGA1700).
• 12+1+1 Power Phase, Dr.MOS for VCore+GT.
• Supports DDR5 6800MHz (OC).
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x1.
• Graphics Output Options: HDMI, DisplayPort, eDP.
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4).

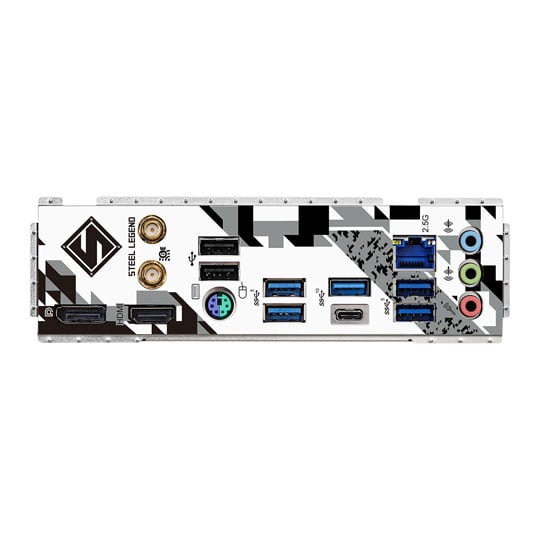

• 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front).
• Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth.
• Supports ASRock Auto Driver Installer.
