Active Two-Way Array System
RCF - NXL 44-A MK2

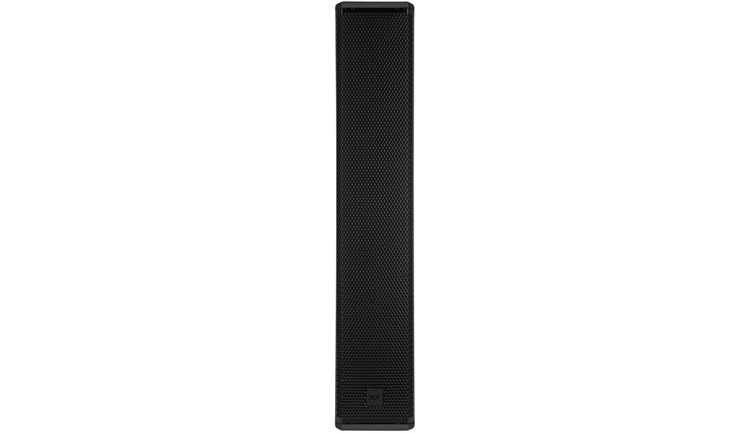

2,100W Powered Line Array Column SpeakerNXL 44-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produce coherent 100° x 25° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a 3” driver on a waveguide.
The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 44-A MK2 for extended coverage. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 44-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, plywood cabinet is easy to carry and installed securely using the dedicated rigging points. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems.
2100W PeakTotal Power
45 Hz - 20000 HzFrequency Response
135 dBMax SPL @ 1m
at a glance
• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 25° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 3 x 10" High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 4 x Quick Lock
Bass Motion Control
BMC (Bass Motion Control)When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Superior Transducers

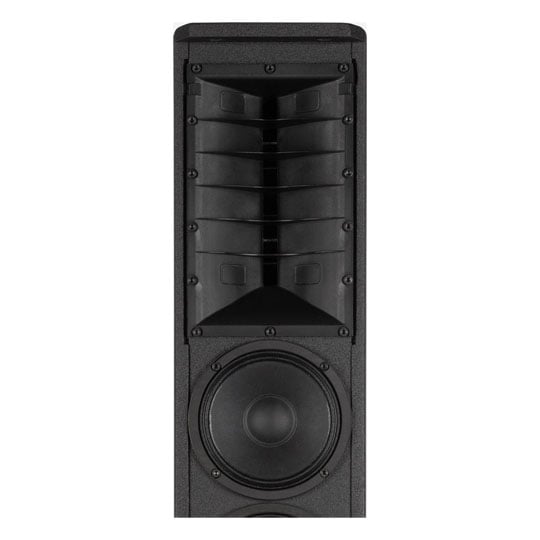

best-in-class materialsLightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion. Three, high-power 10" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.
A New Perspective on Linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Line Array Performance and Coverage

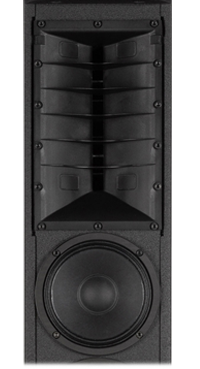

The vertically asymmetrical horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage. Intelligibility is significantly increased in challenging acoustic environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.
The Tech Spec
| Features | Specification | Acoustical specifications | Frequency Response - 45 Hz - 20000 Hz Max SPL @ 1m - 135 dB Horizontal coverage angle - 100° Vertical coverage angle - 25° |
|---|---|
| Transducers | Compression Driver - 1 x 1.4'' neo, 3.0'' v.c Woofer - 3 x 10.0'' neo, 2.5'' v.c |
| Input/Output section | Input signal - bal/unbal Input connectors - Combo XLR/Jack Output connectors - XLR Input sensitivity - +4 dBu |
| Processor section | Crossover Frequencies - 800 Protections - Thermal, Excurs., RMS Limiter - Soft Limiter Controls - Linear/2 Speakers/High-Pass presets, Volume |
| Power section | Total Power - 2100 W Peak High frequencies - 700 W Peak Low frequencies - 1400 W Peak Cooling - Convection Connections - Powercon TRUE1 TOP IN/OUT |
| Physical specifications | Cabinet/Case Material - Baltic birch plywood Hardware - 8 x M8, 4 x quick lock Handles - 2 side Pole mount/Cap - 35 mm insert Grille - Steel Color - Black |
| Size / Weight | Height - 1080 mm / 42.52 inches Width - 297.5 mm / 11.71 inches Depth - 373 mm / 12.87 inches Weight - 33.4 kg / lbs |
