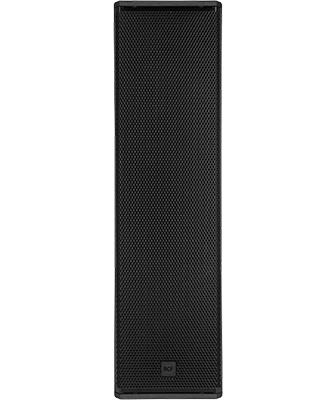

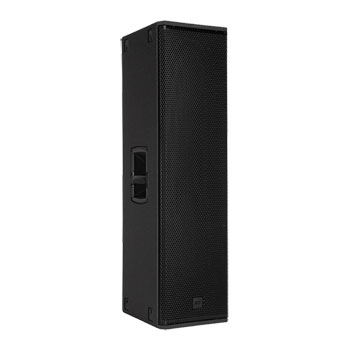

Active Two-Way Column Speaker
RCF - NXW 44-A

RCF NXW 44-A

Accurate Sound & Extended Frequency RangeThe RCF NXW 44-A is a column speaker masterfully engineered from the ground up to deliver stunning audio performance for bands, DJs, nightclubs, and rental companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produces coherent 100° x 50° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a CMD horn-loaded 3” compression driver.

The Constant Matching Design horn delivers accurate sound to the coverage area without tilting the cabinet. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown or pole-mounted. Pairing the speaker with a subwoofer provides full-range power for medium-sized concerts and high-powered DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXW 44-A speaker is tuned for ultimate audio clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood enclosure is easy to carry and installed securely using dedicated rigging points.

2100WTotal Power

45 Hz - 20 kHzFrequency Response

135 dBMax SPL

at a glance • Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 50° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 3 x 10" High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 8 x Quick Lock
• IP Rated Powercon TRUE1 TOP IN/OUT

Power That Moves

RCF NXW 44-A

The most powerful amplifier in its classRCF continues to make improvements in transducer design to make them stronger and more powerful. With 2100W of power, the new NXW 2-channel Class-D amplifier is 50% more powerful than previous models. The speaker manages extreme sound pressure levels with an incredibly fast attack, realistic transient response, and very low power loss.

RCF amplifier modules are energy-efficient so a cooling fan isn't required. The amplifier is attached to a solid aluminum heat exchanger to the rear of the cabinet, with no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.

Accurate Performance and Coverage

RCF NXW 44-A

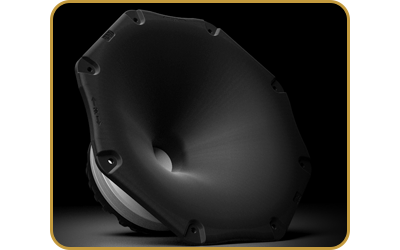

intelligent designThe advanced horn design projects the sound energy accurately and avoids unwanted reflections when placed on a sub or a speaker stand.

Intelligibility is then significantly increased in acoustically challenging environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

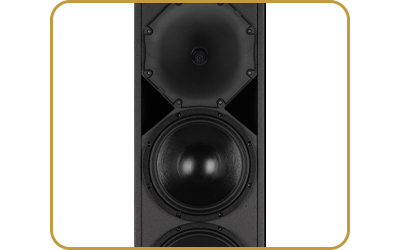

Superior Transducers

RCF NXW 44-A

Lightweight and powerfulRCF drivers are a reference in high performance. Each transducer is designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and weight reduction.

The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion. Three, high-power 10" low-frequency woofers with a new advanced transducer design get more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.

Bass Motion Control

RCF NXW 44-A

improved sound integrityWhen looking for extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to create a custom algorithm that only limits over-excursions. This gives complete freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

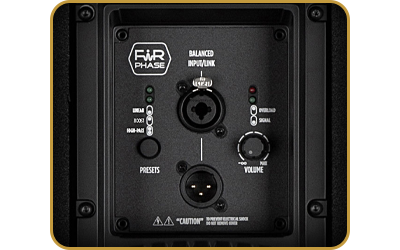

New Perspective On Linearity

RCF NXW 44-A

no distortionRCF speakers are designed using a proprietary and advanced digital FiR technology, made to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Raising the Bar for Sound

RCF NXW 44-A

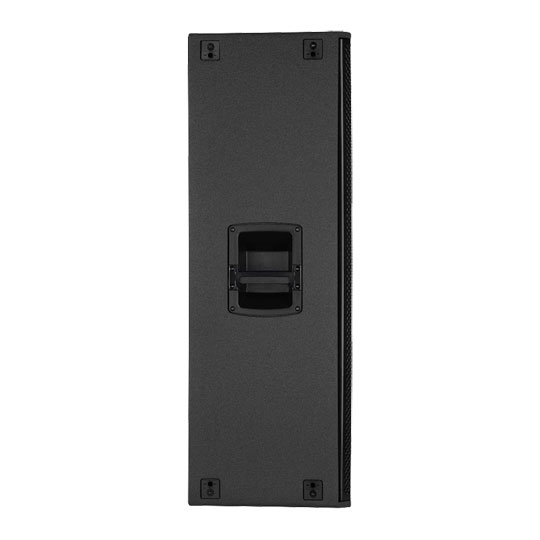

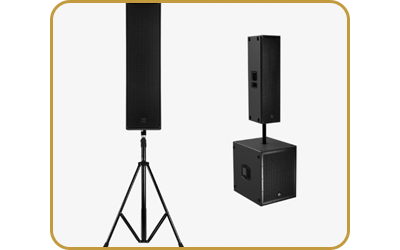

high-powered and portableNXW 44-A is ideal for high-powered portable and installed professional applications where size is a crucial factor. The sleek column design and flexible rigging options make it a smart choice for a wide range of sound applications. The rugged, high-quality Baltic birch plywood enclosure is easy to carry, with ergonomic handles on each side.

It can be used alone, on a pole, or paired with a sub, and can also be flown or truss-mounted with included rigging points and special accessories. From the cabinet to the final texture, and the rugged protective grille, NXW 44-A provides maximum strength for intensive use on the road and can be used for fixed installation.

The Tech Spec

Features Specification
Frequency Response 45 Hz ÷ 20000 Hz
Max SPL @ 1m 135 dB
Horizontal coverage angle 100°
Vertical coverage angle 50°
Compression Driver 1 x 1.4" neo, 3.0" v.c
Woofer 3 x 10" neo, 2.5" v.c
Input signal bal/unbal
Input connectors Combo XLR/Jack
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu
Crossover Frequencies 800
Protections Thermal, Excurs., RMS
Limiter Soft Limiter
Controls Linear, Boost, High-Pass presets, Volume
Total Power 2100 W Peak
High frequencies 700 W Peak
Low frequencies 1400 W Peak
Cooling Convection
Connections Powercon TRUE1 TOP IN/OUT
Safety agency CE compliant
Hardware 8 x M8, 8 x quick lock
Handles 2 side
Pole mount/Cap Yes
Colour Black
Dimensions Width: 297.5 mm / 11.71 inches
Height: 1080 mm / 42.52 inches
Depth: 373 mm / 14.69 inches
Weight 31.55 kg / 69.56 lbs
Specifications
Number of Input Channels 0
Frequency Response -3dB 45 Hz - 20 kHz dB
Frequency Response -10dB N/A
Max SPL 135 dB
Power rating (Peak) 2100 Watts (Peak)
Power rating RMS 0 Watts (RMS)
Speaker size 10 Inches
Enclosure Type Composite
Dimensions 297.5 x 1080 x 373
Net weight 31.55 KG
Shipping weight 0 KG
Connectivity 1 x XLR / Jack Combi
Connectivity (Output)
Colour Black
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points Yes
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House Yes
Floor Monitor No
