RCF - F 24XR 24-Channel Mixing Console with Multi-FX & Recording
RCF - F 24XR 24-Channel Mixing Console with Multi-FX & Recording, PRO DSP FX, 3-Band EQ, Stereo Recording
Email me when the availability or price changes
Finance this product
- From £23.64 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £17.94 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
24-Channel Mixing Console
with Multi-FX & Recording

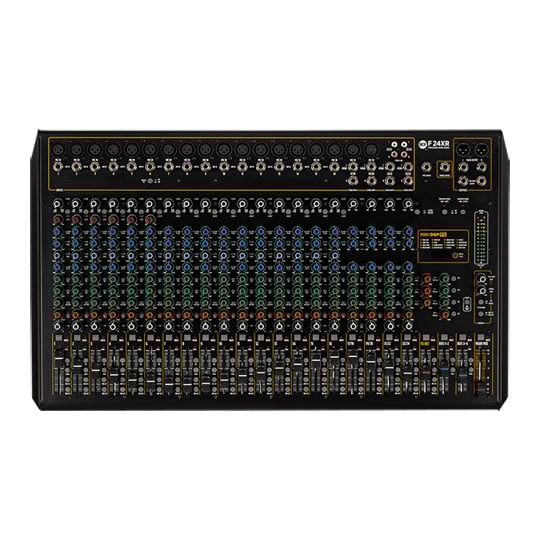

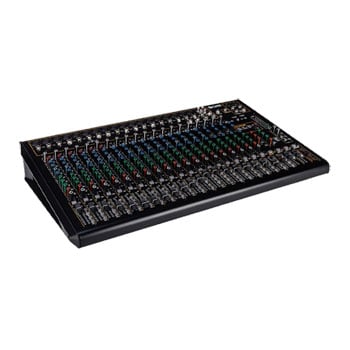

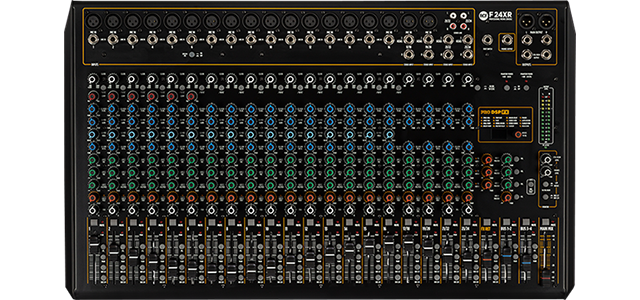

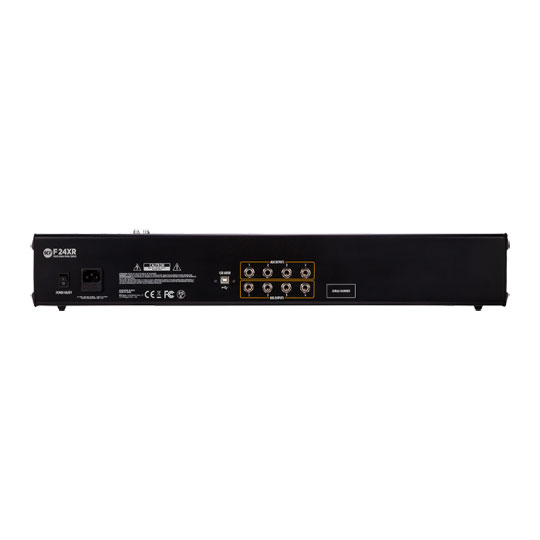

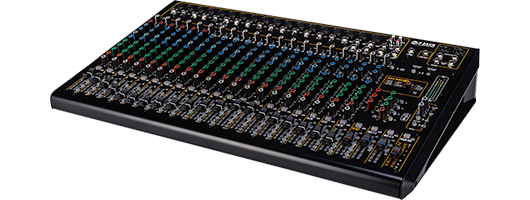

RCF - F 24XR
Feature Rich & user-friendlyThe F 24XR is part of RCF’s next generation F Series mixers, building further on the rich analogue legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. An incredibly effective tool for the musician and the sound enthusiast, entirely designed and built by the RCF R&D team.
Kept safe in a sturdy metal chassis, each mixer features a fully balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects including Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, all include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
Amazing Features
• PRO DSP FX onboard with 16 presets
• Balanced main output audio path from input to output
• Stereo Recording and Playback via USB ports
• 3-band EQ provided for both mono and stereo channels
• Two stereo output busses and 4 aux sends
Versatile Connectivity
Enhanced ControlThe F 24XR includes 18 mic preamp inputs, 16 mono line inputs, 4 stereo line inputs, multi-FX, 6 single control compressors, stereo recording and playback via USB port, balanced main output (Stereo XLR + TRS).
The mono channels come with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer also features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post), along with 60mm faders.
RCF - F Series Mixing Console
The Tech Spec
| Features | Specification | Frequency Response | 20 Hz ÷ 20 kHz |
|---|---|
| THD+N, 20dB gain, 0dBu out | <0,02% A-Weighted |
| Inputs | Channels: 24 Mic: 18 Gain Range: 0 dB ÷ -50 dB Input Noise Level: -124 dBu A-Weighted Mic Inputs Impedance: 14 kohm Low Cut: 80 Hz Phantom Power +48V: Yes Mono Line: 16 Gain Selection: 20 dB ÷ -30 dB Line Input Impedance: 21 kohm HI-Z Line Inputs: 1 HI-Z Line Inputs Impedance (Mohm): 1 Mohm Stereo Line: 4 Gain Selection: 20 dB ÷ -30 dB Stereo Line Input Impedance (kOhm): 15 kohm Input connectors: XLR, Jack, RCA |
| Outputs | Main MIX: 1 Control Room: Yes FX Send: 1 AUX Send: 3 AUX Output: 4 Group Out: 2 Phones: 1 Output connectors: XLR, Jack |
| Main Out Level | 28 dBu |
| Aux Out Level | 28 dBu |
| Phones Out impedance (ohm) | 150 ohm |
| RCF Compressors | n°6 Single Control Compressors on Channels 1 to 6 |
| EQ | Input Channels EQ: 2 Shelving / 1 Generic Description: High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving |
| Auxiliary Sends | AUX: 2 PRE / 1 PRE/POST FX POST: 1 |
| Send Effects | 1 |
| USB Audio | USB Audio Interface: Yes Type: B Play trk: 2 Rec trk: 2 Supported Sample Rate: 44.1, 48.0 kHz |
| Footswitch | Yes |
| Power supply | External |
| Voltage requirements | 100 V - 240 V |
| Power consumption (MAX) | 70 W |
| Cabinet/Case Material | Metal |
| Colour | Black |
| Dimensions | Width: 720 mm / 28.35 inches Height: 107 mm / 4.21 inches Depth: 406 mm / 15.98 inches |
| Weight | 9.5 kg / 20.94 lbs |
