New
Scan code: LN103545 Manufacturer code: iR2622

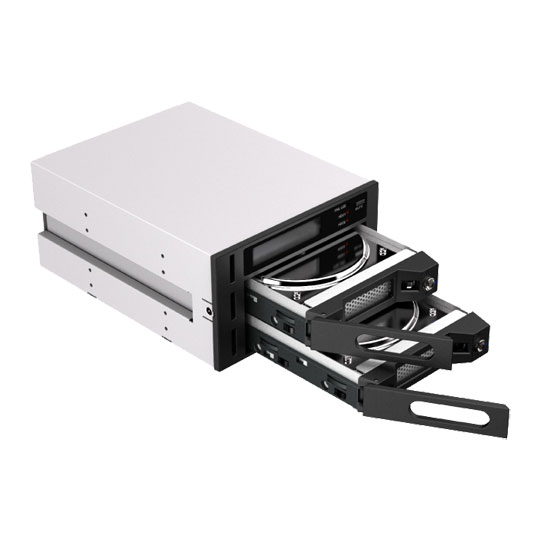

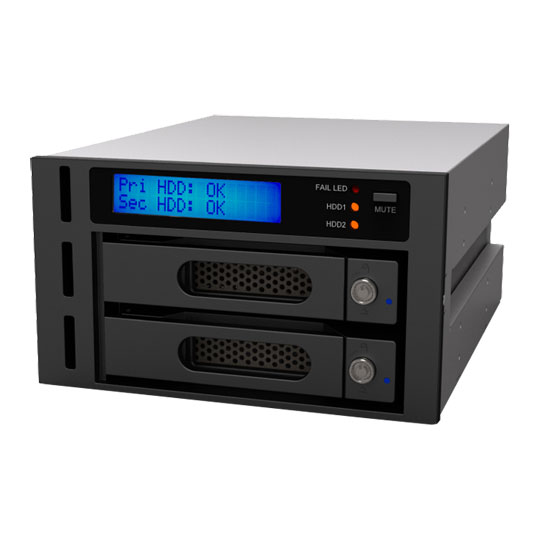

RAIDON InTANK iR2622 Internal RAID Storage

RAIDON InTANK iR2622 x2 CD-ROM BAY 2.5-3.5” SSD / HDD Internal RAID Storage

Thumbnail 1 : RAIDON InTANK iR2622 Internal RAID Storage Thumbnail 2 : RAIDON InTANK iR2622 Internal RAID Storage Thumbnail 3 : RAIDON InTANK iR2622 Internal RAID Storage Thumbnail 4 : RAIDON InTANK iR2622 Internal RAID Storage
Scan code: LN103545 Manufacturer code: iR2622
£203.99
From £8.50 / month (APR 0%)
Monthly Payment: £34.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £203.99
Total inc. interest: £203.99
Monthly Payment: £17.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £203.99
Total inc. interest: £203.99
Monthly Payment: £11.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £203.99
Total inc. interest: £203.99
Monthly Payment: £8.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £203.99
Total inc. interest: £203.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Internal RAID Module

iR2622 is an internal (6Gbps) RAID module designed in 2 of 5.25" CD-Rom bay to satisfy the demands of SMB and industrial computing environments. With LCD tents leaving you to easily grasp HDD status.


Enhanced Performance with Secure Backup

iR2622 accommodates 2 of 2.5"-3.5 " SATA III hard drives and offers both RAID 0 and RAID 1 functions. It uses the RAID 0 function to integrate the capacity of two hard drives and to enhance both read & write performance. On the other hand, it uses the RAID 1 function for data redundancy by mirroring data between both hard drives to prevent the event of a hard drive failure.


Features

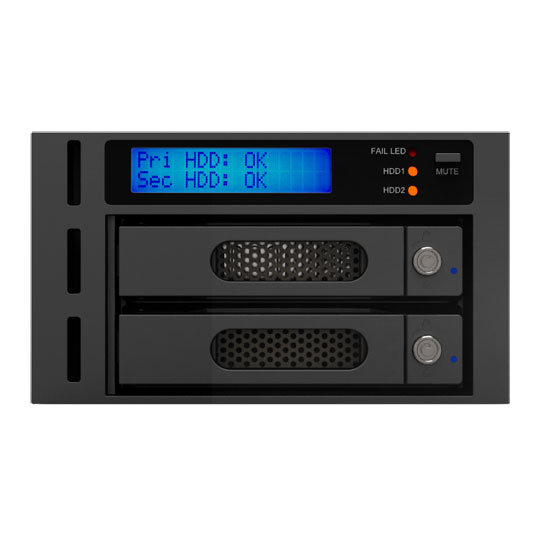

User-friendly Display
• Equipped with clear readable LCD display and LED indicators for system monitoring during operation so users can easily grasp the status of the system at all times. Moreover, it comes with visual and audio alarms whenever failure occurs.

Removable Tray with Lock
• If drive replacement becomes necessary, the iR2622 is modular designed for effortless removal and install of drives. It’s also protected by a locking mechanism to secre the drive into place.

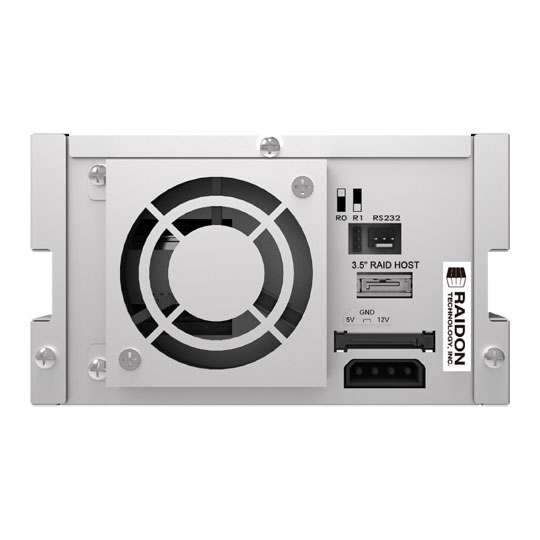

Smart Cooling
• iR2622 is equipped with an 6cm fan located at the rear and comes with the SMART fan functionality where the fan spins at 70% speed when under 54 and full speed when reaching above 56.

Included Monitoring Software
• In the iR2622, in addition to the back light screen that can display the module status, for Windows users, a software RAIDGuide Manager monitoring program is also provided. It allows users to understand the RAID module and hard disk status more directly through the monitoring program. Even better, after setting the monitoring program, it will take the initiative to send letters to users when the hard disk fails. This instant notification allows users to be aware of the situation as soon as possible to remedy the situation faster.

Digital Video Surveillance
• Let The DVR, NVR Device To Install and Use The iR2622 Easily. Take advantage of the durable HDD disk to install your DVR, NVR operating system and use two hard disks with up to 8TB capacity and RAID 1 to protect the long-term data. You can even use the iR2622’s hot swapping feature to extract the 2.5”-3.5” hard disk periodically and to save it in the data center, then to put in a new hard disk so the iR2622 can continuously perform instant backup.

Maintain Automation Equipment System
• Use RAID 1 To Maintain Stable Operation Of Automation Equipment.

Advantage of Automation
• The advantage of automation equipment is in its production efficiency. In high-speed production processes, the most worrying matter is system failure. System failure will cause a shut down of an automated production line. Production loss during these shutdowns is far greater than business owners can imagine. By using the iR2622 RAID 1 module, you can protect the automation systems long-term operation so there is no need to worry about the automated production equipment in the event of hard disk damage. This is the most cost-effective equipment choice. From small-scale CNC machining to large-scale semiconductor manufacturing processes, the RAID 1 module is recommended to protect the long-term operation of systems and achieve the highest production efficiency.
Specifications
Edition
NAS Form Factor
Bays 2 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity 8 TB
Drive Interface Support
  • 1 x RS232
  • 1 x SATA
Drive Form Factor Support 2 x 2.5"/3.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Type
CPU Model
CPU Cores
CPU Speed
RAM Memory Included 1.2TB
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type N/A
Expansion Slots
External Connectivity 1 x SATA
Cooling Fan
Noise Level
PSU Type
PSU Wattage
Max. Power Consumption
Physical Security
Dimensions 146 x 85 x 202 (WxHxD mm)
Weight 1.48 kg
Additional Information
Scan Code LN103545
Model Number iR2622
GTIN 4711132862188
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
