500 Series Guitar Amp Interface

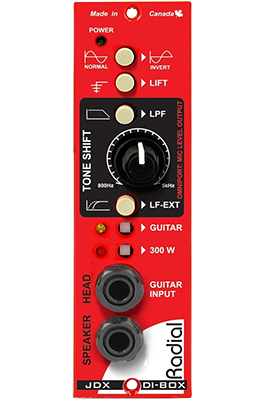

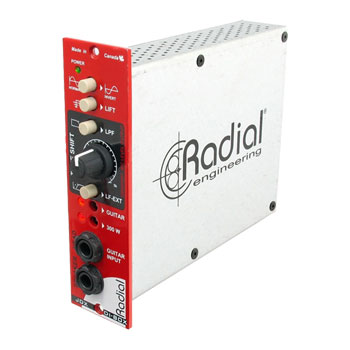

Radial - Workhorse JDX-500
High-quality guitar amp interfaceThe Radial JDX-500 is a 500 series guitar amplifier interface that allows you to capture the tone of a guitar amp and cabinet without the needing a microphone. It also features a cabinet simulator and works incredibly well for both electric guitar and bass, giving you a consistent, strong signal for great tone every time!
At A Glance
• Guitar amp interface and cabinet simulator
• Direct amp recording without a microphone
• Works equally well on electric guitar and bass
• Delivers consistent tone every time
Ways To Use The JDX-500

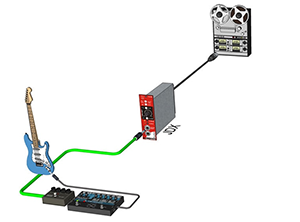

Direct Recording with the JDXPlug your guitar into some pedals and send the signal to the JDX to take advantage of the advanced multistage filter, without needing an amp or mic.

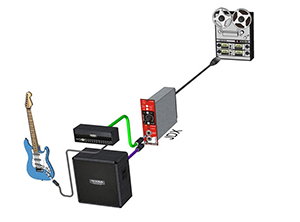

Using the JDX with your AmpThis is what real tone fanatics love! The JDX Reactor captures the sound of the head and the back impulse from the speaker cabinet, providing natural consistent tone.

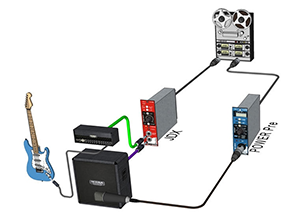

Combine the JDX with a MicCapture the direct sound and mix it with a mic in the room for huge guitar tones. Move the mic around or combine the direct feed with a Phazer.
The Tech Spec
| Features | Specification | Audio Circuit Type | 100 Percent Discrete Class-A, Transformer Coupled |
|---|---|
| Frequency Response | Custom Multistage Band-Pass Filter |
| Gain | +46dB |
| Total Harmonic Distortion | 0.004 Percent @ +4dBu |
| Intermodulation Distortion | >0.015 @ +15dBu |
| Noise | -100dBU @ 1kHz |
| Chassis | 14-Gauge Steel |
| Power Supply | 80mA |
| Dimensions (L x W x D) | 229mm x 165mm x 51mm 9" x 6.5" x 2" |
| Weight | 0.7kg 1.5lbs |
