QNAP TS-h2490FU-7232P-64G 24 Bay All-Flash Rackmount NAS

24 Bay QNAP TS-h2490FU-7232P 1U Rackmount NAS, 2.5" U.2 NVMe, AMD EPYC 7232P, 64GB DDR4 ECC, 25GbE SFP28, USB 3.2, RAID

Scan code: LN141389 Manufacturer code: TS-h2490FU-7232P-64G
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
Product Overview

QNAP TS-h1090FU-7302P 1U Rackmount NAS

The NVMe all-flash TS-h2490FU is engineered to deliver exceptional performance while staying cost-effective. Equipped with 24 U.2 NVMe Gen 3 x4 SSD bays, this model can achieve up to 661K / 245K random read/write IOPS with minimal latency. The QuTS hero operating system, based on ZFS, offers inline data deduplication and compression to reduce I/O and SSD storage usage, thereby prolonging the lifespan of SSDs while providing a superior price-performance ratio for all-flash storage arrays. With features like near-unlimited snapshots, real-time SnapSync, and the ability to scale storage to petabyte levels, the TS-h2490FU is well-suited for I/O-intensive and latency-sensitive applications, effectively eliminating bottlenecks in modern data centers, virtualisation, and critical backup/restore operations.


2nd Gen AMD EPYC & DDR4 ECC

The TS-h2490FU comes equipped with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Utilizing the "Zen 2" architecture and cutting-edge 7nm process technology, it offers up to 128 PCIe lanes of I/O for 32Gb/s dedicated bandwidth per SSD. Featuring DDR4 ECC memory that can detect and correct single-bit memory errors, this model provides 8-channel modules and 16 Long-DIMM slots to meet the demands of memory-intensive workloads. With its impressive computing power and multitasking capabilities, the TS-h2490FU is the perfect solution for high-performance requirements in HPC, virtualisation, and hybrid/multi-cloud applications.


U.2 NVMe Gen 3 x4 All-Flash Storage Array

The TS-h2490FU, a 2U rackmount unit, features 24 drive bays designed for U.2 NVMe Gen 3 x4 SSDs. Each SSD is allocated 32Gb/s of dedicated bandwidth, ensuring optimal application response times. With advanced ZFS data deduplication and SSD optimisation technologies, the TS-h2490FU offers a robust solution for addressing the challenges of complex and demanding data center workloads in today's dynamic environment.


Supports Larger U.2 SSDs

The U.2 NVMe SSDs now offer a maximum capacity of 61.44 TB, a significant increase from the previous 7.68 TB. This enhancement enables the TS-h2490FU all-flash NAS to deliver over 1 PB of raw capacity when fully utilised. It is well-equipped to handle demanding workloads in enterprise data centres, AI/machine learning, edge storage, and virtual machines effortlessly.


Quadruple 25GbE Ports

The TS-h2490FU offers cutting-edge network connectivity through two pre-installed dual-port 25GbE SFP28 SmartNICs, making use of either the Broadcom NetXtreme-E Series BCM57414, Mellanox ConnectX-4 Lx, or a similar SmartNIC. Featuring failover and Port Trunking for a maximum bandwidth of 100Gb/s, the TS-h2490FU equips your organisation with the necessary bandwidth to address even the most challenging applications, such as data centers, large file transfers, high-speed backup/restoration, and multimedia transmission.


M.2 PCIe NVMe SSD to U.2 Adapter

Utilise one or multiple QDA adapters in the TS-h2490FU to enhance PCIe bandwidth usage economically with M.2 PCIe NVMe SSDs instead of U.2 SSDs for improved performance in data-heavy tasks. This setup can enhance IOPS performance through SSD caching configuration. Drive health monitoring and SSD management can be done through the QTS Storage & Snapshots Manager. The M.2 SSD in the QDA adapter supports hot swapping.


Broaden I/O with QNAP Expansion Cards

The TS-h1090FU-7232P features three PCIe Gen 3 slots that enable the use of numerous QNAP expansion cards for application potential. Choose from 5/10/25/40GbE Network Cards, QM2 M.2 SSD/10GbE Cards and SAS/SATA Storage Expansion Cards to enhance your setup.


ZFS-Based QuTS Hero

QuTS hero integrates the app-based QTS with the 128-bit ZFS file system to offer versatile storage management, thorough data protection, and enhanced performance to address the challenges and performance requirements of contemporary IT. Whether it's storage management, virtualisation, or collaborative media workflows, QuTS hero simplifies your essential business operations. It supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sises, conserve storage capacity, and optimise performance. It's also trained manage data blocks during idle time, deleting, segmenting and writing.


SnapSync Disaster Recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately sent to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operation. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.


Low-Latency Cloud Access

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.


SR-IOV Capability

Installing a SmartNIC that supports SR-IOV (Single-Root I/O Virtualisation) on the TS-h2490FU enables the direct allocation of bandwidth resources from a physical network card to VMs. By bypassing the Hypervisor vSwitch, this setup improves I/O performance and network efficiency, resulting in more reliable VM applications and lower CPU overhead.


QNAP Productivity Apps

QNAP have developed a plethora of NAS apps to squeeze every last bit of performance out of this complex unit. Boxafe safeguards cloud date by backing up files, emails, calendars and contacts from Google & Microsoft services. Security Counsellor checks weakness and integrates anti-virus and anti-malware scanning software. Qsirch helps you quickly find media by keywords, colour and metadata.


Features

• Featuring an AMD EPYC 7232P processor.
• 64GB RDIMM ECC DDR4 (8 x 8GB, upgradeable to 4TB+)
• High-density all-flash storage.
• QuTS Hero delivers inline data deduplication and compression.
• 25GbE Future-Proof Connectivity with SFP28.
• High-Speed PCIe Gen 4 Slots for QNAP Expansion Cards and Larger SSDs.
• Virtualisation Apps such as Boxafe, QuMagpie & QuObjects.

Specifications
Edition TS-h2490FU-7232P-64G
NAS Form Factor 1U Rackmount
Bays 24 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity
Drive Interface Support
Drive Form Factor Support 24 x 2.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Type AMD EPYC™ 7002 Series
CPU Model AMD EPYC 7232
CPU Cores 8 Core
CPU Speed 3.2 GHz
RAM Memory Included 64GB
RAM Memory Type DDR4 ECC Registered
Max. RAM Memory Supported 4TB
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type SSD
LAN Type 10/100/1000/2000/2500
Expansion Slots 24 x U.2 PCIe Gen3x4

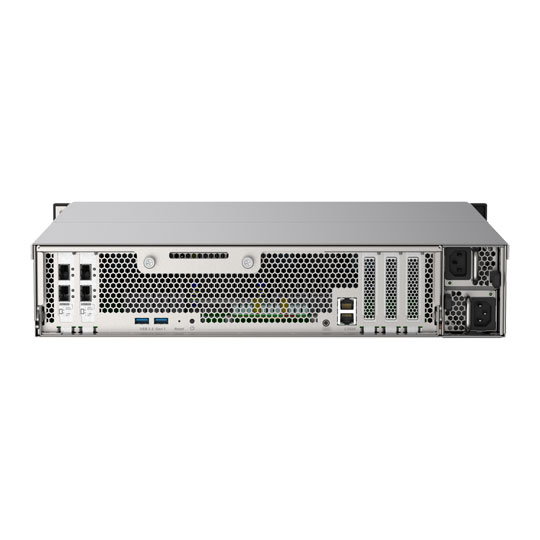

External Connectivity
  • 2 x RJ45
  • 4 x SFP+
  • 2 x USB 3.2 Gen1 Type-A
Cooling Fan
Noise Level
PSU Type Redundant
PSU Wattage 1100 (x2) W
Max. Power Consumption 1100 W
Physical Security
Dimensions 480.87 x 88.3 x 510.23 (WxHxD mm)
Weight 16.77 kg
Additional Information
Scan Code LN141389
Model Number TS-h2490FU-7232P-64G
GTIN 4713213518397
