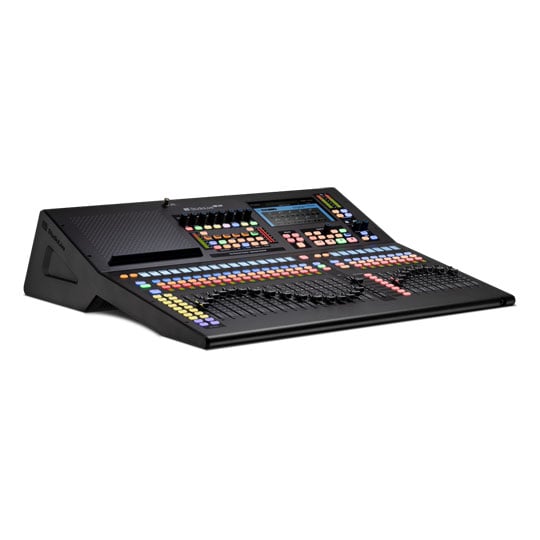

PreSonus StudioLive Series III SE 24 Digital Mixer
PreSonus - StudioLive Series III SE 24, 32-in Digital Mixer with 32 Mic Preamps
Email me when the availability or price changes
Finance this product
- From £66.94 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £59.29 / month (APR 15.9%)

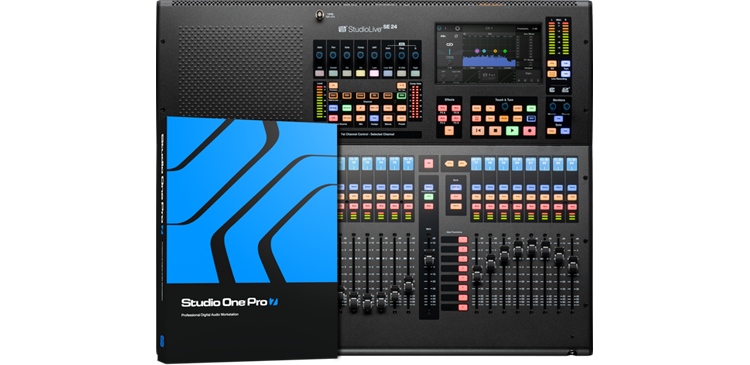

PreSonus - StudioLive Series III SE 24 Digital Console Mixer
featuring 32 digitally recallable XMAX preampsThe StudioLive SE 24 is a 40-channel small-format digital mixer with a full complement of analog I/O packed into a 25-fader chassis. The split-fader workflow options let you manage your mix in two efficient fader layers while providing access to your mix outputs on eight additional faders. Equipped with 32 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 24 makes your mixes sound better, faster. Managing large channel counts has never been easier thanks to 16 FlexMixes that can be configured as subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus making it easy to create the perfect front- and side-fill mixes for large venues or producer mixes for broadcast applications. You also get 24 DCA groups, 4 dedicated subgroup mixes, and 4 FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.
When you’re ready to integrate backing tracks, record your show, or mix your next album, the StudioLive SE 24 has you covered with an integrated, continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder plus a complete suite of integrated software that features both Capture multitracking and virtual soundcheck software as well as a perpetual license of Studio One Pro. Each channel can easily switch between analog, USB, SD, and AVB sources, making integrating your analog and digital gear easier than ever before.
More than a mixer, StudioLive SE 24 is part of a complete ecosystem of hardware and software. Remotely control your mixer or dial in an Offline mix with Universal Control from your computer or tablet. Launch PreSonus Metro and you can control your mixer over the internet from anywhere in the world with real-time audio monitoring. Built-in, Milan-certified AVB audio networking, makes it easy to integrate with stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.
at a glance
• Portable and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.
• 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus.
• Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.
• Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software with automated Virtual Soundcheck.
• Free Universal Control lets you remotely control your mixer, dial in mixes on- or offline, or listen in and control your mixer over the Internet using PreSonus Metro.
• Includes both Studio One Pro DAW and Capture Multitrack software.
Features
Integrated Multitrack Recording
• Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
• One-click Virtual Soundcheck with Capture
• Seamless compatibility with Studio One Pro and leading DAWs
Pristine Studio Sound on Stage
• 33 XMAX-Remote preamps for transparent analog tone and digital recall
• 32-bit floating-point DSP processing
• 115 dB A/D–D/A converters with ultra-low jitter clocking
Expanded Routing and I/O
• 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
• AVB networking with StudioLive Stage Boxes and Milan-compatible gear
• Four dedicated effects buses, four subgroups, and 24 DCAs
Advanced Fat Channel Processing
• Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
• All 7 EQs and 8 Compressors from the Fat Channel Collection included
• Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
• Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
Metro™ Remote Access and Universal Control
• Control every aspect of your mix remotely—from routing to effects
• Provide technical support and reconfiguration remotely
• Use QMix®-UC for personal monitor mixing from mobile devices
Mixing Comfort and Control
• 25 touch-sensitive motorized faders deliver smooth automation and tactile mixing
• Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort
Exploring StudioLive Series III SE Digital Mixers | PreSonus
The Tech Spec
| Features | Specification | Electronics | Headphone Jack - 1/4" TRS Active Stereo Voltage - 230V UK Power Consumption - 85W (Continuous) Phantom Power - +48 VDC (±2 VDC) |
|---|---|
| Performance | Digital Audio Bit Depth - 24 Digital Audio Dynamic Range - ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) Digital Audio Reference Level For Zero dBFS - +18 dBu Digital Audio Total System Latency - 1.9 ms (local routing, analog in-analog out, all processing active) |
| Inputs | Line Input Connection Type - 1/4" TRS Female, Balanced Line Inputs Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain) Line Inputs Impedance - 10 kΩ Line Inputs Maximum Level - =+18 dBu Line Inputs Signal To Noise Ratio - 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted) Line Inputs Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted Microphone Input Connection Type - XLR Female, Balanced Microphone Preamp Common Mode Rejection Ratio - 65 dB (1 kHz at Unity Gain) Microphone Preamp Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain) Microphone Preamp Gain Control Range - 0 dB to 60 dB (±1 dB) Microphone Preamp Input Impedance - 1 kΩ Microphone Preamp Maximum Input Level - =+12 dBu (Unity Gain) Microphone Preamp Signal To Noise Ratio - 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) Microphone Preamp Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted Tape Maximum Input Level - +12 dBu, ±0.5 dBu |
| Outputs |
Headphone Outputs Frequency Response - 20 Hz to 20 kHz, +/-0.5 dB Headphone Outputs Maximum Output - 100 mW/ch. @ 60Ω load Headphone Outputs Signal To Noise Ratio - 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Headphone Outputs Total Harmonic Distortion - 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Line Outputs Connection Type - 1/4" TRS Female, Balanced Line Outputs Maximum Output Level - =+18 dBu, ±0.5 dBu Line Outputs Output Impedance - 100 Ohms Tape Maximum Output Level - +18 dBu, ±0.5 dBu Tape Output Impedance - 100 Ohms |
| Hardware | Digital Audio AES EBU Output - XLR Male Digital Audio AVB Audio Network Ports - Neutrik® etherCONN® Digital Audio Network Control Port - RJ-45 Digital Audio USB Recording Port - USB 2.0, Type-B Tape Connection Type - RCA Female, Unbalanced (Stereo Pair) |
| Measurements | Dimensions - 16.51x66.04x58.42 CM Shipping Weight - 13.62 KG Product Depth - 22.97” (583.84 mm) Product Height - 6.51” (165.36 mm) Product Width - 25.98” (659.81 mm) Shipping Length - 58.42 CM Shipping Height - 16.51 CM Shipping Width - 66.04 CM |
