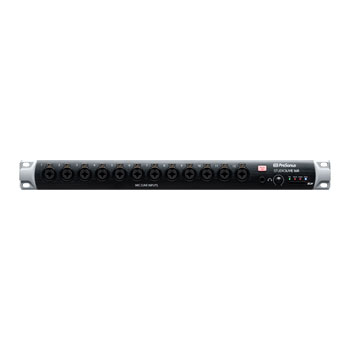

PreSonus StudioLive Series III 16R Digital Rack Mixer
PreSonus - StudioLive Series III 16R, 18-Input, 18-Channel Rack Mixer with Stagebox and Monitor Mixer Modes
Email me when the availability or price changes
Finance this product
- From £31.27 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £29.47 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Digital Rack Mixer
PreSonus - StudioLive Series III 16R
18-input, 18-channel rack mixer with stagebox and monitor mixer modesThe PreSonus StudioLive 16R digital mixer is four audio tools in a single rackspace. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. If used standalone or as part of a complete audio system, no other rackmount digital mixer has as much power and versatility.
Inside the StudioLive 16R, the single-core PreSonus FLEX DSP Engine powers 18 mixing channels, 10 mix buses, and 130 simultaneous processors, including 2 stereo effects and Fat Channel plug-in models on every input channel and mix bus. This 16-channel digital mixer that can comfortably fit in any size rig. Just connect it to a standard wireless router and control every mix parameter from your iPad, Android tablet, or Windows Touch computer using Universal Control. Universal Control was designed to make mixing on a touch screen as intuitive as mixing on faders.
An integrated 36-channel (18x18) audio interface allows you to record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analogue studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 16R and inside Studio One, providing the ultimate mixing and recording flexibility.
At A Glance
• Powered by the new single-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 18 input-channel digital rack mixer with 16 digitally controlled XMAX mic/line inputs, 2 FLEX FX returns, 10 mix buses, 6 FlexMixes, 2 dedicated FLEX FX buses, Stereo Main bus
• 130 simultaneous processors: HPF, Gate/Expander, Compressor with Limiter and 4-band/6-band parametric EQ with Fat Channel plug-in models
• State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• 36-channel (18x18) recording over USB
• 6 DCAs to control groups of channels
• 31-band graphic EQ
The Perfect Personal Monitoring System
more power, more versatilityWhen used with up to 16 EarMix 16M personal monitor mixers, the StudioLive 16R is the most powerful personal monitoring hub available.
With 6 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 16R makes it easy to create simplified mixes for musicians on stage. No other personal monitoring system provides as much power and flexibility.

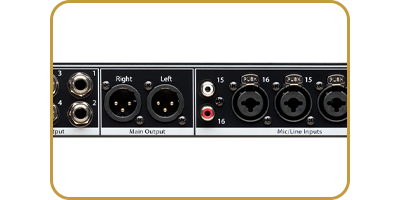

The Digital Stage Box
easy routingAs a digital stage box, the StudioLive 16R offers 16 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel.
The outputs of the StudioLive 16R automatically mirror the mixes available on your console mixer, making routing fast and easy.

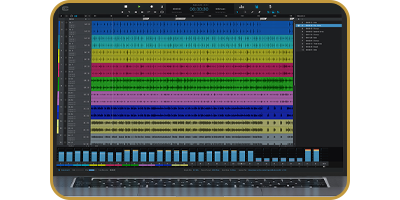

One-Click Recording
seamless workflowThe StudioLive 16R is tightly integrated with PreSonus Capture live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. What's even better is your Capture sessions open natively in Studio One!
Studio One Pro 7 DAW Software License Included
more toolsYour hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.

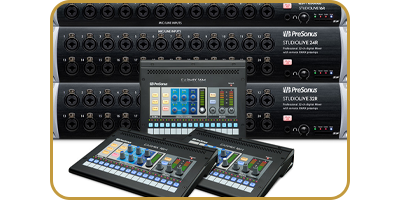

PreSonus StudioLive Series III Rack Mixers
The Tech Spec
| Features | Specification | Type | Rackmount Digital Mixer |
|---|---|
| Channels | 18 x 18 (USB), 32 x 32 (AVB networking) |
| Inputs - Mic Preamps | 16 x XLR-1/4" combo (mic/line) |
| Phantom Power | Yes |
| Inputs - Other | 1 x Dual RCA Stereo |
| Outputs - Main | 2 x XLR |
| Outputs - Direct | 6 x 1/4" (mix out) |
| Data I/O | 1 x EtherCon (AVB), 1 x RJ-45 (network control) |
| USB | 1 x Type B |
| Computer Connectivity | USB (18 x 18), Ethernet (AVB, 32 x 32) |
| Headphones | 1 x 1/4" TRS |
| EQ Bands | 4-band/6-band Parametric EQ, 31-band Graphic EQ |
| Effects | Studio Magic Plug-in Suite |
| Signal Processing | Gate, Compressor, Limiter |
| Features | Onboard stereo SD recorder, Metro remote-control (UC 4.2) |
| Software | Studio One+ Hybrid, Studio Magic Plug-in Suite, Presonus Capture, UC Surface |
| Rackmountable | Yes |
| Dimensions | Width: 19" Height: 1.75" Depth: 12" |
| Weight | 8.6 lbs. |
