PreSonus - StudioLive SE 16R Digital Rack Mixer

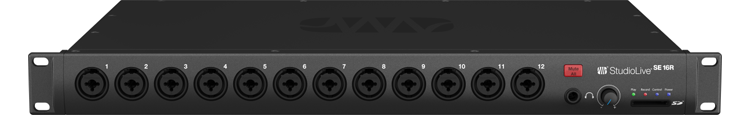

18-Channel Digital Rack MixerThe 18-channel StudioLive SE 16R packs the power of a large-format digital mixer into a sleek rackmount design. Equipped with 16 fully recallable XMAX-R mic preamps and powered by the PreSonus FLEX DSP Engine, it delivers vintage-style EQ and compression options on every channel and bus for musical, studio-quality sound.
Six FlexMixes can be individually configured as aux mixes, subgroups, or matrix mixes, giving the SE 16R exceptional flexibility for live sound, broadcast, and installed applications. Two dedicated FX mixes with stereo returns provide lush reverbs and delays without consuming valuable buses.
For recording and playback, the StudioLive SE 16R features a continuously bidirectional 18x18 USB 2.0 audio interface, onboard stereo SD recording, and tight integration with included Capture multitrack recording software with Virtual Soundcheck. Each channel can switch between analog, USB, SD, and AVB sources, making hybrid workflows effortless.
Built-in Milan-certified AVB networking allows the SE 16R to function as a plug-and-play stagebox or monitor mixer for StudioLive Series III consoles, while optional AVB-D16 support adds Dante connectivity when required. Universal Control remote mixing software provides complete wireless control, with Offline Editor support for mix preparation anywhere.
at a glance
• 18-channel digital rack mixer with 16 XMAX-R recallable mic preamps
• 6 FlexMixes configurable as aux, subgroup, or matrix mixes
• 2 dedicated FX mixes with stereo returns
• Continuously bidirectional 18x18 USB 2.0 audio interface
• Onboard stereo SD recording
• Virtual Soundcheck with Capture software
• Milan-certified AVB networking for StudioLive Series III systems
• Per-channel source switching (Analog, USB, SD, AVB)

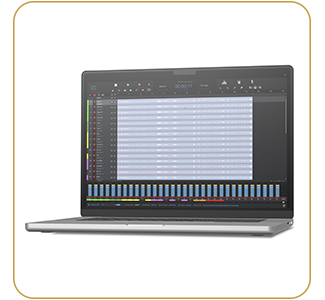

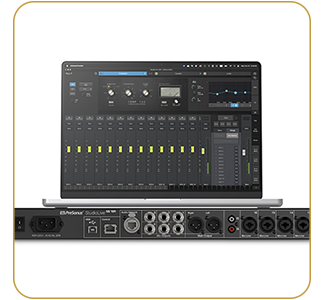

• Universal Control remote mixing and Offline Editor

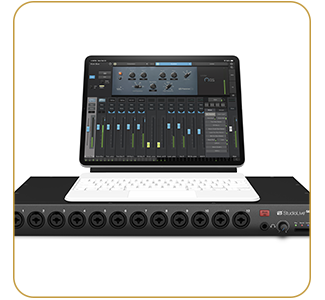

• QMix-UC personal monitor mixing with Wheel of Me
• Standalone, monitor mixer, interface, or stagebox modes
• Perpetual license for Fender Studio Pro included
Why Choose PreSonus' StudioLive SE 16R Digital Rack Mixer?

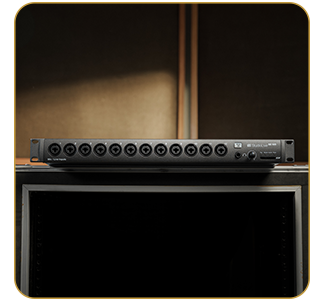

COMPACT, TOUR-READY MIXING18 channels with full recallable preamps and DSP power in a 1U rack.
FLEXIBLE ROUTINGConfigurable FlexMixes, FX buses, and DCAs make creating studio-quality mixes fast and easy.
SEAMLESS RECORDINGMultitrack USB with Capture integration and Virtual soundcheck plus stereo SD recording onboard.
WIRELESS AND NETWORK READYMilan-certified AVB networking, Universal Control, and QMix-UC for total workflow freedom.
FENDER STUDIO PRO INTEGRATIONDeep integration with Fender Studio Pro simplifies recording with direct preamp control and seamless switching between onboard and plug-in processing with Fat Channel XT.
The Tech Spec
| Features | Specification | Electronics | Headphone Jack - 1/4" TRS Active Stereo Voltage - 230V UK Power Consumption - 35W (Continuous) Phantom Power - +48 VDC (±2 VDC) |
|---|---|
| Performance | Digital Audio Bit Depth - 24 Digital Audio Dynamic Range - ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) Digital Audio Reference Level For Zero dBFS - =+18 dBu Digital Audio Total System Latency - 1.9 ms (local routing, analog in-analog out, all processing active) |
| Inputs | Line Input Connection Type - RCA Female, Unbalanced (Stereo Pair) Line Inputs Maximum Level - +12 dBu, ±0.5 dBu Microphone Input Connection Type - Combo Locking XLR Mic - 1/4” TRS Line Microphone Preamp Common Mode Rejection Ratio - 65 dB (1 kHz at Unity Gain) Microphone Preamp Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain) Microphone Preamp Gain Control Range - 0 dB to 60 dB (±1 dB) Microphone Preamp Input Impedance - 1 kΩ Microphone Preamp Maximum Input Level - =+12 dBu (Unity Gain) Microphone Preamp Signal To Noise Ratio - 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) Microphone Preamp Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Outputs | Headphone Outputs Frequency Response - 20 Hz to 20 kHz, +/-0.5 dB Headphone Outputs Maximum Output - 100 mW/ch. @ 60Ω Load Headphone Outputs Signal To Noise Ratio - 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Headphone Outputs Total Harmonic Distortion - 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Line Outputs Connection Type - 1/4" TRS, Balanced Line Outputs Maximum Output Level - =+18 dBu, ±0.5 dBu Line Outputs Output Impedance - 100 Ohms |
| Hardware | Digital Audio AVB Audio Network Ports - Locking XLR, Ethernet Digital Audio Network Control Port - RJ-45 Digital Audio USB Recording Port - USB 2.0, Type-B |
| Measurements | Shipping Dimensions - 15.24x45.72x62.23 CM Shipping Weight - 6.17 KG Shipping Length - 62.23 CM Shipping Height - 15.24 CM Shipping Width - 45.72 CM Product Depth - 12" (30.5 cm) |
