Presonus Studiolive NSB 8.8, 8x8 AVB-Networked Stage Box
Presonus Studiolive NSB 8.8 - 8-in, 8-out AVB-Networked Stage Box
- SCANPROTECT Protect against installation damage for 28 days. More info
8x8 AVB-Networked Stage Box
PreSonus - NSB 8.8

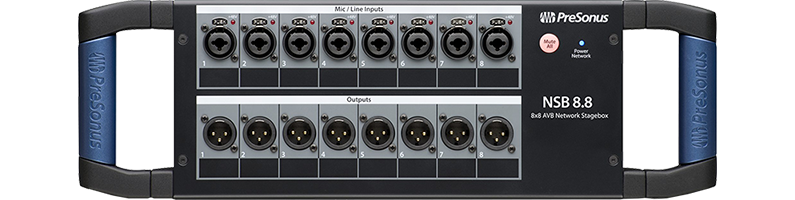

Inputs & outputs wherever you need themThe PreSonus NSB 8.8 networked stage box allows you to put your analogue I/O for your StudioLive® Series III digital mixer right where you need it. Featuring eight digitally controlled XMAX mic preamps, eight balanced line-level inputs, and eight analogie outputs, the NSB 8.8 integrates seamlessly into StudioLive Series III digital mixers using just a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.
At A Glance
• 16 x 8 AVB (8 direct input channels + 8 gain-compensated input channels)
• 8 locking, remote controllable combo mic/line inputs
• 2 AVB ports with locking XLR Ethernet jacks
• 8 remote-controllable XMAX preamps
• 8 locking XLR line outputs
Designed To Be Shared
Powerful connectivityThe NSB 8.8 networked stage box comes with eight versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line-level devices, the NSB 8.8 is capable of it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, gain compensation means every mixer gets individual gain control without affecting the front-of-house mix.
flexible installationPreSonus built the NSB 8.8 within a rugged steel chassis with sturdy handles designed to withstand the rigors of the most demanding tours. The NSB 8.8 is also install-friendly, just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.
A Complete Networked Solution
Quick ConfigurationThe StudioLive Series III ecosystem of networked products are at the forefront of AVB networking technology. Made to work well together, the ecosystem is easily expanded and quickly configured.
The StudioLive 24R brings together the powerful processing for which StudioLive Series III mixers are known with versatile modes to go perfectly with console mixers and EarMix 16M personal monitoring mixers. When used on its own as a digital mixer and audio interface, or paired with other StudioLive Series III ecosystem products, the StudioLive 24R joins flexibility with DSP power to become the ultimate compact audio solution.
PreSonus NSB Stage Boxes
The Tech Spec
| Features | Specification | Type | Digital Stage Box |
|---|---|
| Compatibility | Presonus StudioLive Series III (AVB network) |
| Channels | 8 x 8 |
| Inputs - Mic Preamps | 8 x XLR-1/4" combo (mic/line) |
| Phantom Power | Yes |
| Outputs - Main | 8 x XLR |
| Data I/O | 2 x EtherCon (AVB network) |
| Software | Presonus UC Surface control software |
| OS Requirements - Mac | Mac, iPad |
| OS Requirements - PC | Windows, Android |

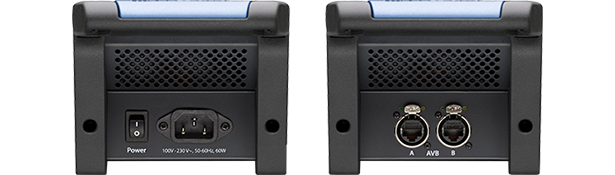

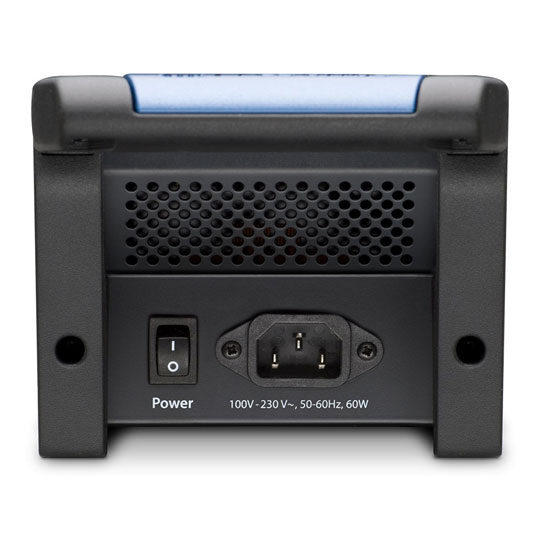

| Power Source | Locking IEC AC jack |
| Dimensions | Width: 16.7" Height: 5.2" Depth: 4.5" |
| Weight | 5.4 lbs. |
