PreSonus StudioLive 16.0.2 USB 16-Channel Digital Mixer with USB
PreSonus StudioLive 16.0.2 USB 16-Channel Digital Mixer with 12 XMAX Preamps, QMix, Built-in DSP Effects, USB 2.0 Audio
- SCANPROTECT Protect against installation damage for 28 days. More info

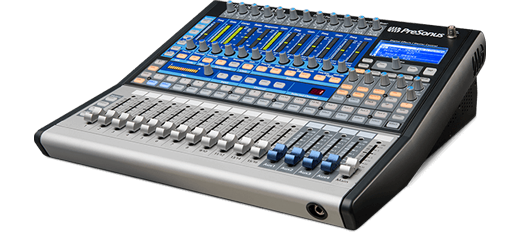

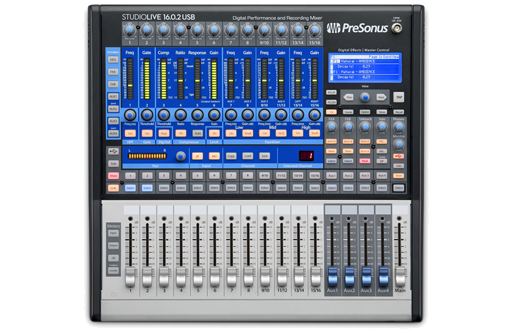

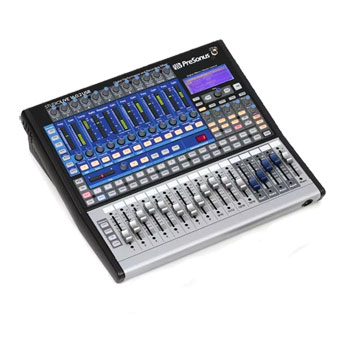

16-Channel Digital Mixer
PreSonus - 'StudioLive 16.0.2 USB'
16-channel Digital Mixer
with 12 XMAX PreampsWhether it’s mixing a live event or you’re recording an artist in the studio, it’s important you’re able to work in a timely fashion. The ‘StudioLive 16.0.2 USB’ from PreSonus features a familiar, simple-to-use interface which ensures all critical controls are easily visible and easily accessible, rather than buried deep inside menus. The design philosophy PreSonus employed here is a simple one: One fader for each mono or stereo channel; one output for each bus.
PreSonus included quickly accessed, colour-matched function buttons too, alongside rotary trim controls; and clearly labelled, individual knobs for EQ and dynamics processing. Even the Aux sends feature their own physical controls! But don’t let all this analogue feel fool you, PreSonus’ ‘StudioLive 16.0.2 USB’ boasts all the power of modern digital mixing, multitrack recording, wireless control and so much more!
USB (16 x 16)Computer Connectivity
16 x 16Channels
12 x XLRMic Preamps
at a glance
• 16 Total Input Channels
• 8 Mono Mic & Line Input Channels
• 4 Stereo Line Channel Inputs
• Full Dynamics Processing
• Twelve Class-A XMAX Mic Preamps
• Two 2-Bit Digital Effects Processors
• iPad, iPhone, or Laptop Remote Control
Small Size. Big Possibilities.
12 XMAX preampsIn a footprint of less than 2 square feet (0.19 square meters), the compact, 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader.
There's generous analogue I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it’s so lightweight and compact that you can easily hold it in one hand and tuck it under your arm!
Never Run Out of Signal Processors Again!

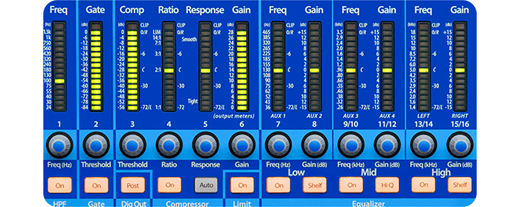

'Fat Channel'StudioLive 16.0.2 USB mixers provide plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats.
The unique Fat Channel provides a compressor, limiter, expander, and 3-band semi-parametric EQ on every channel and bus; a highpass filter on each channel; phase reverse for the channel mic preamps; a library of professionally crafted presets; and the ability to save and selectively recall processor settings. A stereo, 31-band graphic EQ sits on the main bus. To top it off, you get two 32-bit delay/reverb effects processors, each with its own dedicated mix bus and a library of useful effects presets.
Integrated, Multiplatform Software
...for flexible control and one-click recording!Like all PreSonus StudioLive mixers, the StudioLive 16.0.2 USB is tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly or over a wired network from anywhere using UC Surface touch-control software for Mac, Windows, Android™, and iPad®. Control individual monitor mixes onstage with QMix®-UC for iPhone®/iPod® touch and Android™.
Automate virtual soundchecks and record shows with Capture™ for Mac and Windows. Edit, sweeten, and digitally release your recordings with Studio One Artist. StudioLive 16.0.2 USB mixers and software work together to form a cohesive ecosystem that helps you achieve your creative vision.
Dedicated Analogue Connections...

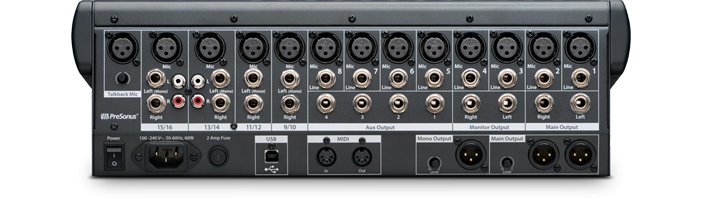

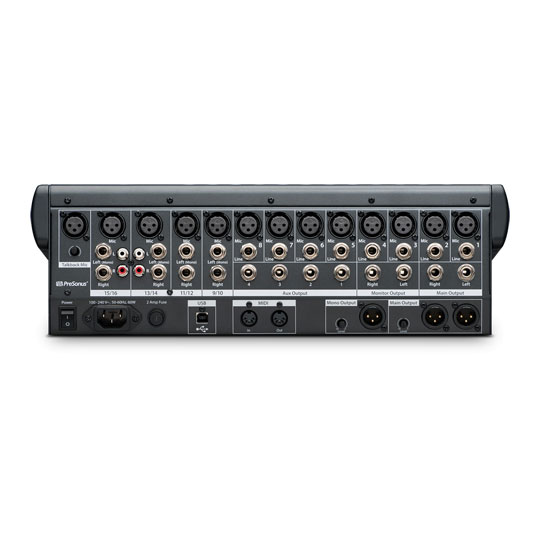

...for a predictable signal flowTake a look at back panel of a StudioLive 16.0.2 USB mixer, and you’ll find the robust connections you’d expect from an analogue mixer: balanced mic inputs on each of the 8 mono channels; 8 balanced ¼-inch line inputs; 4 unbalanced RCA line inputs; and dedicated balanced outputs for each of the 4 aux buses and the main stereo bus.
Every input channel and bus send has its own dedicated jack—no sharing, no compromises—so you always know what’s flowing from each output.
The Tech Spec
| Features | Specification | Type | Digital Mixer |
|---|---|
| Channels | 16 x 16 |
| Inputs - Mic Preamps | 12 x XLR |
| Phantom Power | 12 channels |
| Inputs - Line | 8 x 1/4", 8 x 1/4" (4 x stereo channels), 2 x Stereo RCA pair |
| Outputs - Main | 2 x XLR (L/R), 1 x XLR (Mono), 2 x 1/4" TRS (L/R), 2 x 1/4" TRS (monitor) |
| Aux Sends | 4 x 1/4" TRS |
| Busses/Groups | 4 x Aux, 2 x FX buses |
| Talkback | 1 x XLR |
| USB | 1 x Type B |
| Computer Connectivity | USB (16 x 16) |
| Headphones | 1 x 1/4" (TRS) |
| Faders | 12 x 60mm |
| EQ Bands | 3-band semi-parametric EQ, 31-band Graphic |
| Effects | 2 x stereo 32-bit digital effects processors |
| Signal Processing | Fat Channel processing |
| Software | Studio One Artist, Capture, UC Surface control, QMix-UC |
| Rackmountable | Yes |
| Weight | 20 lbs |
