PreSonus AudioBox USB 96 Interface

PreSonus AudioBox USB® 96, 2x2 USB Audio Interface for Musician, Producer, Podcasters, Mac, Windows PC Compatible

Thumbnail 1 : PreSonus AudioBox USB 96 Interface Thumbnail 2 : PreSonus AudioBox USB 96 Interface Thumbnail 3 : PreSonus AudioBox USB 96 Interface
Scan code: LN105960 Manufacturer code: AudioBox USB 96
Order now and receive it by Monday, 28th September
Delivery Options
  • By DPD On 28th Sep to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

AudioBox USB® 96: 2x2 USB 2.0 Audio Interface from PreSonus


Simple, reliable, and portableThe Presonus AudioBox USB® 96 is a simple, handy little audio/MIDI interface, it has just the right features for your basic recording needs, allowing you to plug in and start recording up to 24-bit, 96 kHz audio right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy, Whether you are a musician, producer, or podcaster this is the perfect choice.

Just Plug in and Start Recording

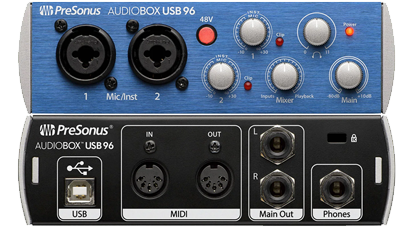

High-Definition Recording Made EasyThe AudioBox USB 96 audio interface’s two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.

Clean, Crystal Clear Sound


Roadworthy and ready to travelHere is a mobile audio interface in the best sense of the term. We gave the AudioBox USB 96 a heavy-duty steel chassis so it can take a serious pounding and remain completely reliable. Its screaming-loud headphone output ensures you can hear your music loud and clear, even in noisy locations. And it’s USB 2.0 bus-powered, so you can record with it anywhere you can use a laptop. Simply drop it in your laptop bag or slap it on a tabletop.

Light but built like a Tank


Built for the studio and the road Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 audio interface will give you great sound in a bus-powered, rugged chassis that's ready to hit the road when you are. The perfect companion for any recording software, the AudioBox USB 96 comes equipped with Studio One Artist to provide you with a complete recording solution right out of the box.

Make your own Magic

presonus 26c

World-class recording software included Flawlessly paired together and integrated with the included PreSonus Studio One Artist production software, intuitive and simple to get to grips with, Studio One allows you to be able to write, record and produce without the distraction of over-complicated UI’s and tools. Need a fresh loop for your latest project? No problem. Studio One lets you browse, demo and purchase new content right from your desktop. The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist

More info on Studio Magic

The Tech Spec

Microphone Preamp
Type XLR female balanced
Maximum Input Level -3 dBu
Gain Control Range 0 dB to 35 dB
Frequency Response 20 Hz to 20 kHz
S/N Ratio >95 dB
THD+N (unwtd, 1 kHz @ +4 dBu Output) < 0.008%
Input Impedance 1,200 Ω
Phantom Power +48 VDC
Instrument Inputs
Type ¼" TRS female balanced
Input Impedance > 1 MΩ
Instrument Inputs
Type ¼" TRS female balanced
Input Impedance 0.5 MΩ
Line Ouputs
Type ¼" balanced
Output Impedance 51Ω
Headphone Outputs
Type ¼" TRS active stereo
Maximum Output Level 60 mW/ch. @ 60Ω Load
Frequency Response 20 Hz - 30 kHz
Midi I/O
Type Dual 5-pin Female DIN
Digital Audio
ADC Dynamic Range 105 db
DAC Dynamic Range 105 db
Bit Depth 24
Internal Sample Frequency 44.1, 48, 88.2, 96
Power USB 2.0 Bus-Powered
Computer Interface Type USB 2
Connections (Input)
  • 1 x MIDI
  • 2 x XLR / Jack Combo
Mic Preamps (Max) 2
Instrument Inputs (Max) 2
Phantom Power Yes
Sample Rate (Max)
  • 44.1 kHz
  • 48 kHz
  • 88.2 kHz
  • 96 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output)
  • 2 x 6.35mm (1/4") TRS Jack
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
Dimensions (mm) 139.7 x 139.7 x 44.45 WxHxD
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN105960
Model Number AudioBox USB 96
GTIN 673454005381
