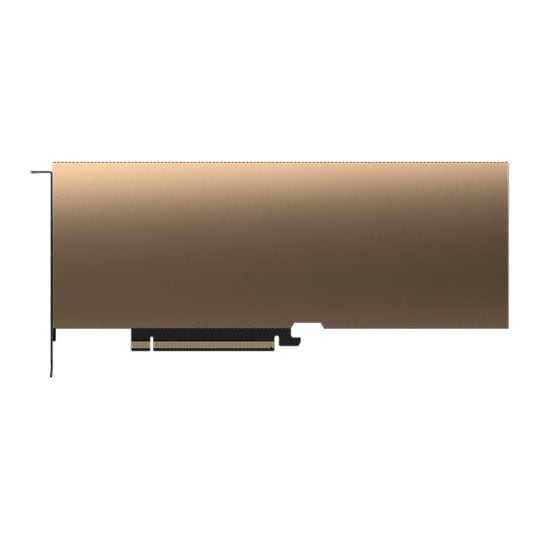

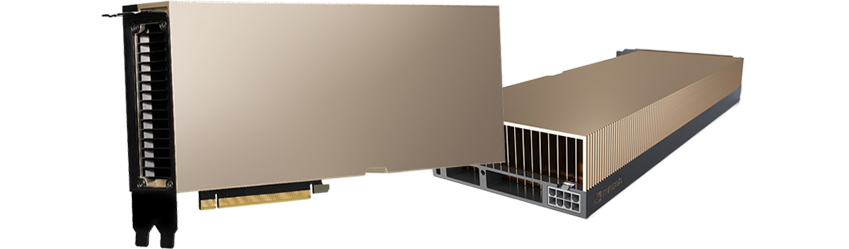

PNY NVIDIA A40 48GB Passive Ampere Graphics Card
PNY NVIDIA A40 48GB GDDR6 Passive Graphics Card, 10752 Cores
Email me when the availability or price changes
PNY NVIDIA A40 Powerful Ampere Data Centre Graphics Card
The World’s Most Powerful Data Center GPU for Visual Computing
NVIDIA® A40 delivers the data centre-based solution designers, engineers, artists, and scientists need to meet today’s challenges. Built on the NVIDIA Ampere architecture, the A40 combines the latest generation RT Cores, Tensor Cores, and CUDA® Cores with 48GB of graphics memory for unprecedented graphics, rendering, compute, and AI performance. From powerful virtual workstations accessible from anywhere, to dedicated render nodes, the A40 is built to tackle the most demanding visual computing workloads from the data centre.
PNY provides unsurpassed service and commitment to its professional graphics customers offering a 3 year warranty, pre- and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines.
48GB GDDR6 with ECCMemory
336/84Tensor/RT Cores
10,752CUDA Cores
696 GB/sMemory Bandwidth

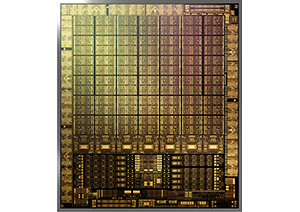

Groundbreaking Ampere Architecture
Ampere CUDA® CoresDouble-speed processing for single-precision floating point (FP32) operations and improved power efficiency provide significant performance improvements for graphics and simulation workflows, such as complex 3D computer-aided design (CAD) and computer-aided engineering (CAE).
2nd Gen RT CoresWith up to 2X the throughput over the previous generation and the ability to concurrently run ray tracing with either shading or denoising capabilities, 2nd Gen RT Cores deliver massive speedups for workloads like photorealistic rendering of movie content, architectural design evaluations, and virtual prototyping of product designs.
3rd Gen Tensor CoresNew Tensor Float 32 (TF32) precision provides up to 5X the training throughput over the previous generation to accelerate AI and data science model training without requiring any code changes. Hardware support for structural sparsity doubles the throughput for inferencing. Tensor Cores also bring AI to graphics with capabilities like DLSS, AI denoising, and enhanced editing for select applications.
3rd Gen NVLINKConnect two A40 GPUs together to scale from 48GB of GPU memory to 96GB. Increased GPU-to-GPU interconnect bandwidth provides a single scalable memory to accelerate graphics and compute workloads and tackle larger datasets. A new, more compact NVLink connector enables functionality in a wider range of servers.
PCI Express Gen 4PCI Express Gen 4 doubles the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI, data science, and 3D design. Faster PCIe performance also accelerates GPU direct memory access (DMA) transfers, providing faster I/O communication of video data between the GPU and GPUDirect® for Video-enabled devices delivering a powerful solution for live broadcast. A40 is backwards compatible with PCI Express Gen 3 for deployment flexibility.
Data Center Efficiency and SecurityFeaturing a dual-slot, power efficient design, NVIDIA A40 is up to 2X as power efficient as the previous generation and compatible with a wide range of servers from worldwide OEMs. The NVIDIA A40 also includes a CEC 1712 chip that enables secure and measured boot with hardware root of trust, ensuring that firmware has not been tampered with or corrupted.
48GB GPU MemoryUltra-fast GDDR6 memory, scalable up to 96GB with NVLink, gives data scientists, engineers, and creative professionals the large memory necessary to work with massive datasets and workloads like data science and simulation.
Virtualization-Ready Next-generation improvements with NVIDIA virtual GPU (vGPU) software allow for larger, more powerful virtual workstation instances for remote users, enabling high-end remote design, AI, and compute workloads. This will be available in an upcoming NVIDIA virtual GPU (vGPU) release for the A40.
Multi-Display Technology
large-scale display experiencesDrive massive cave automatic virtual environments (CAVEs), video walls, virtual sets and broadcast, and location-based entertainment deployments with support for multiple 8K monitors, NVIDIA Mosaic multi-display technology with bezel correction, and NVIDIA's Warp and Blend SDK. Synchronize multiple NVIDIA A40 GPUs with displays or projectors to create large-scale visualizations with NVIDIA Quadro Sync technology.
Video Encode and Decode
broadcast-grade streamingWith dedicated video encoder (NVENC) and decoder engines (NVDEC), access the performance needed to work with multiple streams simultaneously, export video faster, and use multi-stream video applications for broadcast, security, and video serving.
Immersive VR Experiences
AR and VR ExperiencesPower the most immersive augmented reality (AR) and virtual reality (VR) experiences on the highest-resolution head-mounted displays (HMDs) with accelerated graphics and increased display bandwidth. Four-way VR SLI enables peak performance, assigning 2 NVLink connected GPUs to each eye.

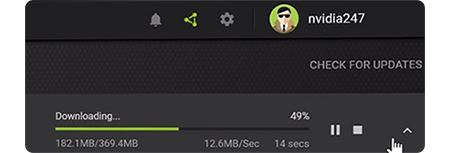

Enterprise Drivers
Stay up to dateVirtual workstations powered by Quadro Virtual Data Center Workstation (Quadro vDWS) software leverage the same Quadro platform as physical workstations, benefiting from extensive testing across a broad range of industry applications and certifications from over 100 independent software vendors (ISVs) to ensure optimal performance.

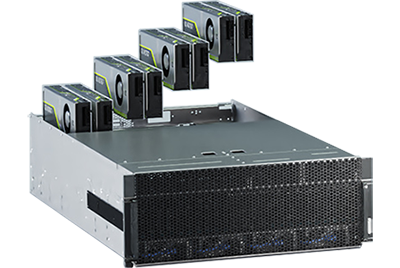

EGX Server for Professional Visualization
High-Performance Visual Computing The NVIDIA A40, along with NVIDIA vGPU software, is at the heart of the next-generation NVIDIA EGX™ server for professional visualization, delivering the performance and features that can power professional graphics and computing anywhere.
