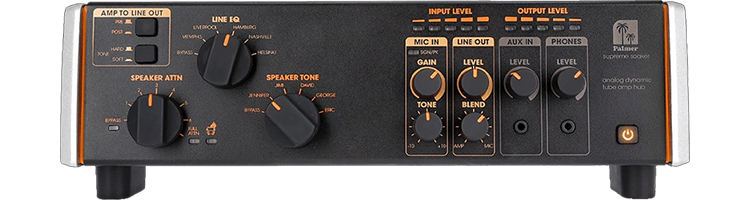

Palmer Supreme Soaker Analogue Dynamic Tube Amp Hub
Palmer - Supreme Soaker, Analogue Dynamic Tube Amp Hub, Reactive Attenuator & Loadbox, Analogue Speaker Simulator
Email me when the availability or price changes
Finance this product
- From £26.02 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £18.56 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Analogue Dynamic Tube Amp Hub
Palmer - Supreme Soaker
sweet spot sound at any volumeGet the full potential from your tube amp like never before with the Supreme Soaker! For decades, Palmer has been at the forefront of analogue amp tech. Following in the award-winning footsteps of their iconic PDI-09 and PDI-03 speaker simulators, you now have the latest innovation for the discerning guitarist: the Supreme Soaker. A pinnacle of analogue design, this dynamic tube amp hub allows you to enjoy your tube amp's tone, feel and dynamics to the fullest – any time and anywhere, and at any volume – with unparalleled precision and analogue purity.
If you make music at home or with others, the Supreme Soaker is the perfect way to control your amp's output for the right job. As a reactive attenuator and load box with a finely tuned analogue speaker simulator built in, the Supreme Soaker allows you to permanently dial in your amp’s sweet spot – at any volume – and it will quickly become your go-to device in any musical situation, from playing and recording at home to rehearsing with a band, and even playing live, without sacrificing any of your precious tone!
8/16 ΩLoad Impedance
150 WInput Handling
7-StepAttenuator
At a glance
• Reactive attenuator & loadbox
• Finely-tuned analogue speaker simulator
• Speaker output with unique tone control
• Microphone / line input (blendable with speaker simulator)
• Front-panel headphone output
• Stereo FX-loop
• Front-panel aux input
• Balanced stereo XLR-Line outputs
• Compatible with 8 and 16 ohm setups
• Rated for amps up to 150 Watt
• Amp protecting circuit with permanent amp load
• All analogue experience, no app required
Your Analogue Dynamic Tube Amp Hub
Reactive attenuator
and loadboxDial in your tube amp’s sweet spot at any volume, from silent to whisper quiet, room level to stage, no cabinet needed!
Five Finely-Tuned Analogue
Speaker Simulator SettingsSelect the speaker sim that coaxes the ultimate tones out of your rig - no need to mic up a cab ever again!
Unique speaker tone control with
five different worlds of soundShift the tonal range of your speaker cabinet to conjure up new sonic textures.
Speaker simulator
stereo fx-loopFull-on tube amp tones plus all your beloved fx pedals with 100% purity - no tonal compromises.
Authentic Analogue Speaker Tones
tonal blissThe LINE EQ and SPEAKER TONE controls will pave the way to tube amp tonal bliss!
Each control gives you access to five finely-tuned analogue emulations (plus a bypass option) so you can tweak your tone exactly how you want it and create new iconic worlds of sound, without menu diving.
For Stage, Studio and Silent Practice
supreme sound experienceIf you’re playing a show or practicing at home, the Supreme Soaker has you covered. At gigs, use the Mic/Line In to blend your favourite cab/mic combo with the Supreme Soaker’s speaker simulator for a supreme analogue sound experience.
When you need to be quiet, the Headphone Out is your friend. And if you want to jam along to backing tracks, or even play to a click, the Aux Input makes this extremely convenient.
All The Connections A Modern Guitarist Needs
simple connectivitySet up your stereo (and mono!) FX pedals up to the Supreme Soaker to hear everything exactly the way it was meant to be. If you love to record, the balanced stereo XLR Line Outputs offer the key to pro level studio tracks. If you’re into reamping – the Reamp Out on the Supreme Soaker makes reamplification nice and simple.
Exploring the Palmer Supreme Soaker
Attenuator, Load Box, Speaker Simulator and more
The Tech Spec
| Features | Specification | Product type | Attenuator, DI box, Headphone Amp:, load box, Microphone preamplifier, power soak, Re-amping device analogue, speaker simulator |
|---|---|
| Signal processing | Analogue |
| Front panel controls | 7-Step Speaker Attenuation, Aux In Level, Hard/Soft Tone Selector, Line EQ (5 Voicings), Line Out Blend, Line Out Level, Mic Gain, MIC Tone, Phone Level, Pre/Post Switch (Amp to Line Out), Speaker Tone (5 Voicings) |
| Rear panel controls | Amp Load Impedance Switch, FX Level (Pro/Instrument), FX Loop Line Out, FX Loop Re-Amp, GND/Lift, MIC/LINE Input PAD, Phantom Power, Polarity |
| Number of inputs | 5 |
| Input type | Balanced, Unbalanced |
| Input connectors | 3.5 mm jack, 6.3 mm jack, XLR |
| Number of outputs | 6 |
| Output type | Balanced, Unbalanced |
| Output connectors | 3.5 mm jack, 6.3 mm jack, XLR |
| Ground/lift switch | Yes |
| Transformer isolated outputs | Yes |
| Internal load impedance | 16 ohms, 8 ohms |
| Minimal load in OFF status | 16 ohms |
| Max input handling | 150 W |
| Power attenuator | 7-step |
| Voicing filter | 5-step Speaker Tone and 5-step Line EQ |
| Indicators | Bypass, Full attenuation, input level, MIC-Signal/Clip, Output level, power soak, thermal overload |
| Power supply | + 9 V DC barrel jack - 1.5 A |
| Power supply polarity | Center negative |
| Power connector | 2 x 5.5mm |
| Maximum power consumption | 13.5 W |
| Standby power consumption | 0.3 W |
| Dimensions (W x H x D) | 334 x 108 x 274 mm |
| Weight | 6,6 kg |
| Ambient temperature (in operation) | - 20°C - 25 °C |
| Relative Humidity | < 80 % ( non-condensing ) |
| Accessories (included) | Power supply |
| Audio inputs | LINE OUT max. output level (<1% THD): + 18 dBu RE-AMP max. output level (<1% THD): + 1.5 dBv PHONES OUT max. output level (<1% THD, 1kHz): 1.4 V RMS PHONES OUT min. impedance: 33 Ohm |
| MIC / LINE Input | MIC / LINE IN low cut frequency (-3dB): 90 Hz MIC IN max. gain: 58 dB MIC / LINE IN Gain range: 0 - 25 dB MIC IN (XLR) max. input level (< 1% THD, 1kHz): + 1 dBu LINE IN (TRS) max. input level (< 1% THD, 1kHz): + 22 dBu MIC IN to LINE OUT THD+N (1kHz, +4dBu): < 0.006 % MIC IN to LINE OUT THD+N (20Hz-20kHz, +4dBu): < 0,04 % MIC IN to LINE OUT EIN (max. gain, unweighted): - 114 dBu MIC IN to LINE OUT SNR (all bypass): 105 dB MIC/LINE IN PAD attenuation: 20 dB MIC IN (XLR) input impedance (balanced): 1500 Ohm(s) LINE IN (TRS) input impedance (balanced): 24000 Ohm(s) |
