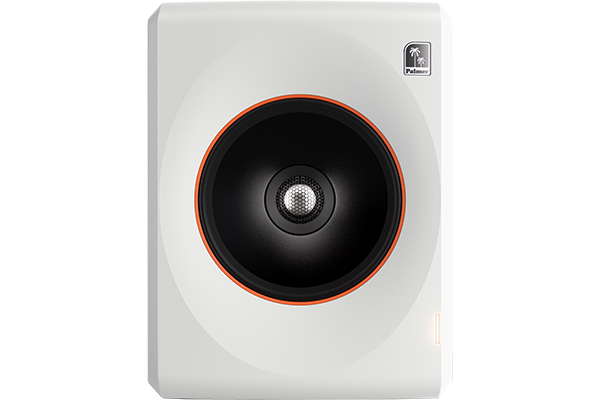

Palmer Orbit 11 - White Active Coaxial 3-way Studio Monitor, White
Palmer - Orbit 11, Active Coaxial 3-way Studio Monitor, 96 kHz / 24-bit DSP & AD/DA, Linear-phase FIR Processing (White)
Email me when the availability or price changes
Finance this product
- From £24.13 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £17.21 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
HEDD TYPE 05 MK2 Black - Nearfield Monitor with 5" Bass Driver, Built in LineariserHEDD TYPE 05 MK2 Black
LN112265
No customer review
Active Coaxial 3-way Studio Monitor
Palmer - Orbit 11
(White)
for those who listenThe Palmer ORBIT 11 brings together a coaxial true point source, impulse-compensated dual woofers and a cardioid front baffle to deliver precise imaging, deep controlled bass and a stable stereo field from an ultra-low-resonance aluminium enclosure. Its high-resolution 96 kHz/24-bit DSP with FIR filtering for linear-phase behavior delivers a clear, time-coherent performance. The top-mounted control panel provides direct access to the setting for fast setup. Connectivity options include analogue and AES3 inputs, as well as AES3 Thru output for easy daisy-chaining.
6.5" + 1" CoaxialTrue Point Source
28 Hz – 28 kHzFrequency Response (-3 dB)
96 kHz / 24-BitDAC & DSP
At A Glance
• Coaxial point source (6.5" midrange and 1" tweeter)
• Impulse-compensated dual 8" woofers for precise, resonance-free bass
• 3-way design for precision and clarity across the entire frequency range
• A 1000W Class-D amplifier ensures a high dynamic range
• Cardioid design for controlled directivity and reduced spatial reflections
• 120° × 120° constant directivity for uniform radiation
• FIR filter for linear phase with minimal latency
• Ultrawide frequency range (28 Hz–28 kHz @ -3 dB)
• Advanced low-end design improves wall coupling and reduces cancellations
• Clear control panel with table and wall presets for efficient setup
Please note: Some of the images used below are for display purposes only. This is the WHITE model.
Sounds Honest, Goes Deep and Inspires Creativity

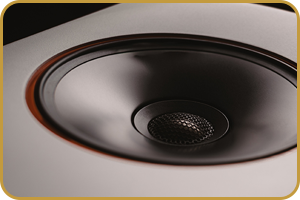

Coaxial precisionThe coaxial 6.5" midrange and 1" tweeter share the same acoustic axis for highly coherent and accurate sound imaging.
Cardioid controlThe ORBIT 11 reduces rearward radiation in the mid and high frequencies above 250 Hz to maintain a clean and focused sound image.

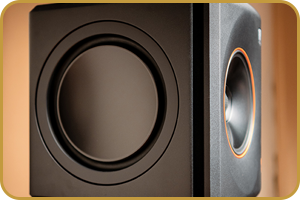

Dual-woofer powerTwo 8" woofers operate in opposite directions to eliminate cabinet vibrations and maintain a tight, controlled low end.
Adaptive monitoringA top-mounted interface gives direct access to presets and EQ adjustments without reaching behind the speaker.

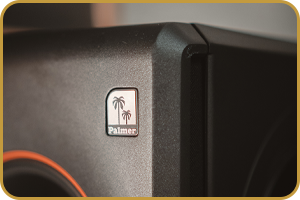

Resonance-free housingThe die-cast aluminum enclosure supports precise, clean sound reproduction without coloration.

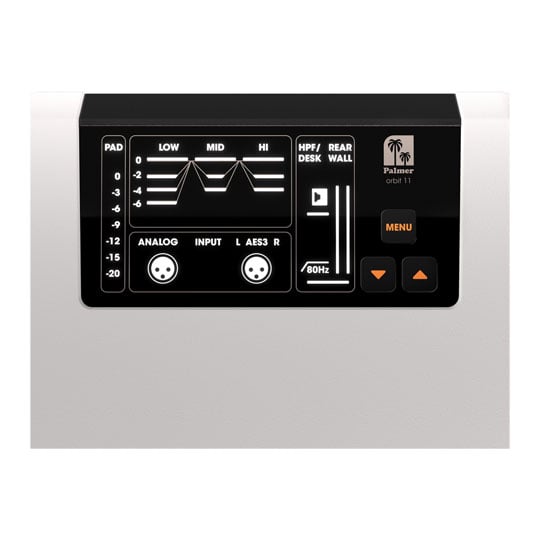

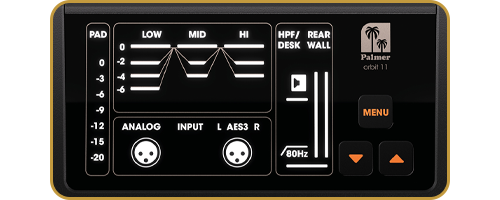

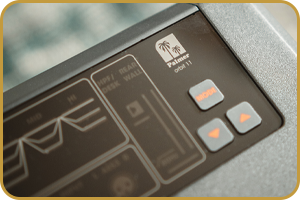

Direct Access, Precise Control
• Top-mounted control panel for direct access to all essential functions - no need to reach behind the speaker
• Structured menu for quick navigation through input selection, EQ settings and placement compensation
• Arrow keys enable fast, precise value adjustments
• Includes PAD control and a three-band EQ
• Desk and Rear-Wall compensation presets for different speaker placements
• 80 Hz high-pass filter for additional low-frequency management
• Analogue and AES3 input routing, including left, right and linked configurations
• Front-facing LED shows operating status: orange for power, red for limiting

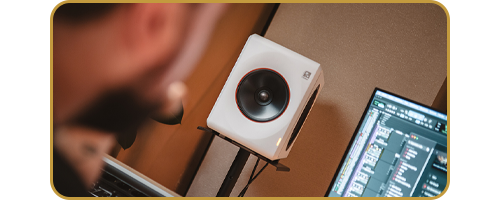

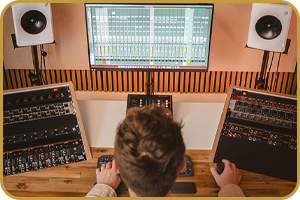

Desk, Stand & Wall Mounting
• Adapts easily to any workspace - on a desk, on speaker stands or mounted to the wall
• Upright design with ear-height tweeter alignment ensures accurate imaging in every setup
• Desk setups benefit from built-in compensation filters that reduce resonances and maintain clarity
• On stands, the monitor delivers full reference performance with precise imaging and controlled low-end
• Multiple mounting points and removable feet provide flexible, secure installation options
Palmer Orbit11 | For Those Who Listen
The Tech Spec
| Features | Specification | Frequency Response (-3 dB, rel. avg.) | 28 Hz – 28 kHz |
|---|---|
| Nominal Dispersion | 120° × 120° |
| DSP / Conversion | 96 kHz / 24-bit DSP & AD/DA, linear-phase FIR processing |
| Dimensions (W × H × D) | 217 × 293 × 292 mm |
| Weight | 13.9 kg |
| Crossover | 250 Hz |
| Amplification | 1000 W peak / 400 W RMS |
| Max. SPL | 116 dB |

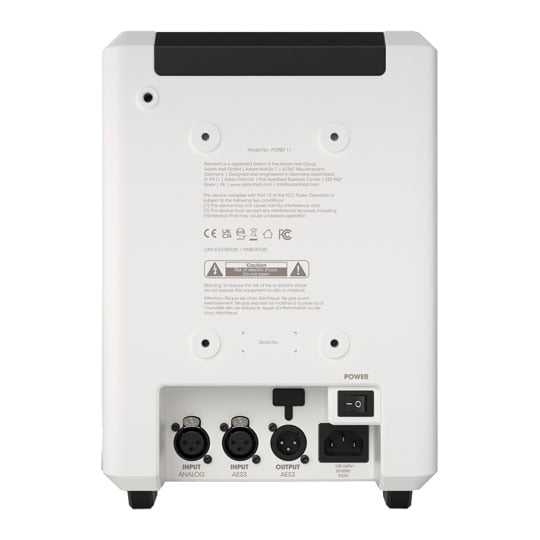

| Analogue Inputs | 1 × XLR |
| Digital Inputs | 1 × XLR (AES3) |
| Digital Output | 1 × XLR (AES3 Thru) |
| LF Driver | 2 × 8" (Impulse-Compensated) |
| MF/HF Driver | 6.5" + 1" (Coax) |
| Housing Design | Closed (LF) + Cardioid baffle |
| Controls | PAD level, 3-band EQ, 80 Hz high-pass filter, Input selection, Application presets |
| Application Presets | 1 × DESK, 2 × REAR WALL |
| Enclosure | 5–16 mm, Die-cast aluminium |
| Cooling | Passive (fan-less) |
