Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point
End Of Life
Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point
Scan code: LN169066 Manufacturer code: U7-IW
End Of Life
  • Thumbnail 1 : Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point
  • Thumbnail 2 : Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point
  • Thumbnail 3 : Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point
  • Thumbnail 4 : Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point
End Of Life

Open Box Ubiquiti UniFi U7 In-Wall Dual Band WiFi 7 Wall Mountable PoE Access Point

Open Box Ubiquiti U7-IW, Dual Band, WiFi 7, 688Mbps + 4.3Gbps, 4 Spatial Streams, Wall-Mountable, PoE Output, 3 x 2.5GbE
MORE INFO
MORE INFO

Scan code: LN169066 Manufacturer code: U7-IW
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

Ubiquiti U7 In-Wall Access Point

The U7 In-Wall AP brings next-generation Wi-Fi 7 performance directly into your wall plate, combining high-speed wireless connectivity and versatile wired networking in a compact, hospitality-grade design. With dual-band Wi-Fi 7 support, 4 spatial streams, and MU-MIMO, this sleek device delivers ultra-fast speeds and reliable connections across up to 115 m² (1,250 ft²) - perfect for hotels, offices, and modern homes seeking high-density indoor Wi-Fi coverage.


Dual-Band Wi-Fi 7 with 4 Spatial Streams & MU-MIMO

Built on the latest 802.11be (Wi-Fi 7) standard, the U7 IW offers a dual-band Wi-Fi configuration with 4 spatial streams and MU-MIMO technology. This enables it to serve multiple devices simultaneously, maximising throughput - up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz - making it ideal for ultra-HD streaming, low-latency gaming, and smart-device connectivity.


Optimal Indoor Coverage and Client Capacity

Designed for indoor use in environments with moderate coverage requirements, the U7 IW delivers strong, wall-to-wall Wi-Fi coverage across 115 m² (1,250 ft²), supporting over 200 clients concurrently. With high transmit power and integrated antenna gains, it minimises dead zones and maintains strong signal strength throughout your space.


Integrated 2.5 GbE Uplink & PoE-Powered Switch

Equipped with a 2.5 GbE RJ45 uplink, the U7 IW supports high-speed backhaul performance into your network. Power is efficiently delivered via PoE+, and with its built-in two-port 2.5 GbE switch, this AP can pass PoE through to another device—perfect for powering an additional access point or security camera at the wall outlet.


Enterprise-Grade UniFi Management

Managed seamlessly via the UniFi Network controller, the U7 IW supports advanced features like band steering, fast roaming, guest portal customisation, VLAN assignment, traffic shaping, and detailed analytics. Ideal for large or multi-unit deployments, it scales effortlessly within the UniFi ecosystem.

Features

• Full Wi-Fi 7 Support.
• 4 Spatial Streams – 2 x 2 (2.4 GHz) + 2 x 2 (5GHz) MU-MIMO.
• High Maximum Data Rate of 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz).
• Large indoor coverage of up to 115m².
• Designed to be mounted inside / as part of wall structures. Paintable to match surroundings.

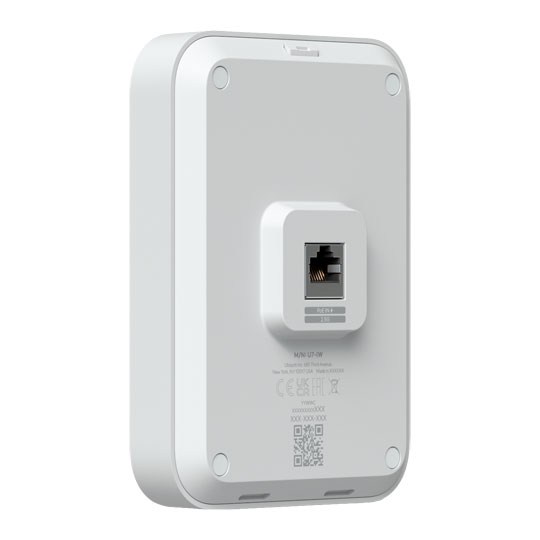

• 3 × 2.5GbE RJ45 (1 x PoE+ input, 1 x PoE output, 1 x standard RJ45).
• 200+ concurrent devices.

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
Manufacturer Contact Details
Manufacturer:
Ubiquiti
