(Open Box) Sennheiser EW 100 G4-CI1-E Wireless Instrument Set
(Open Box) Sennheiser EW 100 G4-CI1-E Wireless Instrument Set, Rugged All-In-One Wireless System For Guitar
(Open Box)
All-In-One Wireless System for Guitar and Bass
Sennheiser - EW 100 G4-CI1-E
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.

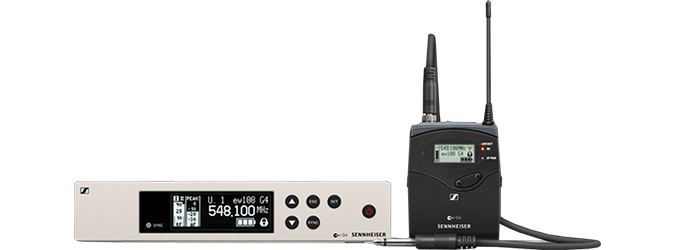

Engineered for professional live soundThe Sennheiser EW 100 G4-CI1-E is a robust all-in-one wireless system for guitar and bass. This set consists of 1 SK 100 G4 wireless bodypack, 1 Ci1 Instrument cable, 1 EM 100 G4 Rackmount receiver, 1 rack kit and 1 RJ10 Linking cable. The EW 100 series wireless systems offer versatility for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. Engineered for professional live sound, this rugged all-in-one wireless system for guitar and bass with a bobust bodypack transmitter and Ci1 instrument cable will have you ready for daily, reliable use on stage.
At A Glance
• Robust bodypack transmitter and robust Ci 1 instrument cable for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Transmission Range of up to 100 meters / 300 feet
What's In The Box?
• 1 x EW 100 G4 true diversity receiver
• 1 x SK 100 G4 bodypack transmitter
• 1 x Ci1 instrument cable
• 1 x Rackmount set
• 2 x AA batteries
• 2 Rod antennas
• 1 x RJ10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
The Tech Spec
| Features | Specifications | Configuration | Wireless Instrument System |
|---|---|
| System: Simultaneous Channels | Up to 12 |
| System: Analogue/Digital | Analogue |
| System: Frequency Range | 823-865 MHz (E band) |
| System: Operating Range | 330 ft. Line-of-sight |
| System: Channel Selection | Auto/Manual |
| System: Frequency Response | 25Hz-18kHz |
| Instrument Cable: Connector 1 | 1/4" |
| Instrument Cable: Connector 2 | 1/8" |
| Transmitter: Form Factor | Bodypack |
| Transmitter: Mute Feature | Yes |
| Transmitter: Battery Type | 2 x AA, 1.5 V or BA 2015 accupack |
| Transmitter: Battery Life | 8 hours |
| Transmitter: Connector | 1/8" |
| Transmitter: Dimensions | 3.32" x 2.57" x 1.22" |
| Transmitter: Weight | 0.35 lbs. |
| Receiver: Antenna Type | Detachable |
| Receiver: Signal/Noise Ratio | ≥110dB (A-weighted) |
| Receiver: Front Panel Display | Yes |
| Receiver: Displays | LCD |
| Receiver: Type | Rackmount |
| Receiver: Rackmountable | Yes (kit included) |
| Receiver: Rack Spaces | Half-rack |
| Receiver: Outputs | 1 x XLR, 1 x 1/4" |
| Receiver: Data I/O | 2 x RJ10 |
| Receiver: Dimensions | 8.35" x 1.7" x 6.61" |
| Receiver: Weight | 2.16 lbs. |
