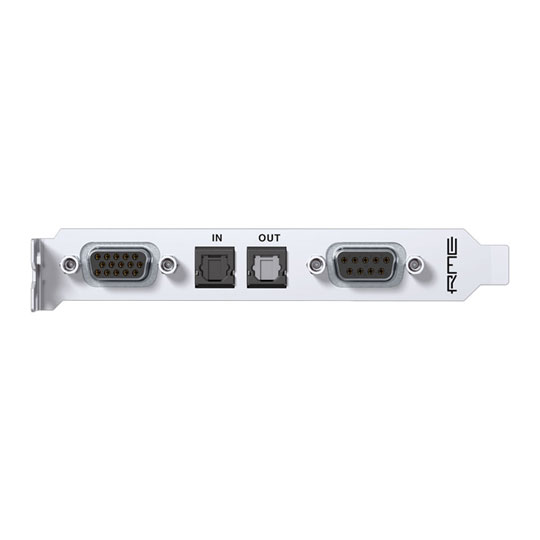

(Open Box) RME HDSPe AIO Pro PCI Card
(Open Box) RME HDSPe AIO Pro 30-Channel PCI Express Card with Multi-Format I/O
- SCANPROTECT Protect against installation damage for 28 days. More info
(Open Box) 30-Channel PCI Express Card with Multi-Format I/O
RME - HDSPe AIO Pro
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
state-of-the-art
PCI Express cardRME proudly introduces the ‘HDSPe AIO Pro’ PCI Express interface card, the follw up of the hugely popular HDSPe AIO. The Pro version delivers to professional users in the fields of studio and broadcast with the same high channel count as well as analogue/digital input and output variety of the HDSPe AIO. As for technical features, RME has completely redesigned the ‘HDSPe AIO Pro’, defining the current state-of-the-art in PCI Express cards.
Amazing Features
• Balanced* stereo analog in- and output, 24-bit/192kHz
• All analogue I/Os capable of 192 kHz, constant number of available channels
• 1 ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
• 1 SPDIF digital I/O, 192 kHz-capable
• 1 AES/EBU digital I/O, 192 kHz-capable
• Outputs with Mute Relais
• +24 dBu I/O Levels
Connectivity and Features
versatile integration
into audio systems
Each of the inputs and outputs are simultaneously operational, even SPDIF (phono) and AES/EBU (XLR). Of course TotalMix, the unsurpassed flexible routing mixer and SteadyClock FS, RME's magnificent clock technology with maximum jitter suppression of external clock signals, are on board too. HDSPe AIO Pro also supports the optional TCO for synchronization to timecode (LTC/video).
The new HDSPe AIO Pro is based on the reference processors AK5572 and AK4490 derived from the high-end AD/DA converter ADI-2 Pro. The analog input range also uses the circuit design of the ADI-2 Pro (+24 / +19 / +13 / +4 dBu). In addition, RME has enhanced the outputs with additional reference levels (balanced: +24 / +19 / +13 / +4 dBu; unbalanced: +19 / +13 / +4 / -2 dBu) which allows even more versatile integration into audio systems. The HDSPe AIO Pro features a dedicated attenuator in the output section, resulting in an increased signal-to-noise ratio and a lower output impedance at low reference levels.
Stereo Analog I/O
ADAT I/O
SPDIF I/O
AES/EBU I/O
MIDI I/O
TotalMix FX
ARC USB
SteadyClock FS
Word Clock Module (WCM)
No motherboard PCI slot requiredThe Word Clock Module (WCM) provides a galvanically isolated word clock input and two word clock outputs (BNC connectors). Both outputs have their own driver stages, providing an extremely low jitter signal. A push switch activates 75 Ohms termination for the hi-impedance input. SteadyClock, part of the PCI card, guarantees an excellent performance in all clock modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal, and provides it as reference clock at the two outputs.
Installation is done in a convenient manner using the supplied bracket. No PCI slot on the motherboard is required. The module is internally connected via a 10-pin connector and a flat ribbon cable to the PCI card. Thanks to several LEDs (power, termination, LOCK) and the highly integrated concept of installation, first operation and usage are simple even for the inexperienced user.
The Tech Spec
| Features | Specification | Analogue Inputs | Input: Cinch (RCA), unbalanced Input impedance: 18 kOhm Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS Signal to Noise ratio (SNR) @ +19/24 dBu: 117 dB RMS unweighted, 120 dBA Signal to Noise ratio (SNR) @ +13 dBu: 116 dB RMSu nweighted, 118 dBA Signal to Noise ratio (SNR) @ +4 dBu: 112 dB RMSu nweighted, 114 dBA Frequency response @ 44,1 kHz, -0,1 dB: 7 Hz – 20.5 kHz Frequency response @ 96 kHz, -0,5 dB: 3 Hz – 45,5 kHz Frequency response @ 192 kHz, -1 dB: 2 Hz – 92 kHz THD @ -1 dBFS: -114 dB, 0,0002 % THD+N @ -1 dBFS: -110 dB, 0,0003 % Channel separation: > 110 dB |
|---|---|
| Analogue Outputs | Output: Cinch (RCA), unbalanced Output impedance+19/+13 dBu: 75 Ohm. +4/-2 dBu: 80 Ohm Output impedance switchable +19, +13 dBu, +4 dBu, -2 dBu @ 0 dBFS Signal to Noise ratio (SNR) @ +19 dBu: 117 dB RMS unweighted, 119 dBA Signal to Noise ratio (SNR) @ +13 dBu: 116 dB RMS unweighted, 118 dBA Signal to Noise ratio (SNR) @ +4 dBu: 114 dB RMS unweighted, 116 dBA Signal to Noise ratio (SNR) @ -2 dBu: 110 dB RMS unweighted, 112 dBA Frequency response @ 44.1 kHz, -0,1 dB: 10 Hz – 20,2 kHz Frequency response @ 96 kHz, -0,5 dB: 4 Hz – 44,6 kHz Frequency response @ 192 kHz, -1 dB: 3 Hz – 83 kHz THD @ 0 dBFS: < -107 dB, 0,0005 % THD+N @ 0 dBFS: -105 dB, 0,0006 % Channel separation: > 110 dB |
| Digital Inputs | AES/EBU 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 High-sensitivity input stage (< 0,3 Vss) SPDIF compatible (IEC 60958) Accepts Consumer and Professional format, copy protection will be ignored Lock Range: 28 kHz – 200 kHz - SPDIF 1 x RCA, transformer-balanced, according to IEC 60958 High-sensitivity input stage (< 0,3 Vss) AES/EBU compatible (AES3-1992) Accepts Consumer and Professional format, copy protection will be ignored Lock Range: 28 kHz – 200 kHz - ADAT Optical 1 x TOSLINK, format according to Alesis specification Standard: 8 channels 24 bit, up to 48 kHz Double Speed (S/MUX): 4 channels 24 bit 96 kHz Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz Bitclock PLL ensures perfect synchronisation even in varispeed operation Lock range: 31.5 kHz – 50 kHz |
| Digital Outputs | AES/EBU 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 Output level 4,0 Vss Format Professional according to AES3-1992 Amendment 4 Single Wire mode, sample rate 28 kHz up to 200 kHz - SPDIF 1 x RCA, transformer-balanced, according to IEC 60958 Output level Professional 2.3 Vpp, Consumer 1.0 Vpp Format Professional according to AES3-1992 Amendment 4 Format Consumer SPDIF according to IEC 60958 Single Wire mode, sample rate 28 kHz up to 200 kHz - ADAT 1 x TOSLINK, format according to Alesis specification Standard: 8 channels 24 bit, up to 48 kHz Double Speed (S/MUX): 4 channels 24 bit 96 kHz Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz |
| Digital | Clocks: Intern, ADAT In, SPDIF In, Sync In, optional Word clock In / LTC in Jitter suppression of external clocks: > 50 dB (2,4 kHz) Effective clock jitter influence on AD and DA conversion: near zero PLL ensures zero dropout, even at more than 100 ns jitter Digital Bitclock PLL for trouble-free varispeed ADAT operation Supported sample rates: 28 kHz up to 200 kHz |
| MIDI | 1 x MIDI I/O via 5-pin DIN jacks Galvanically isolated by optocoupled input Hi-speed mode: Jitter and response time typically below 1 ms Separate 128 byte FIFOs for input and output |
