Scan code: LN124883 Manufacturer code: Revelator IO 24

(Open Box) PreSonus - Revelator IO24 Audio Interface

(Open Box) PreSonus - Revelator IO24 - Livestreaming Audio Interface, 2 Mic Preamps, DSP Mixer

Thumbnail 1 : (Open Box) PreSonus - Revelator IO24  Audio Interface Thumbnail 2 : (Open Box) PreSonus - Revelator IO24  Audio Interface Thumbnail 3 : (Open Box) PreSonus - Revelator IO24  Audio Interface
Scan code: LN124883 Manufacturer code: Revelator IO 24
Order now and get it tomorrow, Wed 17th Jul
Get it Tomorrow, 17 JulIn stock
From £10.83 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £10.83
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £119.48
Total inc. interest: £129.88
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

(Open Box) USB-C Compatible Audio Interface

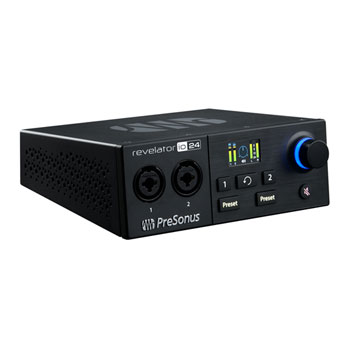

PreSonus - Revelator io24

PreSonus - Revelator io24

featuring Integrated Loopback Mixer
and Effects for Streaming, Podcasting and More!
Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24’s intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Quickly record Zoom calls for your podcast, add backing tracks to your live stream performance, and more.

Produce a great mix for your stream fast by engaging Stream Mix mode and with the click of a button, your complete DSP mix–analog inputs, loopback channels, reverb, and effects–are patched to the USB stream, where you can easily send it to your streaming software. No complex routing or extra hardware required.

You’ll also get over $1000 USD of software to record, produce, and polish your podcasts and music, including: Studio One Artist, Ableton Live Lite, and the Studio Magic Suite. Whether you’re producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is built to ‘cast.

USB 2.0Connectivity

2 x 4Simultaneous I/O

2 x micNo of Preamps

at a glance • Add Revelator power and flexibility to any XLR microphone
• 2 XMAX-L mic preamps with +48V phantom power for professional XLR mics and crystal-clear sound
• 2 stereo loopback streams for mixing audio from Zoom, Skype, backing tracks, and more
• Professionally-crafted presets make you sound like a pro at the press of a button—or design, save, and share your own
• Stream Mix mode lets you create a complete stereo mix with Revelator io24 hardware inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
• Over $1000 worth of software including Studio One Artist, Ableton Live Lite, and Studio Magic Suite

Presonus - Revelator IO24
2 Channel DSP Mic Processing + Mixer for 2 Remote Callers

Don't think of this as an interface, think of it more as a 2 Channel Digital Studiolive desk with a software mixer that not only has physical and headphone outputs, but also two 'loopback' channels that you can use to connect in people on applications like Zoom, Teams, Skype or Discord and create separate mixes for them.

Want one to hear you, the other and both of them hear game sound, or a music bed? ... that's not a problem here, in fact its about the most advanced DSP routing that we've seen in a USB interface.

The Tech Spec

Features Specification
Computer Connectivity USB 2.0
Form Factor Desktop
Simultaneous I/O 2 x 4
Number of Preamps 2 x mic
Phantom Power Yes
A/D Resolution Up to 24-bit/96kHz
Effects Highpass Filter, Noise Gate/Expander, Compressor, EQ, Limiter, Delay, Reverb, Detuner, Doubler
Analogue Inputs 2 x XLR-1/4" combo (mic/line)
Analogue Outputs 2 x 1/4"
Headphones 1 x 1/4"
Software Studio One Artist, Studio Magic Plug-in Suite
OS Requirements - Mac macOS 10.13 or later, iOS 9.0.3 or later
OS Requirements - PC Windows 10 or later, Chrome OS (limited features)
Bus Powered Yes
Power Supply USB bus powered
Height 2.5"
Width 6.25"
Depth 6.25"
Weight 2 lbs.
Computer Interface Type USB 2.0 Type-C
Connections (Input)
  • 1 x MIDI
  • 2 x XLR / Jack Combo
Mic Preamps (Max) 2
Instrument Inputs (Max) 2
Phantom Power Yes
Sample Rate (Max) 96 kHz
Bit Resolution 24
iPad Compatible No

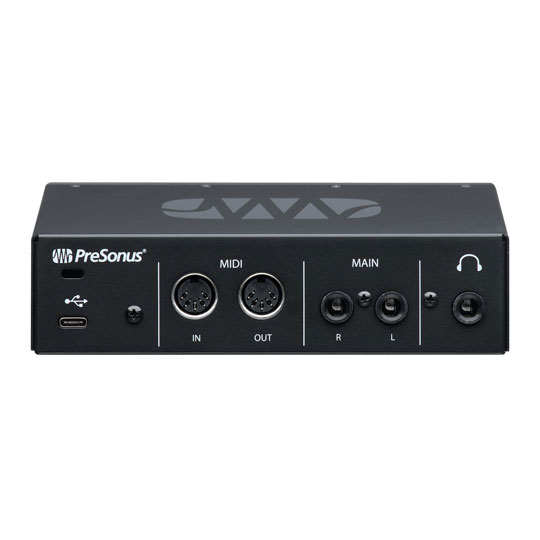

Connections (Output)
  • 2 x 6.35mm (1/4") TRS Jack
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
Dimensions (mm) 158.75 x 63.5 x 158.75 WxHxD
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN124883
Model Number Revelator IO 24
GTIN 673454009792

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
30 days
RTB Period:
12 months
