MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard
MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard
Scan code: LN149482 Manufacturer code: Z790 PROJECT ZERO
£249.98
Add To Basket
Get it Tomorrow, 18 MarIn stock
  • Thumbnail 1 : MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard
  • Thumbnail 2 : MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard
  • Thumbnail 3 : MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard
  • Thumbnail 4 : MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard

MSI Intel Z790 PROJECT ZERO DDR5 ATX Open Box Motherboard

Open Box MSI Z790 PROJECT ZERO, Intel Z790, S 1700, DDR5, PCIe 5.0, 4x M.2, 2.5GbE, WiFi 7, USB 3.2 Gen2x2, ATX
MORE INFO
MORE INFO

Scan code: LN149482 Manufacturer code: Z790 PROJECT ZERO
£249.98
Order now and get it tomorrow, Tue 18th Mar
Add To Basket
Get it Tomorrow, 18 MarIn stock

Email me when the availability or price changes

  • By DPD On 18th Mar Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £10.42 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £20.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £249.98
    Total inc. interest: £249.98
    Monthly Payment: £10.42
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £249.98
    Total inc. interest: £249.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Absolute Simplicity

Z790 PROJECT ZERO features the back-connect design, which allows for a cleaner front view and easier cable management, showcasing the beauty of simplicity.


Cleaner Front View

The Z790 PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.


Back-Connect Design

Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless.
Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.


Supports Intel Core 14th/13th/12th Gen Processors (LGA 1700)

The Z790 PROJECT ZERO motherboard supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors.


14+1+1 Phase Duet Rail Power System with 55A SPS

With its dual 8 pin power connectors and exclusive Core Boost technology, the Z790 PROJECT ZERO is able to sustain heavy CPU power loads to support system-demanding game settings.


Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.


4 x DDR5 Dual Channel (7200+ MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.


1 x Fortified PCI-e 5.0 x16 Slot

MSI PCI Express Steel Armor slot are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Gen4 M.2 Connectors

The Z790 PROJECT ZERO motherboard features MSI's Gen4 M.2 slots.


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.


Wi-Fi 7 & Bluetooth 5.4

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.


Features


• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket.
• Supports DDR5 Memory, up to 7200+(OC) MHz.
• Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
• Audio Boost: Reward your ears with studio grade sound.
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

Specifications
Core Specifications
Edition Z790 PROJECT ZERO
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 256GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 6 x 4-pin System Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x TBT connector
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Port
  • 4 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2 Type-C Port
  • 1 x USB4 Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11be WiFi 7

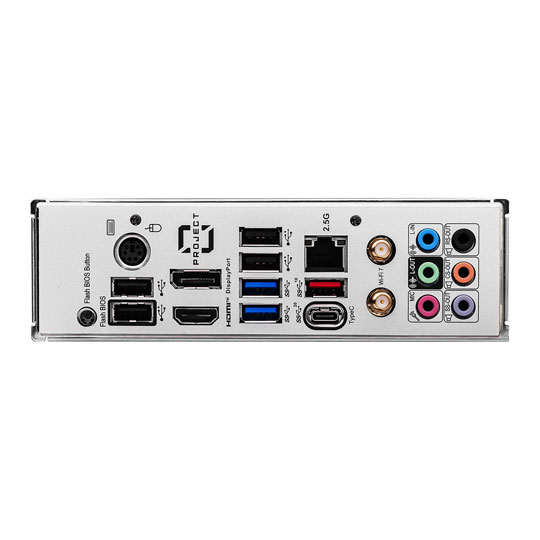

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF (Optical)
  • 1 x S/PDIF-Out (Optical)
  • 1 x Side Speaker Out
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84mm x 304.8mm mm
Note
Additional Information
Scan Code LN149482
Model Number Z790 PROJECT ZERO
GTIN 4711377154024
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
