Product Overview

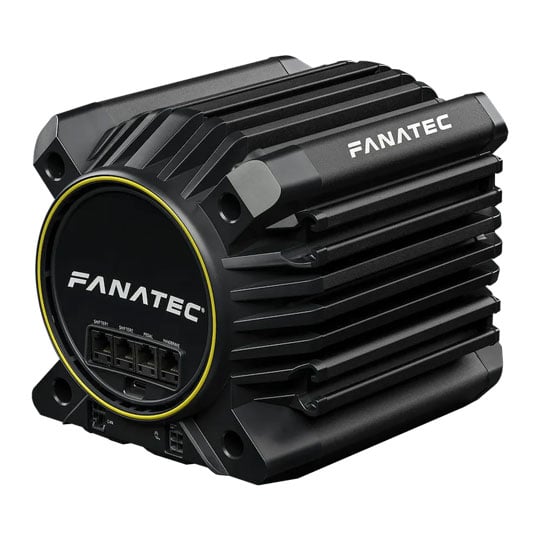

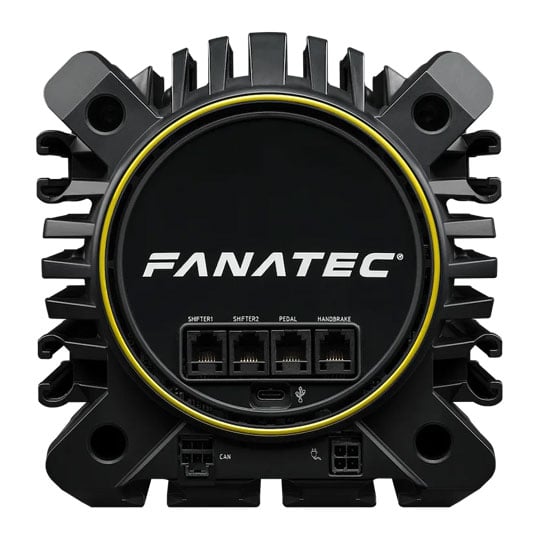

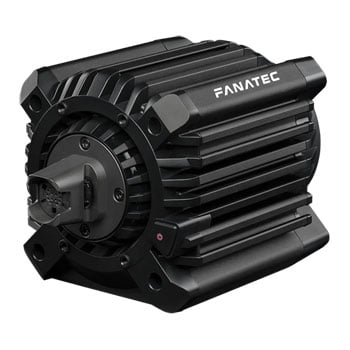

Fanatec Clubsport DD Direct Drive Wheel Base

Take your sim racing experience to the next level with the all-new Fanatec ClubSport DD, a precision-engineered Direct Drive wheel base that delivers a consistent 12Nm of torque for smooth, responsive, and ultra-detailed force feedback. Built with cutting-edge technology and Fanatec’s deep expertise in sim racing hardware, the ClubSport DD strikes an ideal balance between performance and affordability, bringing elite-level realism within reach of more drivers than ever before.

At the heart of the ClubSport DD is a specially designed, single-axis direct drive servo motor that produces exceptional torque response with zero latency. This results in a more authentic driving feel, where every bump, curb or change in surface texture is communicated clearly through the wheel. Whether you're navigating a tight hairpin or managing oversteer mid-corner, the feedback is powerful and razor-sharp. The ClubSport DD also features FullForce support, Fanatec’s next-generation force feedback protocol designed to work with Direct Drive motors. This allows compatible games to deliver high-frequency, vibration-style feedback effects (such as ABS pulses or road surface detail) with greater clarity and realism than traditional rumble motors. Combined with Fanatec’s QR2 quick release system - which ensures a rock-solid, hassle-free connection between your wheel and base – the ClubSport DD delivers an ultra-immersive driving experience that reacts instantly to your inputs and the car’s behaviour.

The Most Advanced ClubSport Wheel Base Ever

The all-new ClubSport DD delivers 12 Nm of consistent torque performance with incredible responsiveness and dynamics. Your favourite racing sim suddenly became much more realistic.

Direct Drive the Right Way

Not all Direct Drive systems are created equally. Decades of experience with force feedback technology have contributed to the many structural and electronic control optimisations in the ClubSport DD to deliver industry-leading performance in its class.

Smooth Operator

Consistent Torque, Lap After Lap

Engineered to meet strict cooling requirements, the ClubSport DD is the most thermally stable Wheel Base in its class, so you can have absolute confidence that the torque output and force feedback will remain consistent, no matter how long you drive.

Genuine Torque

Many mass-market direct drive systems fail to hold their claimed torque figures, gradually derating (reducing motor performance) over time to avoid overheating. The ClubSport DD's efficient motor and thermally-optimised layout holds a genuine 12 Nm torque even in the most extreme conditions, for example running an endurance race at maximum force feedback settings.

Feel the Grip

Outstanding thermal stability translates to consistent performance, so you can always trust the information you're feeling through the wheel. You can only truly feel the tyre grip and drive at the limit when your equipment performs the same throughout the session. ClubSport DD will help to train your muscle memory and become a better driver.

Lightning Fast Acceleration

The speed of the ClubSport DD servo motor allows us to fine-tune its behaviour with more accuracy than any previous Fanatec Wheel Base. This means your steering wheel can feel very active, clearly communicating the smallest details, while also feeling perfectly stable, and resistant to unwanted oscillation.

FullForce: Force Feedback 2.0 For Direct Drive
The existing force feedback protocol was designed for gear and belt-driven devices - the only hardware available at the time. FullForce is a new force feedback protocol tailored specifically for FANATEC Direct Drive. Leveraging the instantaneous response and zero backlash of direct drive technology, FullForce generates high-frequency vibrations for a new level of immersive effects. Feel the engine revs, and details of the road surface like never before. Only FullForce gives you the full experience of driving a race car.

Precision Response
Class-leading slew rate performance combined with the powerful processor makes every motor reaction incredibly fast and dynamic, while remaining perfectly stable. This behaviour lends itself to traditional force feedback signals as well as enhanced FullForce signals (in supported games).

Strongest Motor Shaft

The aluminium shaft inside the motor is the strongest we’ve ever made. The location of the slip ring electronics allows the shaft to be made with greater wall thickness. The bearing seat is also fully aluminium, providing strong radial load, rotational precision, and better shielding against EMI and ESD.

QR2

The ClubSport DD was designed with QR2 in mind from the ground-up. The QR electronics module is now fully integrated with the shaft, significantly improving its strength.

Compatibility

Peripherals:
All Fanatec Steering Wheels (with QR2) / All Fanatec Pedals* / ClubSport Shifter (all versions) / ClubSport Handbrake / All Fanatec Cockpits / ClubSport DD Table Clamp / ClubSport Table Clamp V2 / Podium Mounting Brackets
*adapter cables might be required on pedals without RJ12 connection.

**the ClubSport DD Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers.

Note: ClubSport Static Shifter Paddles are not supported.

Platforms:
PC: This wheel base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
Xbox: This wheel base becomes compatible with Xbox One and Xbox Series X|S when used with any Fanatec Xbox-licensed steering wheel.
PlayStation: This product is not compatible with any PlayStation console and cannot be upgraded to achieve compatibility.

What's Included

• ClubSport DD Wheel Base
• QR2 Base-Side (Type-F) preinstalled
• Power Supply (regional)
• 4x T-nuts for rail mount system
• USB cable (Type-C to Type-A)
• Quick Guide

Features

• Custom-designed Direct Drive servo motor with FullForce technology.
• 12 Nm consistent torque.
• Optimised skew angle on rotor magnets reduces cogging torque.
• Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness.
• New force feedback protocol developed for Fanatec Direct Drive.
• Passive cooling, most thermally stable Wheel Base in its class.
• Motorsport-derived QR2 system with electronics integrated with shaft.
• Diecast aluminium with CNC-machined finish.
• Designed for Windows PC, can be used on Xbox when fitted with an Xbox licensed Steering Wheel.
• Full Fanatec SDK support ensures compatibility out of the box for all major racing games
• Standard and Advanced Menus allow for fine-tuning for both beginners and experts.
• High-resolution (contactless) Hall-position-sensor.
• Rotation: 2520 degrees (electronically limited, adjustable).
• Slip ring system provides cable-free delivery of power and data between Steering Wheel and Wheel Base.
• T-nut rail system on sides and bottom for easily adjustable hard-mounting.
• Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
