(Open Box) Dynacord - CMS 1000-3 - 10 Channel Compact Mixing Desk
(Open Box) Dynacord - CMS 1000-3 - 10 Channel Compact Desk
(Open Box)
10‑Channel Compact Mixing System

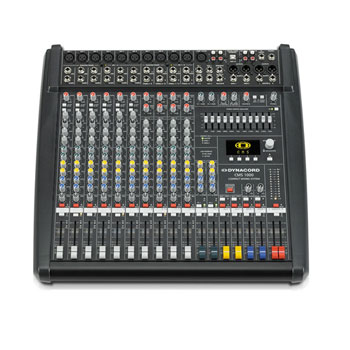

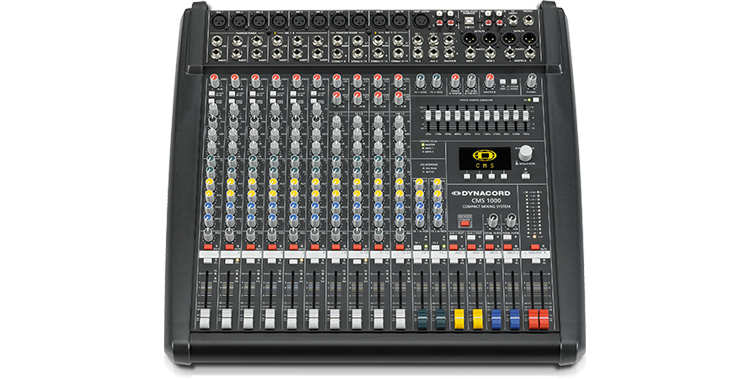

Dynacord - CMS 1000-3
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
Intuitive mixer with 10 input channelsThe Compact Mixing System from Dynacord has seized pole position in this segment of the market by virtue of the quality of its sound, components and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer and also a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector.
The mixing section starts with 10 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.
The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.
The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.
For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.
Optional a very robust cover lid with an integrated handle is available. A solution that offers optimal protection for the device as well as greater carrying comfort without the need of adding a large, heavy flight case.
at a glance
• Intuitive mixer with 10 input channels (6 Mic/Line + 4 Mic/Stereo-Line)
• 2 High-Quality editable effects, 100 factory and 20 user presets
• Professional 4x4 24-bit / 96 kHz USB interface with MIDI
• 11 band stereo graphic equalizer
• Optional robust cover-lid with integrated handle
The Tech Spec
| Features | Specification | Channels | 6 x Mic/Line 4 x Mic/Stereo Line |
|---|---|
| Auxiliary | 2 x Pre (MON) 2 x Post (FX) 2 x Pre/Post Switchable (AUX) |
| Gain | Microphone (Mono/Stereo): 0 to 60 dB / 10 to 60 dB Line/CD/USB (Stereo): -10 to 20 dB |
| Maximum THD @ 1kHz | Microphone Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005% Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer Output: 15 Hz to 70 kHz |
| Crosstalk @ 1 kHz | Fader and FX/AUX/MON-Send Attenuation: > 85 dB Channel-to-Channel: < -80 dB CMRR, Microphone Input:> 80 dB Input Sensitivity (All Level Controls in Max. Position Microphone / Line, Mono / Line, Stereo / CD, Stereo): -74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV) |
| Maximum Level | Microphone Inputs: 21 dBu Mono Line Inputs / Stereo Line Inputs: 41 dBu / 30 dBu All Other Inputs: 22 dBu All Other Outputs: 22 dBu |
| Input Impedances | Microphone / Insert Return: 2 Kilohms / > 3.3 Kilohms 2-Track Return and CD Input: 10 Kilohms All Other Inputs: > 15 Kilohms |
| Output Impedances | Headphones: 47 Ohms All Other Outputs: 75 Ohms |
| Equivalent Input Noise | Microphone Input, A-Weighted, 150 Ohms, -130 dBu Noise, Channel Inputs to Master A L/R Outputs, A-Weighted Master Fader Down: -97 dBu Master Fader 0 dB, Channel Fader Down: -91 dBu Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -83 dBu |
| Equalization | LO Shelving: ± 15 dB / 60 Hz MID Peaking, Mono Inputs: ± 15 dB / 100 Hz to 8 kHz MID Peaking, Stereo Inputs: ± 12 dB / 2.4 kHz HI Shelving: ± 15 dB / 12 kHz Master EQ 11-Band (63, 125, 250, 400, 630, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 12 kHz): ± 10 dB / Q = 1.5 to 2.5 |
| Power Consumption | 45 W without Lamp, 50 W with Lamp |
| Filter | LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct. Voice Filter, Mono Inputs: Switchable Feedback Filter, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB |
| Effects | Type, Effects Presets: Dual Stereo 24/48-Bit Multi-Effects Processors, 100 Factory + 20 User, Tap-Delay, Remote Control Footswitch, MIDI Display: 128 x 64 pixels, OLED |
| Digital Audio | Channels: 4 Inputs / 4 Outputs AD/DA Conversion, Sampling Rate 24-Bit, 44.1 / 48 / 88.2 / 96 kHz PC Interface: USB 2.0, Female Type-B MIDI Interface: 5-Pin DIN Connector, Input / Output |
| Mixer Output Connections | MON 1, MON 2, Master A (Relay Controlled) |
| Power Supply | Switching Mode µC Controlled: Mains Over/Undervoltage, High Temperature |
| Phantom Power | 48 VDC (Switchable in Groups) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz (SMPS with Auto Range Mains Input) |
| Dimensions | 20.1 x 6.1 x 19.6" / 510.5 x 155 x 498.5 mm Rackmount: 19 x 5.3 x 17.5" / 483 x 135 x 443.7 mm |
| Weight | 9.5 kg |
