(Open Box) Dreadbox Hades Analogue Bass Synthesizer
(Open Box) Dreadbox - Hades, Fully Analogue Bass Synthesizer with Through Hole Comp Only
(Open Box)
Analogue Bass Synthesizer

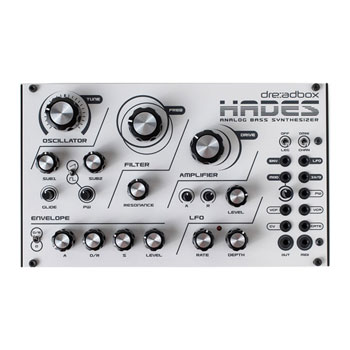

Dreadbox - Hades
(Reissue)
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
huge analogue bass soundsThe Dreadbox Hades is a powerful analogue bass synthesizer in a compact format. Designed with a fully analogue circuit the Hades is made useing through hole components only to achieve its huge sound. Featuring 1x VCO with 2 suboctaves and a total of 3 voices all together, an OTA based VCA and OTA distortion circuit for extreme sounds and a 3-pole 18dB/oct resonating low pass filter you already have a very effective tool for sound design.
Dreadbox included 2 envelope Generators, one being - attack, decay/release, Sustain (extra snappy and patchable) and the other - attack, release (VCA hardwired). You also get a triangle wave LFO, 5 MIDI octaves from C0 up to C5 or unlimited via CV/Gate and Pulse width and Glide controls for more sound shaping possibilities. The Hades is also 8 point patch matrix eurorack compatible so it will intergate easily with your set up.
At A Glance
• Fully Analogue Circuit using only through hole components
• 1x VCO with 2 suboctaves (3 voices in total)
• 3-pole 18dB/oct Resonating Low Pass Filter
• OTA Distortion Circuit for extreme sounds
• Pulse width and Glide controls
• OTA based VCA

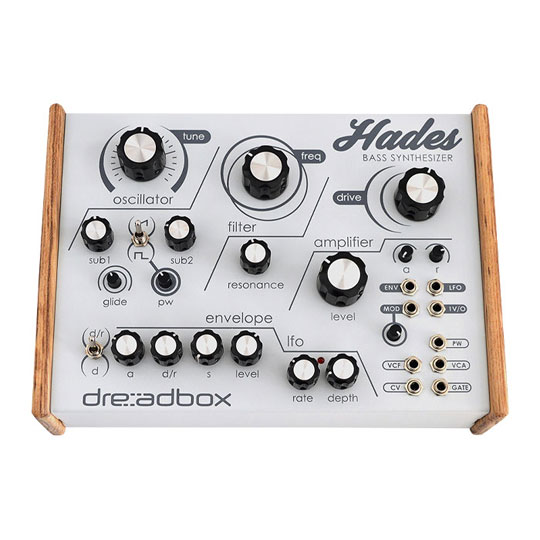

Dreadbox HADES Bass Synthesizer
The Tech Spec
| Features | Specifications | MIDI Interface | Midi in DIN socket, Pitch note/gate on-off, retrigger function, Mod wheel (hardwired on VCF), Pitch wheel, MIDI Channel select 1-7 or Omni (DIP switch) |
|---|---|
| Mono Audio Out | 1/4″ TS-Unbalanced, sends up to 10Vpp o |
| Patches | 3.5mm mono |
| Gate In | Activation at 0.9V in a low gain up to 5V for max gain |
| Gate Out | 0-5V |
| 1V/Oct | Sends the MIDI to CV out (not the Gate) |
| CV IN | Works at 1V/oct and can accept from +/-12V |
| Envelope Out | 0-6.6V depending on the depth setting |
| LFO Out | +/-5V |
| Dimensions | 225 x 160 x 75 mm |
| Weight | 0,9 kgr |
