Open Box ASUS ROG Azoth 96 HE Wireless ROG HFX V2 Switch UK 96% RGB Mechanical Gaming Keyboard

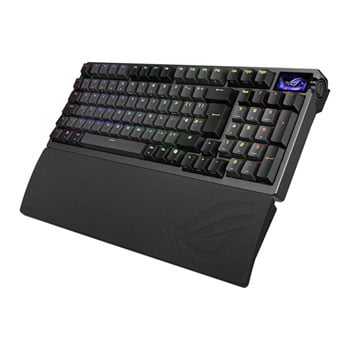

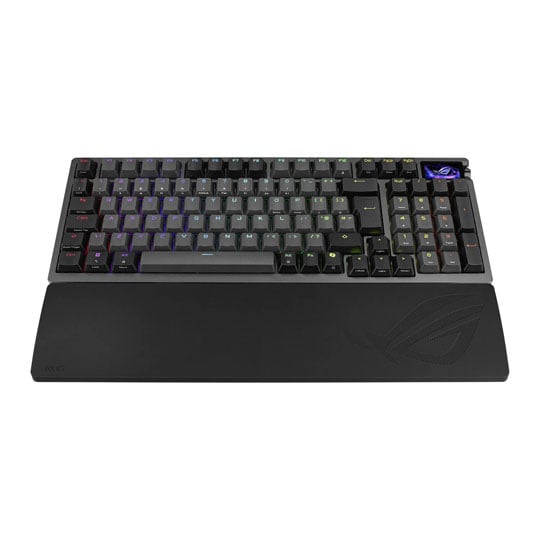

ASUS ROG Azoth 96 HE Keyboard

The ROG Azoth 96 HE is an analogue gaming keyboard that packs pro-level performance into a sleek, compact 96% form factor. Equipped with hot-swappable ROG HFX V2 magnetic switches and a next-gen ROG Hall sensor, this keyboard ensures lightning-fast input detection and consistent responsiveness. Built-in tri-mode connectivity enables seamless switching between up to five devices, with polling rates of up to 8000Hz. A vibrant OLED touchscreen and intuitive knob put system settings within easy reach, while a six-layer dampening design ensures every keystroke feels soft, stable, and satisfying. Finished with premium metal and featuring signature ROG keycaps, this board isn’t just built to play - it’s built to flex.

Compact 96% Form Factor

The layout of the ROG Azoth 96 HE offers a balanced blend of efficiency and functionality. Measuring only a centimeter wider than a standard TKL (tenkeyless) keyboard, it offers a full numpad and functions such as Print Screen, Screen Lock, Home, and End, making it suitable for both work and play.

OLED Touchscreen & Three-Way Control Knob

The 1.47-inch full-color OLED touchscreen shows real-time keyboard status at a glance, including indicators for Caps Lock, connection mode, and PC/Mac profiles. It can also display battery level, media playback info, system metrics like CPU temperature, and custom animations. Paired with a three-way control knob and dedicated side button, it offers seamless access to essential settings.

Six-Layer Dampening Design & Gasket Mount

Refined Top Cover
Extends downward to wrap around the bottom case, creating a unified and premium look.

Silicone Gaskets
Provide support for the internal mounting system and absorb vibrations Typing feel changes depending on the foam configuration - with firmer feedback when all layers installed, or a softer press when layers are removed.

PORON® Pad
Absorbs unwanted pinging noises to improve acoustic performance.

IXPE Switch Pad
Cushions every switch to reduce impact on the PCB and enhance keystroke feel.

PORON® Dampening Layer
Absorbs keystroke vibrations and minimises switch pinging noise.

Two Removable PORON® Dampening Foams
Minimise internal echoes and allow users to fine-tune gasket compression for a customised typing feel.

Silicone Pad
Minimises internal echoes to maintain a cleaner, more refined sound profile.

ROG HFX V2 Magnetic Switches

These switches provide solid, ultraprecise feel and lightning-fast responsiveness - along with a 100-million-keystroke lifespan. The polycarbonate top housing and POM plastic stem and bottom housing ensure ultra-smooth keystrokes, while the walled-stem design enhances stability and keeps out dust and debris. This results in consistently smooth, reliable, and precise keypresses when gaming or typing.

Customisable Actuation Point
With the ROG Hall sensor and HFX V2 magnetic switches, the 0.1–3.5 mm actuation range of the ROG Azoth 96 HE can be adjusted in precise 0.01 mm increments. The actuation point can be tweaked via the three-way knob or web-based Gear Link interface.

ROG Hall Effect Technology
Leveraging the increased magnetic flux tolerance of the ROG HFX V2 magnetic switches, the IC is directly mounted on the PCB, allowing it to be positioned closer to the magnet without being affected by board thickness. This further enhances magnetic sensing accuracy without affecting saturation.

Mechanical vs. Magnetic Switches
Traditional mechanical switches require a return to the reset point before the next click registers. With ROG HFX V2 magnetic switches and the Rapid Trigger feature, each switch resets instantly as it moves upward, delivering maximum counter-strafing potential with minimal effort.

Speed Tap Mode

When activated, the keyboard will prioritize the latest key press and automatically release the previous input when two keys are pressed in quick succession. This means that in FPS games, pressing two opposing directional keys (e.g., A + D) will no longer cause the character to stop moving; instead, directional changes can now be done immediately without releasing the previous key, eliminating any time gap for counter-strafing and ensuring precise aim every time.

Speed Tap feature is turned off by default. Simultaneously press and hold Fn + Caps keys for 1 second to activate.

Superb Connectivity

The Azoth 96 HE features tri-mode connectivity, enabling seamless connections via ROG SpeedNova wireless technology, Bluetooth, or wired USB. Experience an ultra-responsive 8000 Hz polling rate in ROG SpeedNova and wired USB modes, with input refresh rates up to 8X faster than most gaming keyboards - reducing delay from 1ms to just 0.125ms for precise, real-time actions.

Zone Mode

Zone mode unlocks peak competitive performance while disabling features like RGB lighting. Once enabled, gaming-critical keys are automatically set to an 8000 Hz polling rate by default, while lesser-used keys are reduced to 250Hz. The polling rate for each key can be further customized to user preferences.

Simultaneously press Fn + ` keys to activate.

Unique ROG-Themed Keycaps

Additional translucent keycaps with ROG markings provide unique customisation options.

ROG PBT Doubleshot Keycaps

ROG PBT doubleshot keycaps provide a premium feel and offer long-lasting durability. Key design has been optimised with mid-height keycaps and a shorter stem to reduce key wobble, providing a more comfortable user experience.

ROG Keyboard Stabiliser
The pre-lubed keyboard stabiliser has been specially tuned with gamers in mind; it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.

Settings Anywhere, Anytime with Gear Link

Gear Link is a new web-based app that lets gamers customize keyboard settings without the need for additional file downloads or installation. Simply visit the Gear Link webpage, connect the device, and fine-tune settings – all from a browser.

• Hot-swappable ROG HFX V2 magnetic switches with customisable actuation.
• ROG Hall sensor for enhanced precision and accuracy.
• ROG SpeedNova 8K wireless technology, wired USB, and Bluetooth connectivity.
• Wired and wireless modes offering up to 8K polling rate.
• Full-colour OLED touchscreen.
• Three-way knob for instant switching between settings.
• Adjustable gasket mount and six-layer dampening design.
• Four PORON layers, IXPE pad, and silicone pad to absorb vibrations and noise.
• Metal top cover for extra a premium look.
• Detachable silicone wrist rest included.
• Additional translucent ROG keycaps.
