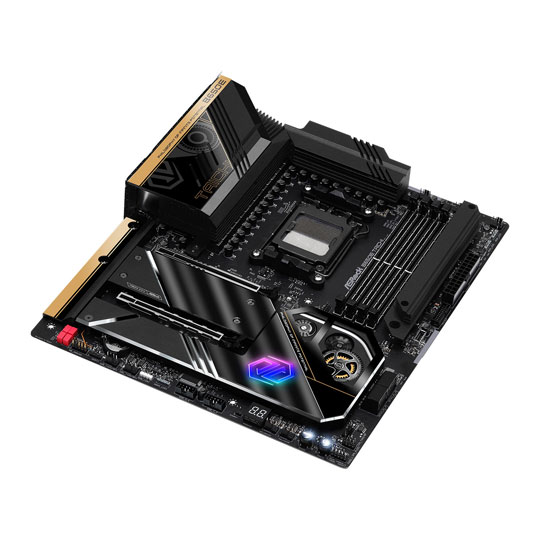

Open Box ASRock AMD B650E TAICHI AM5 DDR5 E-ATX Motherboard

Philosophy of Infinite Potential

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

24+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Server Grade Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

DDR5 EXPO & XMP Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Reinforced DIMM Slot

The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

PCIe 5.0 + Surface-Mount Tech

Compared to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximise stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

KiLLER Networking

The Killer Ethernet controller is designed specifically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritisation engine provides the ultimate networking experience for gaming and multimedia applications.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

• Supports AMD Ryzen™ 7000 Series Processors.
• 24+2+1 Phase Power Design, SPS for VCore+GT.
• 4 x DDR5 DIMMs, supports up to 6400+(OC).
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16.
• Graphics Output Options: 1 USB4 Type-C, 1 HDMI.
• Realtek ALC4082 5.1 CH HD Audio Codec.
• ESS SABRE9218 DAC, WIMA Audio Caps.
• 1 Blazing M.2 (PCIe Gen5x4).
• 2 Hyper M.2 (PCIe Gen4x4).
• 4 SATA3.

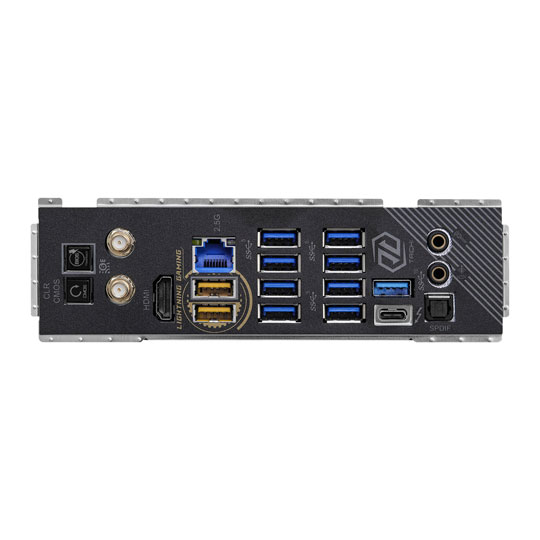

• 1 USB4 Type-C (Rear).
• 1 USB 3.2 Gen2x2 Type-C (Front).
• 3 USB 3.2 Gen2 Type-A (Rear).
• 10 USB 3.2 Gen1 (8 Rear, 2 Front).
• Killer 2.5G LAN.
• Killer 802.11ax Wi-Fi 6E + Bluetooth.
