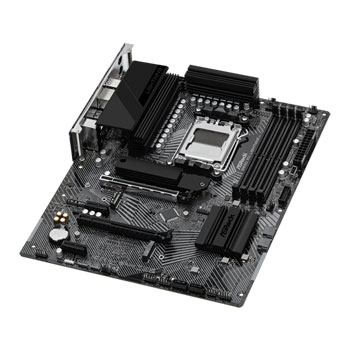

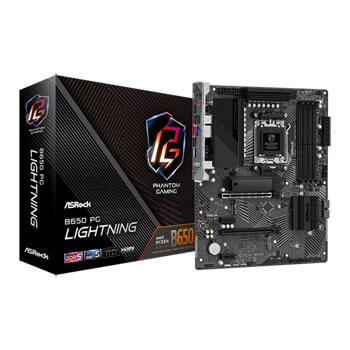

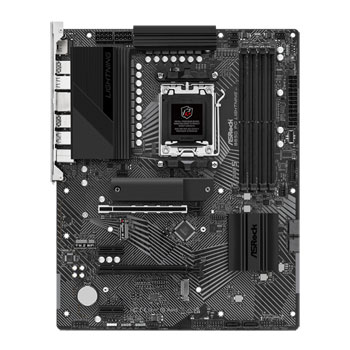

ASRock AMD B650 PG Lightning ATX Open Box Motherboard

Open box ASRock AMD B650 PG Lightning AMD B650, S AM5, DDR5, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX

Thumbnail 1 : ASRock AMD B650 PG Lightning ATX Open Box Motherboard Thumbnail 2 : ASRock AMD B650 PG Lightning ATX Open Box Motherboard Thumbnail 3 : ASRock AMD B650 PG Lightning ATX Open Box Motherboard Thumbnail 4 : ASRock AMD B650 PG Lightning ATX Open Box Motherboard
Scan code: LN140221 Manufacturer code: 90-MXBK20-A0UAYZ
Order now and receive it by Monday, 24th June
£199.99
Get it Sunday, 23 JunIn stock
From £9.77 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £18.12
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £217.42
Monthly Payment: £9.77
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £234.33
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Optimised VRM Design

14+2+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.


8 Layer PCB Design

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.


Extreme Overclocking Performance

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.


Blazing OC Tuner

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.


DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.


Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!


POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


XXL M.2 Heatsink

The extra large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.


Features

• Supports AMD Ryzen™ 7000 Series Processors.
• 14+2+1 Phase Power Design, SPS.
• 4 x DDR5 DIMMs, supports up to 6400+(OC).
• 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi.
• Graphics Output Options: 1 HDMI.
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio.
• 1 Blazing M.2 (PCIe Gen5x4).
• 1 Hyper M.2 (PCIe Gen4x4).
• 1 M.2 (PCIe Gen4x2).
• 4 SATA3.
• 1 USB 3.2 Gen2x2 Type-C (Rear).
• 1 USB 3.2 Gen2 Type-C (Front).
• 9 USB 3.2 Gen1 (7 Rear, 2 Front).
• 8 USB 2.0 (4 Rear, 4 Front).
• Realtek 2.5G LAN.

Specifications
Core Specifications
Edition B650 PG Lightning
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x2
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x M.2, A-E Key, 22-30, PCIe, for WiFi+BT Card
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x2 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 4 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 2.5 Gigabit LAN

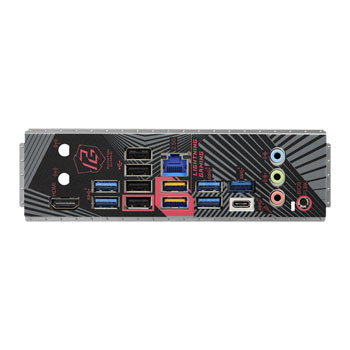

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 7 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
