Scan code: LN142794 Manufacturer code: Discrete 8 Prem

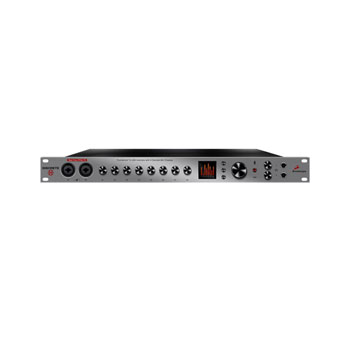

(Open Box) Antelope Discrete 8 Microphone Preamp Interface

(Open Box) Antelope Discrete 8 Console-Grade Microphone Preamp Interface - No Premium FX Pack (Sold Separately)

Thumbnail 1 : (Open Box) Antelope Discrete 8 Microphone Preamp Interface Thumbnail 2 : (Open Box) Antelope Discrete 8 Microphone Preamp Interface
Scan code: LN142794 Manufacturer code: Discrete 8 Prem
Order now and get it tomorrow, Wed 28th Feb
£1,140.00
Get it Tomorrow, 28 FebIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £32.15 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £103.28
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,140.00
Total inc. interest: £1,239.36
Monthly Payment: £55.67
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,140.00
Total inc. interest: £1,335.90
Monthly Payment: £39.92
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,140.00
Total inc. interest: £1,437.14
Monthly Payment: £32.15
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,140.00
Total inc. interest: £1,542.73
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £30.29 / month (APR 19.9%)
Delivery Options
  • By DPD On 28th Feb to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Microphone Preamp Interface
Antelope - Discrete 8
(Open Box)

Antelope Discrete 8

Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.

PREMIUM TECHNOLOGY & PERFORMANCEAntelope Audio’s Discrete 8 Microphone Preamp Interface adds a new level of sound quality and power to home studios and mobile recordists. It features 8 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking. Discrete 8 includes all of the Antelope Audio premier real-time FPGA FX, such as authentic models of iconic gear from BAE, Lang, Gyraf Audio and much more.

The Antelope AFX platform is a quickly expanding hardware modeling engine. Discrete 8 comes with Accusonic 3D microphone and preamp models, guitar amps, transformer and tube FX, and a huge range of classic vintage gear, which are accessible in any DAW via the afx2daw.

Amazing Features • Console-grade Class A mic pres with discrete transistor design and precise digital gain controls
• Premier real-time FX including BAE, Grove Hill, Gyraf Audio and Lang classics to use in the Easy Panel or in a DAW
• Turn the expensive sounding Discrete 8 mic pres into classic units via Tube, Transformer and FET based circuitry in real-time
• Control all Discrete 8 features via its intuitive Easy Panel or download the free iOS and Android mobile apps
• Create up to 4 custom monitoring mixes with FPGA FX included and send them to Headphone or Monitor outs
• Discrete 8 features Antelope’s 4th Generation 64-bit Acoustically Focused Clocking (AFC) technology

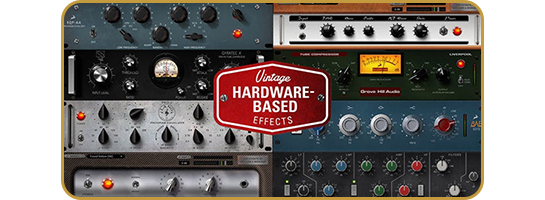

Legendary FX Gear In Your DAW

Antelope Discrete 8

premier real-time FPGA FX The Antelope Audio real-time FPGA platform is now extended to a complete professional studio experience – Microphones, Preamps, Conversion, Compressors, EQs, and Reverb – along with authentic models of iconic gear from BAE, Lang, Gyraf Audio and many more. Use them within the Discrete 8 EasyPanel or in your preferred DAW via afx2daw. Perform and record either with FX or process in post-production. The Discrete 8 ReAmp outputs will enable you to use any outboard gear and route the resulting sound back in your DAW of choice.

Giving You Complete Control

Antelope Discrete 8

Transform Edge & Verge Into vintage replicasInside the Discrete 8 FPGA Accusonic 3D modeling engine you can transform both Edge and Verge into vintage replicas providing complete control over proximity effect and allowing you to change polar patterns during or after recording. Select from a collection of classic and expensive microphones and track the results as you monitor live, bringing out a musician’s best possible performance.

ANTELOPE-STYLE CLOCKINGDiscrete 8 is designed as a professional clocking solution in its own right. It includes Antelope’s 4th Generation 64-bit Acoustically Focused Clocking (AFC) technology from highly acclaimed clock units like Trinity, OCX HD, LiveClock and Pure2. Discrete 8 comes with a Word Clock (WC) Input that can de-jitter and distribute an external clock signal. Three WC outputs allow you to distribute clock to your other digital gear and mic preamps in your setup connected via ADAT and S/PDIF. Discrete 8 will make sure all your gear is perfectly synced.

EXPERT LEVEL MONITORINGMonitoring and Talkback sections in Discrete 8 are easy to set. Up to 4 individual monitoring mixes can be sent to Headphones or Monitor Outputs with or without FPGA FX. Custom headphone mixes might be tailored for each performer. Vintage EQ, Compression and guitar amps let the artists hear a sound as close to the final product as possible. Discrete 8 can save and load AFX presets and exchange settings with the entire Antelope line of FPGA equipped pro audio interfaces. Share your own FX settings with other Antelope users or see how the pros are setting up their sessions.

Advanced Remote ControlThe Discrete 8 downloadable remote app allows you to adjust all microphone input levels, Talkback levels, along with Monitoring and Headphone volumes. Musicians can now control their own headphone volume through their phones. The engineer can check input levels from the tracking room. The device can be accessed from different computers connected to the same network.

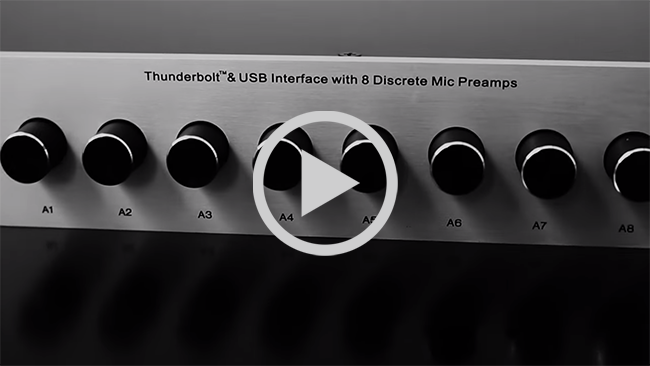

Introducing Discrete 8 | Antelope Audio

The Tech Spec

Features Specifications
Analogue Inputs 6 x Mic / Line Inputs
2 x Mic / Line / Hi-Z Inputs
Analogue Outputs 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
2 x ReAmp Out on TRS 1/4 Jacks
1 x Line Outs on DB25, +20 dBu max ( DC coupled )
2 x Stereo Headphone Outputs
Mic Preamp EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input: +18 dBu
Max Gain: 65 dB
D/A Monitor Converter Dynamic Range: 124 dB
THD + N: -101 dB
A/D Converter Dynamic Range: 121 dB
THD + N: -112 dB
D/A Converters (Line Out) Dynamic Range: 121dB
THD + N: – 100dB
DC Coupled
Hi-Z Input Discrete JFET design
Maximum input: 14dBu (At min. gain)
Gain Range: 0-40dB
Input Impedance: 1Mohm
Headphone Output Output Level (unloaded) 20dBu max
Output impedance 120 ohms
Dynamic Range: 121dB
THD + N: – 100dB
Recommended HP Impedance 16Ω to 600Ω
Digital Inputs 2 x ADAT (up to 16CH)
1 x S/PDIF
Digital Outputs 2 x ADAT (up to 16CH)
1 x S/PDIF
USB I/O USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
Thunderbolt™ I/O 1 x Thunderbolt, 32 channels I/O
Word Clock Input 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Word Clock Outputs 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System 4th Generation Acoustically Focused Clocking 64-bit DDS
Sample Rates (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
Operating Temperature 0-50°C, 32-122°F
Power Consumption 20 Watts
In the Box Discrete 8 Interface
Quick Start Guide
Wart External Power Supply Unit
USB Cable
Warranty Card
Dimensions (Approx) Width: 483 mm / 19”
Height: 44 mm / 1.7”
Depth: 220 mm /8.6”
Weight (Approx) 3.0 kg/ 6.61 lbs
Specifications
Computer Interface Type
Connections (Input)
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max)
Bit Resolution
iPad Compatible No
Connections (Output)
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN142794
Model Number Discrete 8 Prem
GTIN 853744004489
