NUX Mod Core Deluxe MKII Modulation Pedal
NUX - Mod Core Deluxe MKII Modulation Pedal, 8 Modulation Types in a Compact Enclosure
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

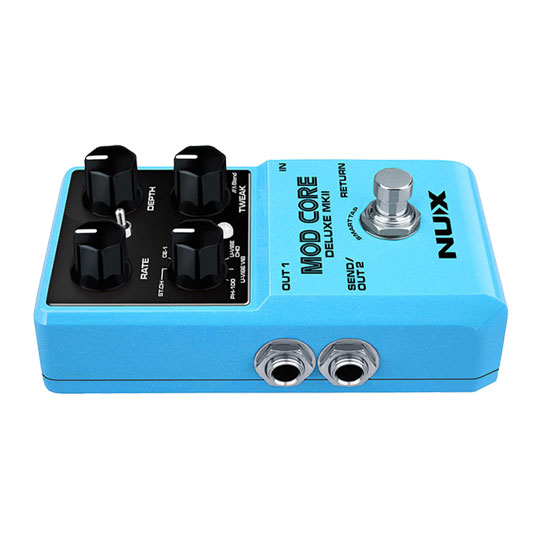

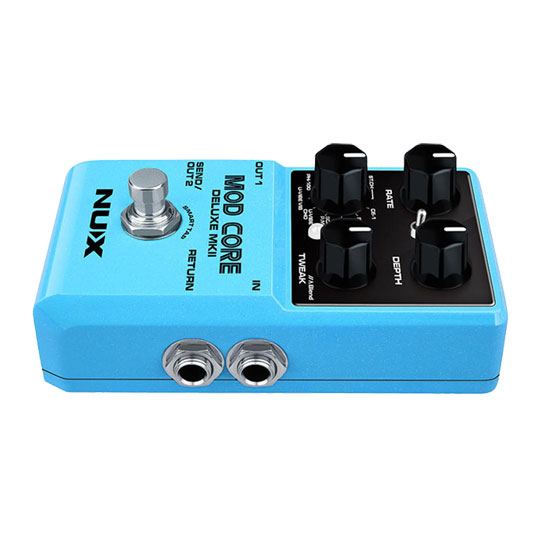

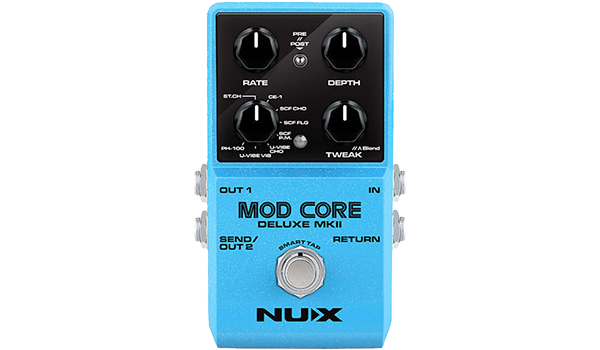

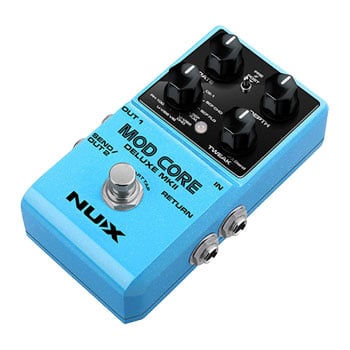

NUX - Mod Core Deluxe MKII Modulation Pedal
8 modulation types in a compact enclosureThe NUX Mod Core Deluxe MKII is a modulation pedal with 8 different types including ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100. You can switch the mod types by way of the Type rotary switch. This pedal offers advanced signal routing with the included Send and Return. Easily split the mono signal to create customized effect loops! Additionally, you can parallel the 2 signals, and use the Tweak knob in Alt mode to blend the signals. Use the 3-way toggle switch to the desired position, and you are good to go. Keep reading below for more signal routing ideas.
at a glance
• ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100
• ST.CH is based on MXR® Stereo Chorus
• CE-1 is based on BOSS® CE-1
• SCF is based on TC Electronic® SCF Stereo Chorus Flanger
• U-VIBE is based on Dunlop® UV-1 Uni-Vibe Chorus / Vibrato
• PH-100 is based on MXR® Phase 100
• Normal routing(mono out or stereo out) and advanced routing(PRE, // , POST)
• Parallel routing offers Blend parameter.(Alt mode, Tweak becomes Blend parameter.)
• Smart Tap Tempo. (50~200 BPM)
• Low power consumption. (less than 120mA)
• Analogue dry signal for low noise and zero latency
Shape Your Tone

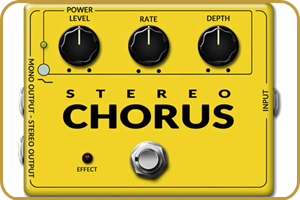

ST.CH (Stereo Chorus)Inspired by the MXR Stereo Chorus, which is beautiful sounding. NUX have consolidated the controls by eliminating the bass and treble knobs, now internally set at middle position, and eliminated the need for the bass filter altogether, which is now automatically corrected through the advancements of Core-Image sound modeling.

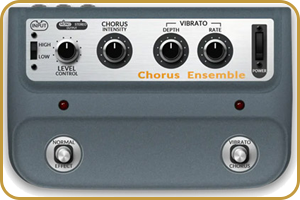

CE-1Based on the legendary BOSS CE-1 which was the first chorus effect pedal on the scene in 1976. Before that, it was only available as a built-in effect on a classic jazz amplifier. The Mod Core Deluxe MKII accurately replicates the characteristics of this pedal; that special warmth of a rich jazz atmosphere, an immediate recognizable highlight to any musician's tone.

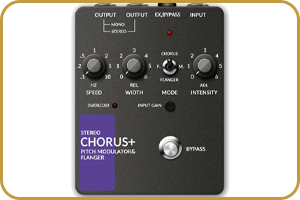

SCFA tribute to the TC Electronic Stereo Chorus Flanger, one of the best modulation pedals ever made. SCF CHO: A chorus is basically a pitch generator which mixes multiple delay signals. When the multiple delay signals are mixed with the original signal, a soft and wide sounding modulation effect is created. SCF FLG: A flanger is based on the same principle as a chorus, although here the signal can be regenerated (like adding feedback on a delay) creating a more distinctive sounding effect. SCF P.M.: A combination of chorus and pitch vibrato which creates a “light” chorus sound.

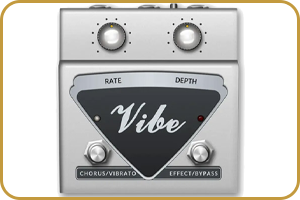

U-VIBEInspired by Dunlop Uni-Vibe for its stunningly unique sound. Old-school Uni-vibe delivered a huge 3D sound by simulating the physical Rotating Speaker Effect; that beautiful and unforgettable sound easily associated with Hendrix's bending facial expressions during his 60s stage performances. U-VIBE CHO: Depth will change the depth of the sweeping effect. U-VIBE VIB: Depth will change the degree of pitch modulation.

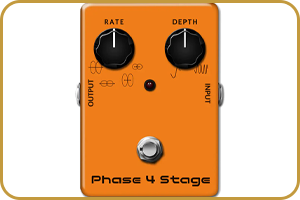

PH-100Based on the MXR PHASE 100 which has both a Speed control and a 4-waveform Intensity control, the Phase 100 offers a broad range of tones.
The Tech Spec
| Features | Specification | Input Impedance | 1MΩ |
|---|---|
| Output Impedance | 1kΩ |
| Dynamic Range | 104 dB |
| DSP Processing | 48KHz / 32-bit |
| A/D D/A Sampling Rate | 48KHz / 24-bit |
| Power | 9V DC(Negative tip, Optional ACD-006A adapter) |
| Current Draw | Less than 120mA |
| Dimensions | 122(L) x 72(W) x 47(H)mm |
