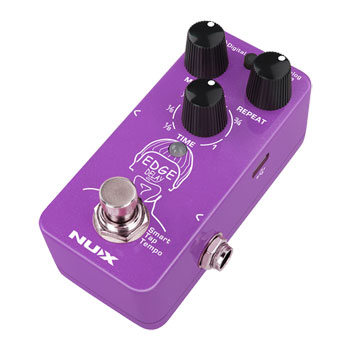

NUX Edge Mini Delay Pedal
NUX - Edge Delay Pedal, 3 Delay Types in a Mini Enclosure, Phi Digital Delay, Analog Delay, Tape Echo
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

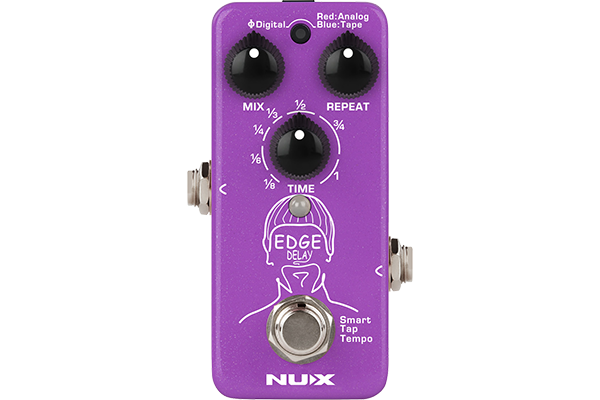

NUX - Edge Delay Pedal
3 Delay Types with Smart TapThe NUX Edge Delay features 3 unique delays, each with detailed control over its sonic character and feel. Clear, studio-quality digital delays. Saturated and fluctuating sounds of tape delay machines. Warm and fuzzy analogue style repeats.
at a glance
• 3 delay types in a mini enclosure
• ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head
• Analog Delay: BBD Warm sound with natural treble decay
• Tape Echo: High-frequency saturation and low-end decay
• Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
• True-bypass or Buffer-bypass (Trails)
• Supports Stereo I/O with TRS Cable
• Low power consumption. (less than 100mA)
• Analogue dry signal for low noise and zero latency
3 Different Delay Types

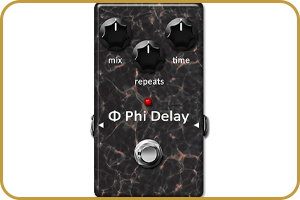

ΦPhi Digital DelayΦPhi Digital Delay is a digital delay with a golden ratio 2nd repeat head. It makes your guitar sounds more musical in nature. Easily tweak the knobs, setup the desired sub-division, engage the smart tap tempo, and you’re ready to go.

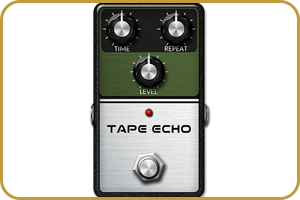

Tape EchoTape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. The Tape Echo emulates the high-frequency saturation and low-end decay of magnetic tape. It’s gently modulated for added richness and color. Tweak the time knob from max to min quickly, and you can get the infinity feedback.

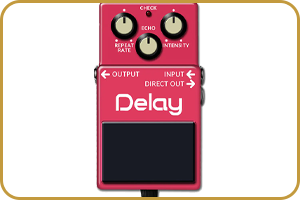

Analog DelayAnalog Delay is based on the vintage BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. Very suitable for scorching ballad solos with romantic atmosphere. Our unique algorithm replicates the physical infinity oscillation feedback while you tweak the time knob from max to min quickly.

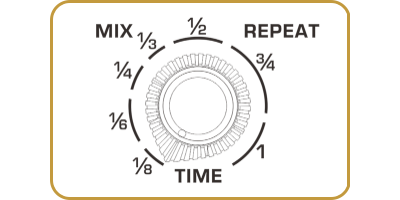

Sub-Division with Smart Tap Tempo
DELAY SUB-DIVISIONS WITH SMART TAP TEMPOSet the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay.

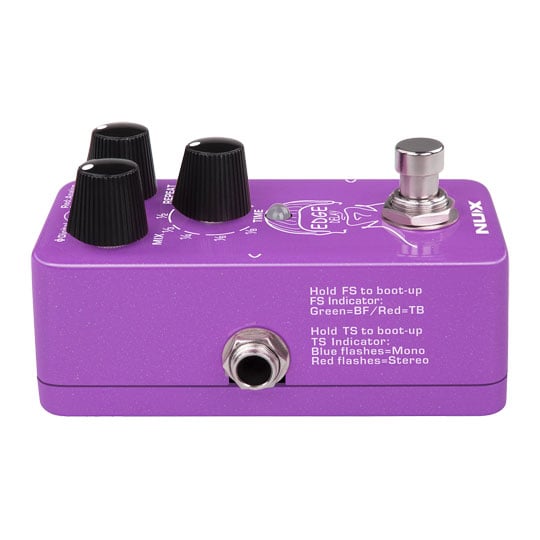

Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)
NUX Edge Delay (NDD-3) Demo by @popintothechemist
The Tech Spec
| Features | Specification | Input Impedance | 1MΩ |
|---|---|
| Output Impedance | 10kΩ |
| Dynamic Range | 103dB |
| DSP Processing | 48KHz/32-bit |
| A/D D/A Sampling Rate | 48KHz/24-bit |

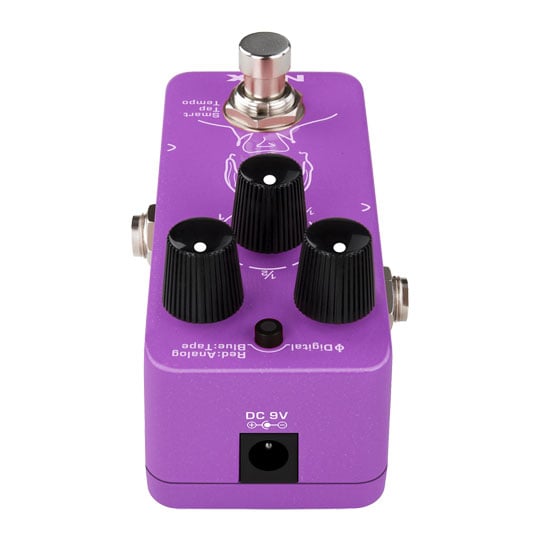

| Power | 9V DC (Negative tip, Optional ACD-006A adapter) |
| Current Draw | Less than 100mA |
| Dimensions | 194(L)x51(W)x53(H)mm |
| Weight | 175g |
