NUX Ace of Tone Dual Overdrive Pedal
NUX Audio - Ace of Tone, Dual Overdrive Guitar Pedal with Fat/Shine Switch, 2 Drive, 2 Level, and 2 Tone Controls
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

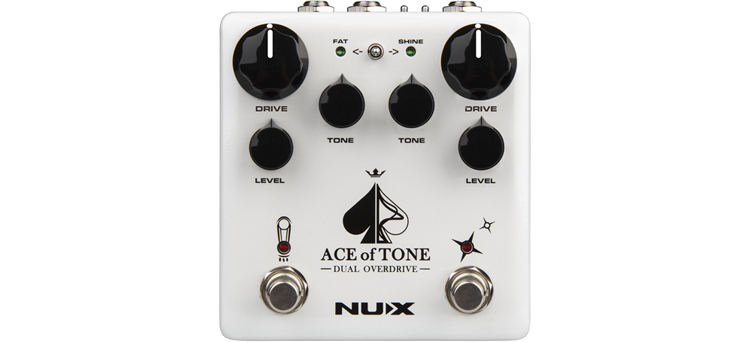

NUX - Ace of Tone Dual Overdrive Pedal
Two iconic overdrive flavours in one compact analogue pedalThe NUX Ace of Tone brings two complementary overdrive circuits together in a single, pedalboard-friendly enclosure, giving you a huge range of gain sounds without sacrificing valuable space. Whether you're after a transparent boost, bluesy breakup or a thicker rock drive, it's designed to let you build your sound exactly the way you want it.
One side delivers the punch and midrange character of the Tubeman circuit, complete with an optional FAT mode that adds extra low-end warmth and body. On the other, the Morning Star circuit offers a more open, transparent overdrive that keeps your guitar's natural voice intact. Activate SHINE mode and you'll introduce extra top-end clarity, making lead lines stand out or helping darker-sounding guitars cut through the mix.
Where the Ace of Tone really earns its place is in the way these two circuits interact. Use either side independently for a dedicated overdrive flavour, or stack them together for richer harmonics, increased sustain and a more dynamic gain structure. A dedicated routing switch lets you decide which circuit comes first, so you can experiment with different textures and response without changing the rest of your pedalboard.

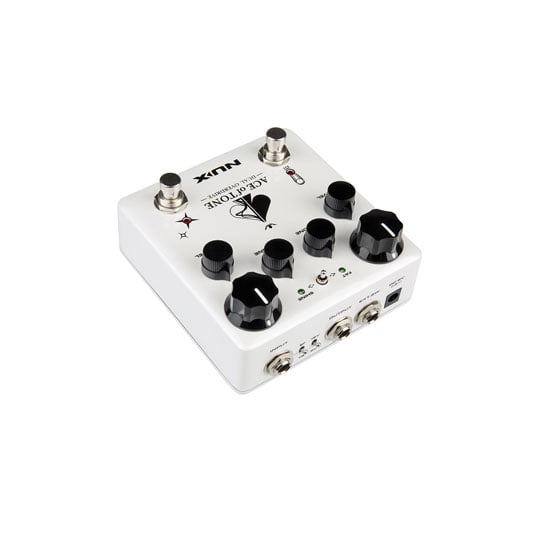

Around the back, you'll also find the choice between true bypass and buffered bypass, making it easy to optimise the pedal for almost any signal chain. There's even the option to switch the internal operating voltage from 9V to 18V, providing greater headroom and a more open feel, particularly useful if you prefer lower-gain settings or play with higher-output pickups.
Built around analogue circuitry and straightforward controls, the NUX Ace of Tone delivers inspiring overdrive sounds that respond naturally to your picking dynamics and your guitar's volume control. From subtle grit to stacked drive tones with plenty of character, it's a versatile addition to almost any rig.
at a glance
• Two independent analogue overdrive circuits in one pedal
• Stackable drives with selectable signal routing
• FAT and SHINE modes for extra tonal flexibility
• Switchable true bypass or buffered bypass
• Internal 9V/18V operation for increased headroom

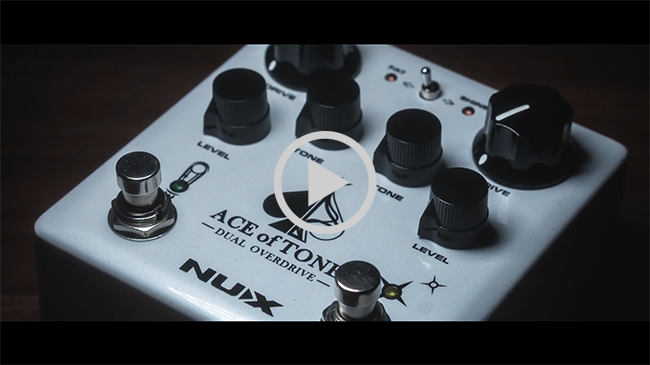

NUX Ace Of Tone Dual Overdrive Pedal Test by Jimmy Lin
The Tech Spec
| Features | Specification | Pedal Type | Dual Overdrive (Tubeman, Morning Star) |
|---|---|
| Analog/Digital | Analog |
| Controls | Knobs: 2 x Drive, 2 x Level, 2 x Tone; Switches: Fat/Shine |
| Number of Footswitch Buttons | 2 |
| EQ | 2 x tone, Fat switch, Shine switch |
| Inputs | 1 x 1/4" |
| Outputs | 1 x 1/4" |
| Other I/O | 1 x 1/4" (external switch) |
| True Bypass | Yes |
| Bypass Switching | Switchable: True bypass, Buffered bypass |
| Power Source | 9V DC (18V DC switchable) power supply (sold separately) |
| Height | 2.28" |
| Width | 4.52" |
| Depth | 4.13" |
| Weight | 0.44 kg |
