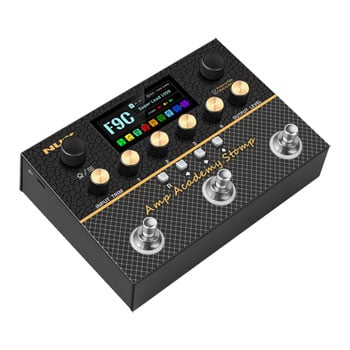

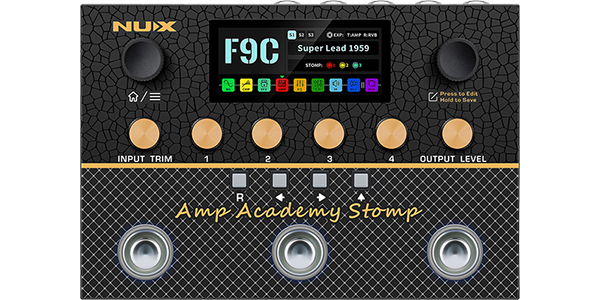

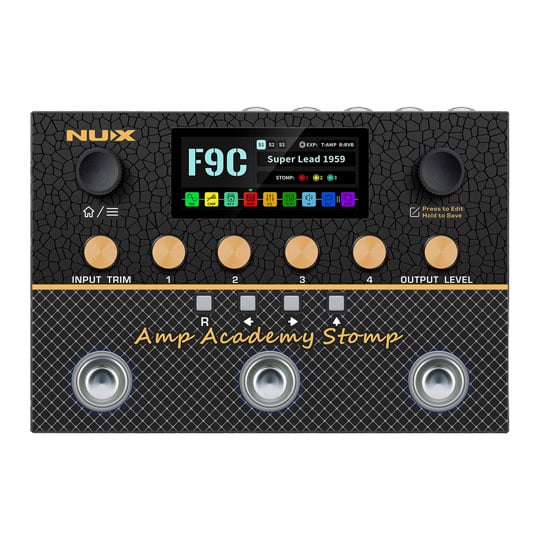

NUX Amp Academy Stomp Pedal

Build Your Dream Amp—Mix, Match & Model Every Component, Right Down to the Tubes.3-footswitch Modelers are an up-and-coming trend in the market. NUX heard your requests, and that’s the main reason for creating the AA Stomp; an end-to-end tone-shaping Amp Simulator, and independent L/R CYBER IR™ Engine, ushering in a milestone evolution for NUX. The Amp Academy Stomp features NUX's iconic TS/AC-4K Amp Modeling (White-box Physical Modeling algorithm), which is twice as complex found in previous versions. This led to designing a new hardware platform with 2 DSPs, one to handle all the effects, and the other to handle the amp modeling algorithm. Now NUX have even split Amp Modeling as separated preamp and power amp simulation. It means you can choose different power tubes to drive the creative sound. Additionally, the Amp Academy Stomp uses premium A/D & D/A converters and analog circuits to achieve a clear sound with low noise levels.

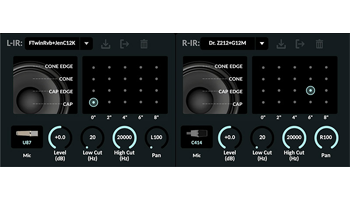

Amazing Features • Stereo CYBER IR™ Engine with dual 1024 samples resolution
• Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm
• World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping.)

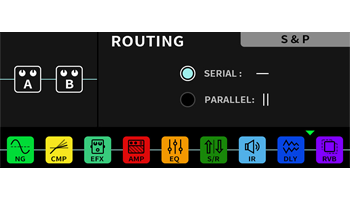

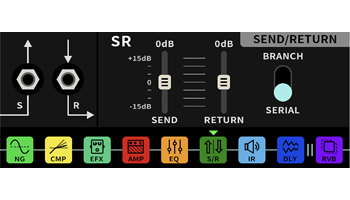

• NG, EFX, AMP, I.R., EQ, S/R; DLY, RVB effect blocks with free/parallel routing order
• 2.86” colour LCD display (960*376) with intuitive operations
• 27 preset slots with 3 scenes, independent L/R 60 IR slots
• Pre/Post phrase loop for distance tone tweaking. (NBT-1 with APP)
• Footswitch setup, Global EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL, Quick Block, Tuner in global setting

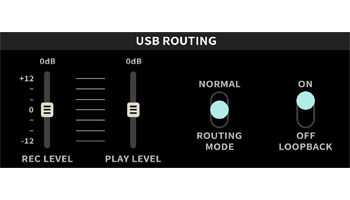

• USB audio interface, firmware update, PC edit software, NBT-1, …etc.

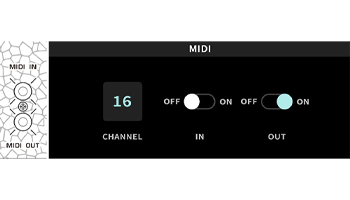

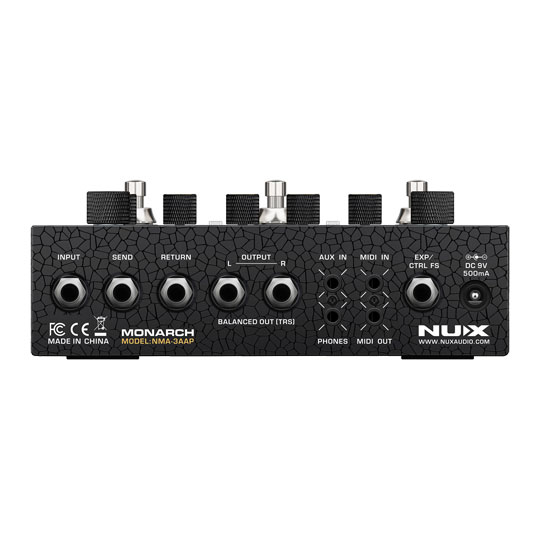

• USB-C, stereo balanced 1/4” outs, phones out for silent practice, 1/8” MIDI I/O, EXP out with additional NMP-2 Lite
• Great Dynamic Range: 111dB
• Ultra-low latency: 2ms
• Aluminum extrusion chassis
• Monarch Editor: User-friendly interface for easy sound customization, parameter tweaking, and patch management

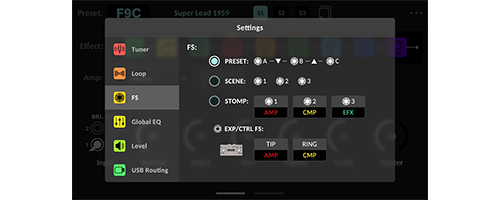

seamless switchingYou can assign the foot switches in Global Settings. The concepts of PRESET and SCENE are as follows: PRESET = A complete effects signal chain. SCENE = A snapshot of a specific effects signal chain, including the switching of effects modules and the setting changes of parameters. So, SCENE can be imagined as the effect switches and tone changes you may need in a song. For example, the main song is S1, the chorus is S2, and the interlude is S3.

The advantage of doing this is that your naming is in a PRESET, and since the effect signal chain is fixed, there will be lower switching noise and delay when the effector switches SCENE. Another secret is to select the same model to switch the Delay on and off when setting your SCENE, which can achieve an effect “Tail”.

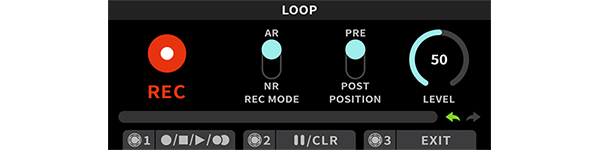

PRE/POST positionThe AAS also includes a 30 second stereo phrase looper. This powerful little looper can be used in either Auto Record or Normal Record modes. Additionally, it can be set to the pre or post position in the signal path. This is also incredibly useful live with the included NBT-1 Bluetooth Module and accompanying iOS/Android App. Set up a loop in Pre Mode, let the loop play back and use the App to adjust your tone from anywhere in your live venue for the best possible tone.

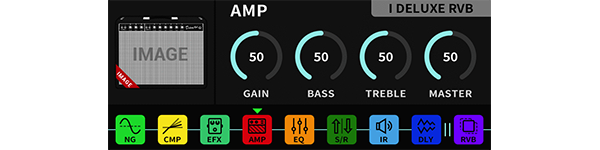

Modeler & ProfilerAmp Academy Stomp gives you the freedom to leave your heavy amp at home — yet keeps the tone alive under your feet. Tweak gain, EQ, cab IR, boost, noise gate — craft your dream rig in minutes. And now, NUX brings even more tone to the game with our black-box technology: Image! With our Image technology, you can load NAM, our single-layer Image Capture, into the Image Loader (into the AMP block).

As a bonus, we are releasing three complete, multi-layer Deep Image amp models for you. I Deluxe Rvb (based on the ’65 black panel American clean amp), I Classic A30 (based on the British diamond chime amp), I Fireman (based on the famous David modified British crunch amp).
