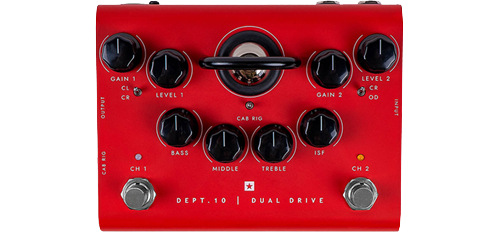

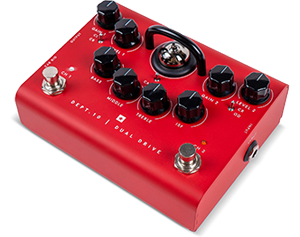

Blackstar - DEPT 10 Dual Drive Pedal
Blackstar - DEPT 10 Dual Drive, ECC83 Triode Valve, Patented ISF Tone Stack EQ, XLR D.I Output
Email me when the availability or price changes
Valve Powered Drive Pedal
Blackstar - Dept 10 Dual Drive

Dept. 10 – the world’s most advanced valve pedalsIntroducing Dept 10, Blackstar’s expert R&D team behind the company’s innovative design and game changing range of amplification and pedals. This team of engineers are all musicians themselves and are forever researching new and exciting ideas to help create the perfect tone.
Dept 10 have recently developed the worlds most advanced valve pedals. Each of the Dept 10 pedals all use an ECC83 triode valve at the heart, running at over 200V internally which enables these pedals to deliver organic tone, dynamics and authentic breakup.
Innovative design, premium components and Blackstar’s advanced Cab Rig D.I. technology, create the ultimate valve pedals.
DEPT 10 - dual driveNot only the best valve drive pedal you’ll ever own – but also a world-beating valve recording preamp too! Featuring 3 crunch/overdrive voicings, alongside the clean channel, Blackstar’s patented ISF control, low latency USB, XLR out and Dept 10’s proprietary Cab Rig simulator technology.
at a glance
• ECC83 Triode Valve
• Patented ISF Tone Stack EQ
• USB Recording Output
• XLR D.I Output
• FX-Loop
Featuring 'Cab Rig' Speaker Simulation

ECC83 triode valve
Dual Drive features Cab Rig, Blackstar’s next-gen DSP speaker simulation technology which replicated the sound and feel of a miked-up cab in staggering detail. Deep-dive via the included free software and capture the insane tones via USB/XLR out or headphones.
Alongside all of this, there’s an integrated effects loop which allows for quick and easy integration with pedalboard which when used with the XLR DI, results in an incredible sounding and versatile back up amp!
Hear The Dept. 10 Valve Pedals | Dept. 10 | Blackstar

The Tech Spec
Features | Specification | Power | 9V DC |
---|---|
Maximum Current Draw | 500mA |
Valve | 1 x ECC83 / 12AX7 |
Input Impedance | 1MΩ |
Output Impedance | < 1KΩ |
Weight (kg) | 0.63 |
Dimensions (mm) | 157(W) x 76(H) x 117(D) |
DC Adaptor | PSU-500 supplied (9VDC 500mA tip negative) |
Dimensions | 3.2 x 5.1 x 4.7" / 8.2 x 12.9 x 12 cm |
