Noctua NH-U9 DX-4677 Intel LGA4677 Single-Tower CPU Cooler

Noctua NH-U9 DX-4677 Intel Xeon LGA4677 CPU Cooler

Noctua's DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U9 DX-4677 features a larger, custom-designed contact surface for LGA4677 platforms. Based on the proven, 92mm size NH-U9 heatsink and equipped with two of Noctua's award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications.
The NH-U9's direction of airflow is perpendicular to the long axis of the LGA4677 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go parallel to the long axis of the socket, please choose the NH-D9 DX-4677 4U. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U9 DX-4677 forms a complete premium quality package for quietly cooling LGA4677 based Xeon workstations and servers.

DX series for Intel Xeon

First introduced in 2008, Noctua's DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run-in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

Customised for LGA4677

The new DX-4677-line coolers are dedicated, customised solutions for Intel's professional LGA4677 platform, which makes them an ideal fit for both 4th generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and w9, w7, w5 or w3 series Xeon processors for workstations.

Enlarged Contact Surface

At 70x56mm, the heatsinks copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel's LGA4677-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heat pipes and on to the cooling fins.

SecuFirm2™ Mounting System with Standard Intel Parts

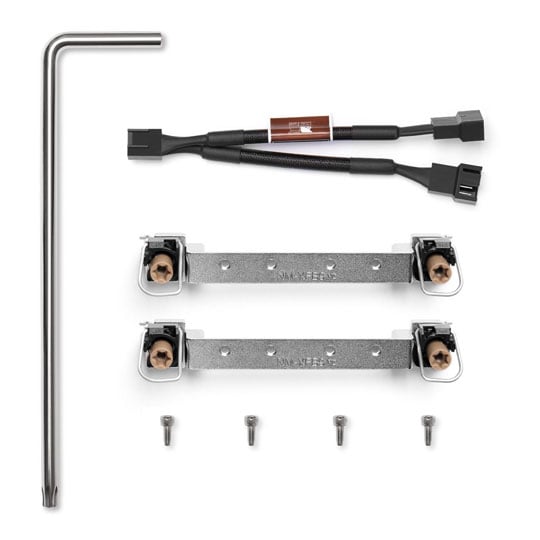

Integrating standard Intel parts such as the anti-tilt mechanism, Torx® T30 PEEK nuts and the CPU-specific carrier frames (included with boxed retail CPUs and available separately for tray CPUs), the cooler's mounting system is fully compliant with Intel's installation guidelines and provides a familiar mounting procedure for experienced LGA4677 users. A Torx® T30 mounting tool is included.

Compatible with E1A, E1B and E1C carrier frames

LGA4677 processors require plastic CPU carrier frames for installation, which are included with retail boxed CPUs and available separately via Intel sales partners for tray CPUs. The SecuFirm2™ mounting for LGA4677 is compatible with all types of carriers (E1A, E1B, E1C).

Compact 92mm Size for Best Compatibility

Thanks to a total width of only 95mm, the NH-U9 DX-4677 provides 100% PCIe clearance and never overhangs the top PCIe x16 slot. At the same time, its height of only 125mm allows it to fit smaller cases and most 4U size rack-mount enclosures.

Airflow Perpendicular to the Long Axis of the Socket

The NH-U9's direction of airflow is perpendicular to the long axis of the LGA4677 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go parallel to the long axis of the socket, please choose the NH-D9 DX-4677 4U

Dual NF-A9 HS-PWM Fans

The NH-U9 DX-4677 is equipped with two of Noctua's award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4677.

PWM Support And Y-Cable

The NF-A12x25 premium fans supplied with the NH-U12S DX-4677 support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.

Pre-Applied NT-H1 Thermal Compound

Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!

6-Year Manufacturer's Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U9 DX-4677 heatsink is built to last, and like all Noctua fans, the supplied NF-A9 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer's warranty.

• Compact 92mm size (125mm height) for excellent PCIe compatibility and 4U support, high cooling performance thanks to 6 heatpipes, single-tower design and two NF-A9 premium fans, ideal for quiet 4U servers.
• Supports LGA4677 socket for 4th generation Intel Xeon Scalable (Platinum, Gold, Silver or Bronze) and w9, w7, w5 or w3 series processors.
• CPU carrier frame required (included with boxed retail CPUs and available separately for tray CPUs).
• Two award-winning NF-A9 fans (push/pull dual fan configuration), supporting PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary.
• Pre-applied NT-H1 thermal compound and easy, straightforward installation with included Torx T30 mounting tool.
