Scan code: LN123865 Manufacturer code: NH-U12S-REDUX

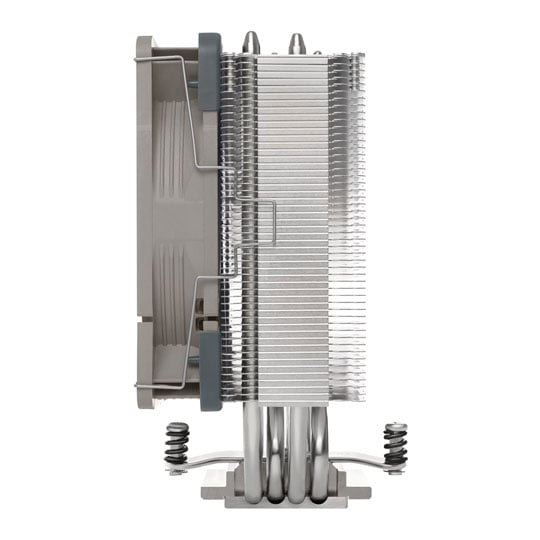

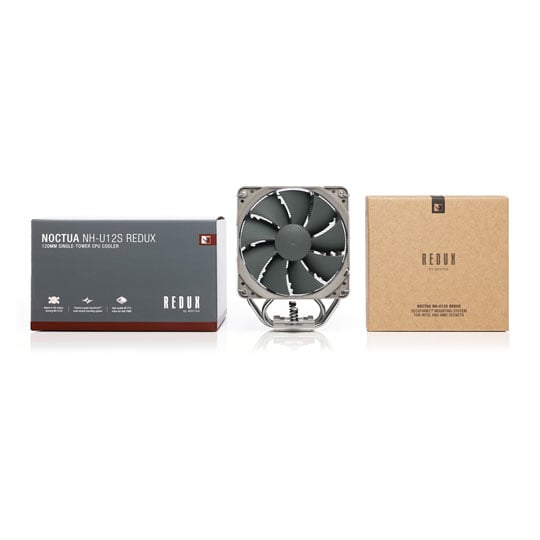

Noctua NH-U12S REDUX Intel/AMD CPU Air Cooler

Noctua NH-U12S REDUX CPU Cooler, Intel/AMD, 120mm Fan, 450-1700RPM, 70.7CFM Airflow, 25.1dB, 4-pin PWM, Grey

Thumbnail 1 : Noctua NH-U12S REDUX Intel/AMD CPU Air Cooler Thumbnail 2 : Noctua NH-U12S REDUX Intel/AMD CPU Air Cooler Thumbnail 3 : Noctua NH-U12S REDUX Intel/AMD CPU Air Cooler Thumbnail 4 : Noctua NH-U12S REDUX Intel/AMD CPU Air Cooler
Scan code: LN123865 Manufacturer code: NH-U12S-REDUX
Order now and get it tomorrow, Thu 19th May
£49.99
Get it Tomorrow, 19 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Based on the Award-Winning NH-U12S

The NH-U12S redux is based on Noctua's proven, premium-grade NH-U12S, which is widely recognised as one of the best slim 120mm single-tower coolers on the market. Having received more than 200 awards and recommendations from international hardware websites and magazines, the NH-U12S has convinced tens of thousands of customers around the globe.


Streamlined Redux Edition

Following the idea of Noctua's redux line, the NH-U12S redux takes the proven concept of the original NH-U12S and reduces it to its essential core: a quiet, quality-made 120mm cooler with streamlined accessories that is highly compatible and easy to install.


Classic 120mm Tower Size for Excellent Case and PCIe Compatibility

Standing 158mm tall, the NH-U12S redux is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.


100% RAM Compatibility

Thanks to its slim design with only 45mm fin depth, the NH-U12S redux will not overhang the RAM slots on any current platform. This gives the user full access to the memory modules and guarantees 100% compatibility with modules that feature tall heat-spreaders or RGB lighting.


Proven NF-P12 fan with PWM

Specifically designed for pressure-demanding applications such as on heatsinks, the classic NF-P12 is a long-standing favourite among quiet cooling enthusiasts. The higher-speed 1700rpm redux line version supports PWM for automatic speed control, which allows it to run near silent most of the time and provide massive performance when necessary.


Precision-Machined Copper Base for Optimal Contact and Heat Distribution

A minimally convex copper base is essential in order to guarantee optimal contact quality on today's CPUs as well as even heat distribution across all heatpipes. While many coolers omit this key part in order to cut costs, the NH-U12S redux uses the same type of copper base as the original NH-U12S, precision-machined for ideal contact quality.


SecuFirm2 Multi-Socket Mounting System

Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA1200 and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, the SecuFirm2 mounting included with the NH-U12S redux is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.


Free Mounting Upgrade Policy

Just like with Noctua's more expensive coolers, mounting upgrade kits for the NH-U12S redux will be provided free of charge if technically possible, making it a safe long-term investment. Customers can also order kits for older sockets, such as LGA775 or LGA1366, free of charge on Noctua's website.


Pre-Applied NT-H1 Thermal Compound

Chosen again and again by overclockers and enthusiast users worldwide, Noctua's NT-H1 has established itself as a benchmark for premium-quality thermal compounds. The NH-U12S redux comes with a thin layer of NT-H1 pre-applied to the heatsink base, which makes it even easier to install and eliminates any guesswork as to how much paste should be used.


6-year Manufacturer's Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U12S redux cuts no corners and, like all Noctua fans, the supplied NF-P12 redux features an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer's warranty.

Features


• Noctua’s proven, premium-grade NH-U12S heatsink.
• Streamlined Redux version.
• 100% RAM compatibility.
• Excellent NF-P12 PWM fan.
• Pre-applied NT-H1 thermal compound.
• Compatible is almost all Intel and AMD desktop sockets.

Specifications
Cooler Specifications
Edition NH-U12S Redux
Cooler Form Factor Compact Single Tower
Heatpipes 4
Cooler Features
  • Aluminium Fins
  • Low-Noise Cable
  • Nickel-Plated Copper Base
  • Nickel-Plated Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1200
  • 2011
  • 2011-3 (Square ILM)
  • 2066
  • AM4
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 120mm
Fan Edition Noctua NF-F12 PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Grey
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1700 rpm
Max. Fan Airflow 70.7 CFM
Max. Air Pressure
Max. Sound Level 25.1 dBA
Materials
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material) NT-H1 High-Grade Thermal Compound (Included)
Dimensions & Weight
Heatsink/Radiator Dimensions 125 x 158 x45 mm (WxHxD)
Total Dimensions 125 x 158 x 71 mm (WxHxD)
Weight 755 g
Additional Information
Scan Code LN123865
Model Number NH-U12S-REDUX
GTIN 9010018000207
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
