Noctua NH-U12S Intel LGA4677 Single-Tower CPU Cooler
Noctua NH-U12S DX-4677 Single-Tower CPU Cooler, 10 Heatpipes, 2x 120mm Fans, Intel Xeon LGA4677
Email me when the availability or price changes
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U12S DX-4677 features a larger, custom-designed contact surface for LGA4677 platforms. Based on the proven, 120mm size NH-U12S heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A12x25 120mm fans, it provides an excellent balance of performance, compatibility and quietness of operation. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U12S DX-4677 forms a complete premium quality package for quietly cooling LGA4677 based Xeon workstations and servers.
DX series for Intel Xeon
First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run-in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).
Customised for LGA4677
The new DX-4677-line coolers are dedicated, customised solutions for Intel’s professional LGA4677 platform, which makes them an ideal fit for both 4th generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and w9, w7, w5 or w3 series Xeon processors for workstations.
Enlarged Contact Surface
At 70x56mm, the heatsinks copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4677-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heat pipes and on to the cooling fins.
SecuFirm2™ Mounting System with Standard Intel Parts

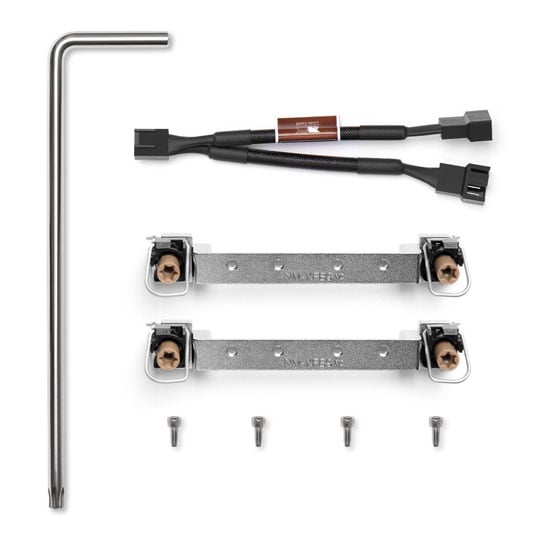

Integrating standard Intel parts such as the anti-tilt mechanism, Torx® T30 PEEK nuts and the CPU-specific carrier frames (included with boxed retail CPUs and available separately for tray CPUs), the cooler’s mounting system is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4677 users. A Torx® T30 mounting tool is included.
Compatible with E1A, E1B and E1C carrier frames
LGA4677 processors require plastic CPU carrier frames for installation, which are included with retail boxed CPUs and available separately via Intel sales partners for tray CPUs. The SecuFirm2™ mounting for LGA4677 is compatible with all types of carriers (E1A, E1B, E1C).
120mm Size for Excellent Performance And Compatibility
With five heat pipes and two next-generation NF-A12x25 120mm fans, the NH-U12S DX-4677 achieves outstanding cooling performance while maintaining excellent compatibility: At 158mm height and 125mm width, it is short enough to fit most modern tower cases, can fit many dual socket motherboards with east-to-west socket orientation and stays clear of the top PCIe slot on many motherboards that have the socket in north-to-south orientation.
Dual NF-A12x25 PWM Fans
The NH-U12S DX-4677 is equipped with two of Noctua’s award-winning, next-generation NF-A12x25 120mm fans. This exquisite, state-of-the art push/pull dual fan configuration allows it to achieve a remarkable level of quiet cooling performance despite its relatively compact size.
PWM Support And Y-Cable
The NF-A12x25 premium fans supplied with the NH-U12S DX-4677 support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.
Pre-Applied NT-H1 Thermal Compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!
6-Year Manufacturer’s Warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U12S DX-4677 heatsink is built to last, and like all Noctua fans, the supplied NF-A12x25 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.
• 5 heat pipes and premium grade 120mm fans for excellent cooling efficiency, slim 120mm size for high compatibility, ideal for quiet workstations in noise sensitive applications (A/V, engineering, etc.).
• Supports LGA4677 socket for 4th generation Intel Xeon Scalable (Platinum, Gold, Silver or Bronze) and w9, w7, w5 or w3 series processors.
• CPU carrier frame required (included with boxed retail CPUs and available separately for tray CPUs).
• Two state-of-the-art NF-A12x25 fans (push/pull dual fan configuration), supporting PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary.
• Pre-applied NT-H1 thermal compound and easy, straightforward installation with included Torx T30 mounting tool.
