Scan code: LN123862 Manufacturer code: NH-P1

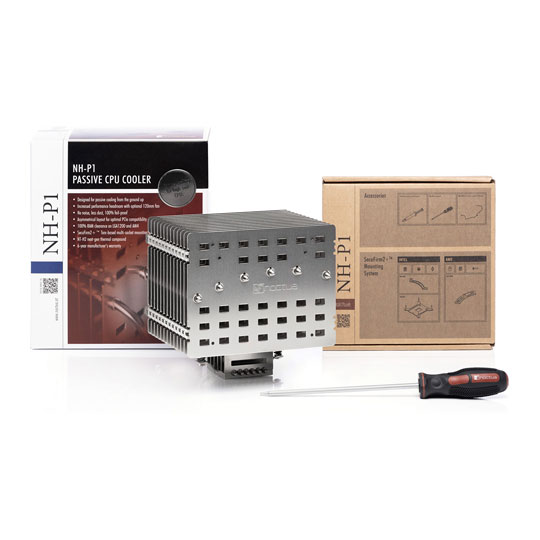

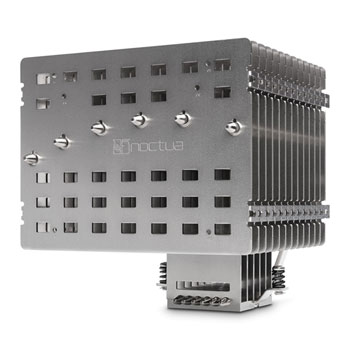

Noctua NH-P1 Intel/AMD Passive CPU Cooler

Noctua NH-P1 Passive CPU Cooler, Intel/AMD, Aluminium Fins, Copper Base and Heatpipes

Thumbnail 1 : Noctua NH-P1 Intel/AMD Passive CPU Cooler Thumbnail 2 : Noctua NH-P1 Intel/AMD Passive CPU Cooler Thumbnail 3 : Noctua NH-P1 Intel/AMD Passive CPU Cooler Thumbnail 4 : Noctua NH-P1 Intel/AMD Passive CPU Cooler
Scan code: LN123862 Manufacturer code: NH-P1
£109.99Item currently awaiting an ETA
Pre order
From £9.97 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £9.97
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £119.58
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Designed for Passive Cooling from the Ground Up

The NH-P1 isn't just a regular heatsink without a fan: it has been designed for fanless operation from the ground up, featuring much thicker, much more widely spaced fins in order to achieve both the mass and the minimal airflow resistance that are required in order to excel in natural convection cooling.


Fanless Cooling for High-End CPUs

In fully optimised fanless systems, the NH-P1 is capable of cooling high-end CPUs with low to moderate heat dissipation using natural convection. This makes it ideal for powerful builds that have no moving parts and run absolutely silent.


Increased Performance Headroom with Extra Fan

The NH-P1 can be fitted with an extra 120mm fan such as the near inaudible NF-A12x25 LS-PWM in order to increase its maximum dissipation capacity significantly, making it ideal for short spikes of higher heat loads or semi-passive systems that only start their fans when necessary!


No Noise, Less Dust, 100% Fail-Proof

Fanless cooling doesn't only have the advantage of being completely silent: if you're relying on natural convection only and don't have case fans pushing air through a case, less dust will accumulate in filters or inside the system. Last but not least, with no moving parts such as fans or pumps that could possibly fail, the NH-P1 is as fail-proof as it can be.


Asymmetrical Layout for Optimal PCIe Compatibility

As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-P1 is offset towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current micro-ATX and ATX.


100% RAM Clearance on LGA1200 and AM4

Due to its asymmetric design, the NH-P1 does not overhang the RAM slots on Intel LGA1200, LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, it overhangs the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 45mm in height.


SecuFirm2+ Torx-Based Multi-Socket Mounting System

Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and easy installation. Torx-based, the professional SecuFirm2+ version with its included screwdriver provides even better handling and durability. Socket support includes Intel LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1.


Compatibility with Past and Future Sockets

Thanks to Noctua's SecuFirm ecosystem, the NH-P1 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-P1 a safe long-term investment.


NT-H2 Next-Gen Thermal Compound

In high-end passive cooling, every degree counts. This is why the NH-P1 includes a tube of Noctua's next-generation NT-H2 thermal compound that provides even better performance than the award-winning NT-H1, allowing you to achieve the best possible passive cooling results.

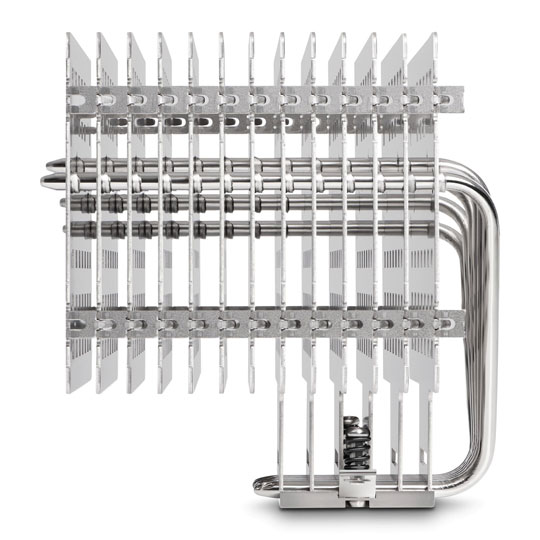

Soldered Interface Between Heatpipes and Fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-P1's fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn't deteriorate even after many years of usage.


6-year Manufacturer's Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua CPU coolers, the NH-P1 is built to the highest standards and comes with a full 6-year manufacturer's warranty.

Features


• Designed for passive cooling from the ground up.
• No noise, less dust, 100% fail-proof.
• 100% RAM clearance on LGA1200 and AM4.
• NT-H2 next-gen thermal compound.

Specifications
Cooler Specifications
Edition NH-P1
Cooler Form Factor
Heatpipes 6
Cooler Features
  • Aluminium Fins
  • Copper Base
  • Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1200
  • 2011-3
  • 2066
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting
Fan/Pump Connectors
Max. Fan Speed N/A
Max. Fan Airflow
Max. Air Pressure
Max. Sound Level
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 154 x 158 x 152 mm (WxHxD)
Total Dimensions
Weight 1180 g
Additional Information
Scan Code LN123862
Model Number NH-P1
GTIN 9010018000269
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
