Noctua Low Profile NH-L9i-17xx Intel CPU Cooler

Noctua NH-L9i-17xx Low Profile CPU Cooler, 1x 92mm PWM Fan, Quiet, Aluminium Fins, Copper Base/Heatpipes, Intel LGA1700

Thumbnail 1 : Noctua Low Profile NH-L9i-17xx Intel CPU Cooler Thumbnail 2 : Noctua Low Profile NH-L9i-17xx Intel CPU Cooler
Scan code: LN123864 Manufacturer code: NH-L9I-17XX
Order now and get it tomorrow, Mon 23rd May
£44.99
Get it Tomorrow, 23 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

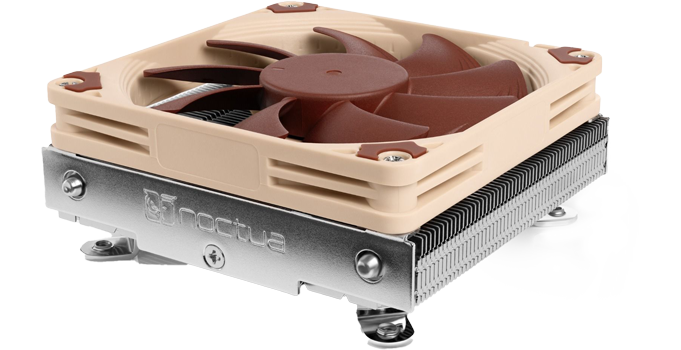

Noctua NH-L9i-17XX Low Profile CPU Cooler

NOCTUA NH L9I

LGA 1700 Specific low profile CPU Cooler The NH-L9i-17xx is the latest, LGA1700-specific revision of Noctua’s award-winning NH-L9i low-profile CPU cooler for Intel-LGA17xx based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9i is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the LGA1700 (LGA17xx family) socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9i-17xx runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i-17xx combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with Intel LGA17xx family CPUs.

An Impressive Feature-Set

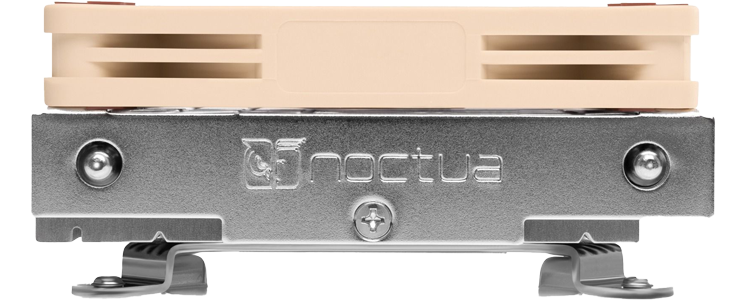

37mm Low Profile

37mm low profileDue to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.

comaptible with mini-ITX pcie

100% compatibility on mini-ITXSome mini-ITX motherboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95mm sized NH-L9i provides full compatibility with PCIe cards.

4K Recording
Premium PWM Fan

NF-A9x14 PWM premium fanThe highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.

Easy Access

Easy access to near-socket connectorsMany low-profile coolers use larger fans or heatsinks in order to achieve sufficient performance, but by protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX motherboards. Thanks to its compact footprint, the NH-L9i-17xx provides easy access to all connectors and components.

Specifications
Cooler Specifications
Edition NH-L9i-17xx
Cooler Form Factor Low-Profile Single Tower
Heatpipes
Cooler Features
  • Aluminium Fins
  • Copper Base
  • Copper Heatpipes
Socket Compatibility 1700
Max. TDP 65W
Fan Specifications
Included Fan Configuration 1 x 92mm
Fan Edition
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Black
LED Lighting
Fan/Pump Connectors
Max. Fan Speed 1800 rpm
Max. Fan Airflow 33.8 CFM
Max. Air Pressure
Max. Sound Level 23.6 dBA
Materials
Cooler Materials
Included TIM (Thermal Interface Material) Included
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 95 x 37 x 95 mm (WxHxD)
Weight 380 g
Additional Information
Scan Code LN123864
Model Number NH-L9I-17XX
GTIN 9010018000276
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
